Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

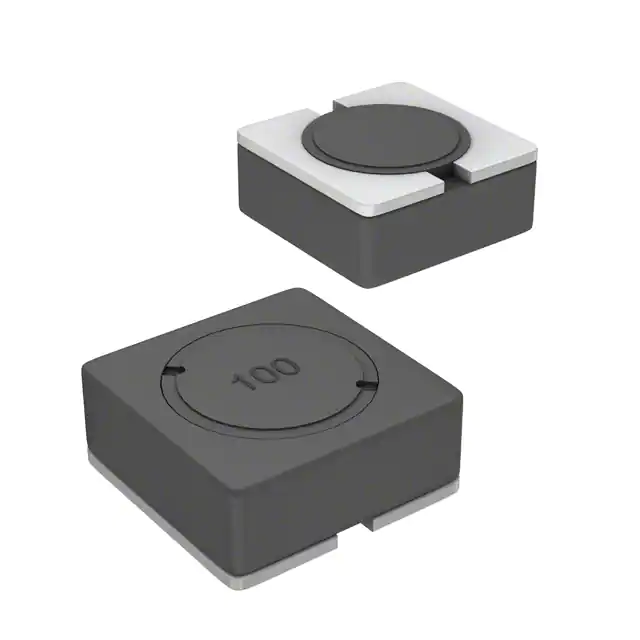

SRR6028-100YFIXED IND 10UH 2A 65 MOHM SMD |
175,933 |
|
Datasheet |
 |
SRR6028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2 A | 1.7A | Shielded | 65mOhm Max | 11 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
SRR7032-220MFIXED IND 22UH 960MA 135MOHM SMD |
108,329 |
|
Datasheet |
|
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 960 mA | 1.05A | Shielded | 135mOhm Max | 20 @ 2.52MHz | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
0624CDMCCDS-4R7MCFIXED IND 4.7UH 4.8A 54MOHM SMD |
113,851 |
|
Datasheet |
|
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 4.8 A | 7.6A | Shielded | 54mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
DR73-331-RFIXED IND 330UH 420MA 1.59OHM SM |
144,267 |
|
Datasheet |
|
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | 440mA | Shielded | 1.59Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR74-6R8-RFIXED IND 6.8UH 2.6A 41.8MOHM SM |
179,781 |
|
Datasheet |
|
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.6 A | 3.67A | Shielded | 41.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
SRR7032-221MFIXED IND 220UH 300MA 1.3OHM SMD |
166,102 |
|
Datasheet |
|
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 300 mA | 320mA | Shielded | 1.3Ohm Max | 47 @ 796kHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
SRR7032-101MFIXED IND 100UH 450MA 540MOHM SM |
191,170 |
|
Datasheet |
|
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 450 mA | 500mA | Shielded | 540mOhm Max | 28 @ 796kHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
1227AS-H-1R0N=P2FIXED IND 1UH 3.7A 29 MOHM SMD |
157,542 |
|
Datasheet |
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.7 A | 2.3A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.071" (1.80mm) |
|
SRR4028-101YFIXED IND 100UH 510MA 600MOHM SM |
114,201 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 510 mA | 300mA | Shielded | 600mOhm Max | 8.78 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-221YFIXED IND 220UH 340MA 1.25OHM SM |
198,381 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 340 mA | 200mA | Shielded | 1.25Ohm Max | 11.3 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-330YFIXED IND 33UH 820MA 230MOHM SMD |
149,300 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 820 mA | 580mA | Shielded | 230mOhm Max | 9.7 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-3R3YFIXED IND 3.3UH 2.15A 35MOHM SMD |
151,358 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.15 A | 1.65A | Shielded | 35mOhm Max | 7.72 @ 7.96MHz | 76MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-561YFIXED IND 560UH 220MA 3 OHM SMD |
108,887 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±30% | 220 mA | 150mA | Shielded | 3Ohm Max | 16.46 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

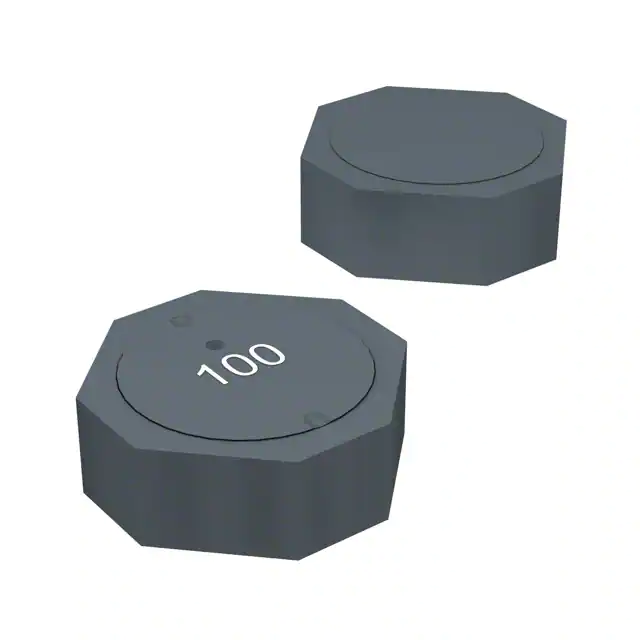

SRU5018-100YFIXED IND 10UH 1.25A 65 MOHM SMD |
190,366 |
|
Datasheet |
|
SRU5018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.25 A | 1.05A | Shielded | 65mOhm | 12 @ 2.52MHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SRR4028-2R2YFIXED IND 2.2UH 2.5A 28 MOHM SMD |
125,164 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.5 A | 2.05A | Shielded | 28mOhm Max | 9.24 @ 7.96MHz | 111MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SRR4018-150YFIXED IND 15UH 1.03A 220MOHM SMD |
154,726 |
|
Datasheet |
|
SRR4018 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.03 A | 820mA | Shielded | 220mOhm Max | 8 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
SRR4028-331YFIXED IND 330UH 300MA 1.7OHM SMD |
198,139 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 300 mA | 170mA | Shielded | 1.7Ohm Max | 16.48 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
LQW03AW2N2C00DFIXED IND 2.2NH 400MA 160MOHM SM |
126,512 |
|
Datasheet |
|
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 nH | ±0.2nH | 400 mA | - | Unshielded | 160mOhm Max | 33 @ 900MHz | 19GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
SRR4028-100YFIXED IND 10UH 1.19A 110MOHM SMD |
138,146 |
|
Datasheet |
|
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.19 A | 1A | Shielded | 110mOhm Max | 11.26 @ 2.52MHz | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
LQW03AW3N9C00DFIXED IND 3.9NH 650MA 70MOHM SMD |
111,195 |
|
Datasheet |
|
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.9 nH | ±0.2nH | 650 mA | - | Unshielded | 70mOhm Max | 48 @ 900MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
