High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARA210A12RELAY RF DPDT 1A 12V |
31,436 |
|
Datasheet |
 |
ARA | Tube | Active | Latching, Single Coil | 5.8 mA | 12VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 9 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
ARE13A4HRELAY RF SPDT 500MA 4.5V |
28,071 |
|
Datasheet |
|
ARE | Tube | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

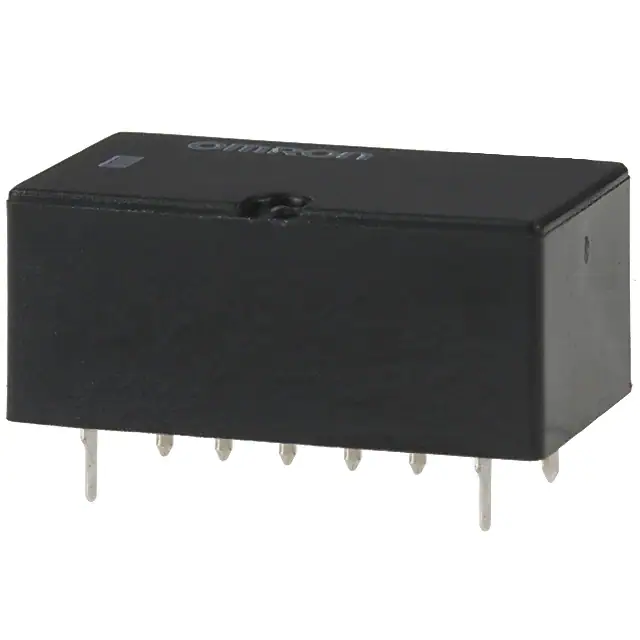

G6Y-1 DC4.5RELAY RF SPDT 10MA 4.5V |
36,046 |
|
Datasheet |
|
G6Y | Bulk | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Y-1 DC9RELAY RF SPDT 10MA 9V |
46,017 |
|
Datasheet |
|
G6Y | Bulk | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Y-1 DC5RELAY RF SPDT 10MA 5V |
31,946 |
|
Datasheet |
|
G6Y | Bulk | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Y-1 DC12RELAY RF SPDT 10MA 12V |
11,679 |
|
Datasheet |
|
G6Y | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Y-1 DC24RELAY RF SPDT 10MA 24V |
32,561 |
|
Datasheet |
|
G6Y | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
9270-24-00TRRELAY RF SPST-NO 500MA 24V |
37,767 |
|
Datasheet |
|
9270 | Tape & Reel (TR) | Obsolete | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 VDC | 2 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
G6Z-1F-TR DC3RELAY RF SPDT 10MA 3V |
41,151 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1F-TR DC5RELAY RF SPDT 10MA 5V |
42,454 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE-TR DC12RELAY RF SPDT 10MA 12V |
38,817 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1F-A-TR DC4.5RELAY RF SPDT 10MA 4.5V |
16,722 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1F-TR DC12RELAY RF SPDT 10MA 12V |
37,163 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
9002-12-11RELAY RF SPST-NO 500MA 12V |
45,645 |
|
Datasheet |
|
9000 | Tube | Active | Non Latching | 16 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | Diode, Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
G6Z-1FE-A-TR DC5RELAY RF SPDT 10MA 5V |
26,736 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE-A-TR DC12RELAY RF SPDT 10MA 12V |
26,747 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
9402-12-20TRRELAY RF SPST-NO 500MA 12V |
43,527 |
|
Datasheet |
|
9400 | Tape & Reel (TR) | Obsolete | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
G6ZK-1F-A-TR DC4.5RELAY RF SPDT 10MA 4.5V |
47,393 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Latching, Dual Coil | 80 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZK-1F-TR DC4.5RELAY RF SPDT 10MA 4.5V |
16,382 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Latching, Dual Coil | 80 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZK-1F-TR DC5RELAY RF SPDT 10MA 5V |
49,735 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Latching, Dual Coil | 72 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
