High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE1003RELAY RF SPDT 500MA 3V |
29,526 |
|
Datasheet |
 |
ARE | Bulk | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|

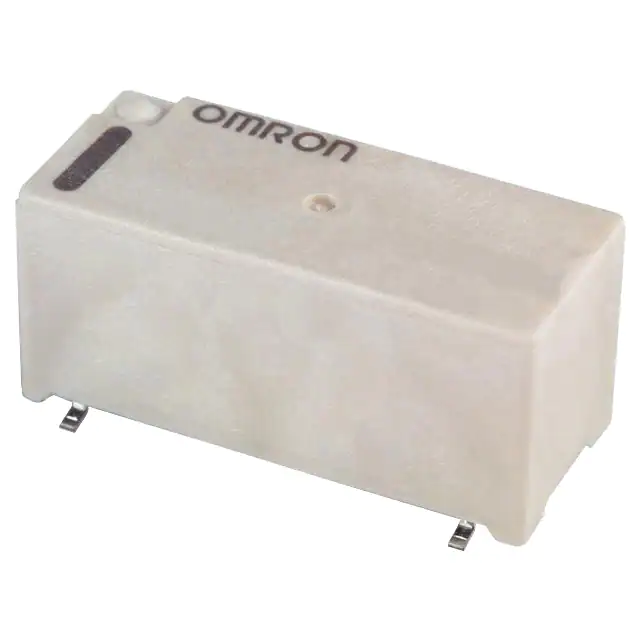

G6Z-1F-A-TR DC12RELAY RF SPDT 10MA 12V |
28,428 |
|
Datasheet |
|
G6Z | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

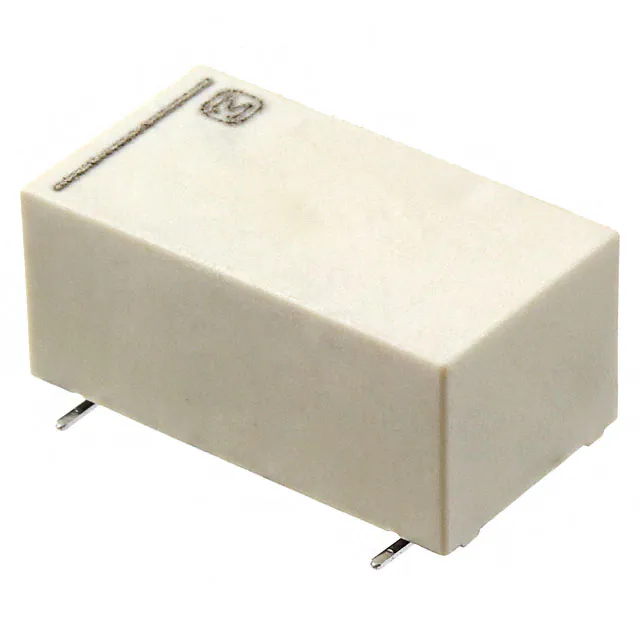

ARE10A4HRELAY RF SPDT 500MA 4.5V |
43,559 |
|
Datasheet |
|
ARE | Tube | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
9290-05-20RELAY RF SPST-NO 500MA 5V |
42,511 |
|
Datasheet |
|
9290 | Bulk | Active | Non Latching | 31.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9202-12-20RELAY RF SPST-NO 500MA 12V |
31,877 |
|
Datasheet |
|
9200 | Tube | Active | Non Latching | 18.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9202-12-20TRRELAY RF SPST-NO 500MA 12V |
21,852 |
|
Datasheet |
|
9200 | Tape & Reel (TR) | Active | Non Latching | 18.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
ARS1103RELAY RF SPDT 500MA 3V |
43,631 |
|
Datasheet |
|
ARS | Tape & Reel (TR) | Active | Latching, Single Coil | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
9270-05-20RELAY RF SPST-NO 500MA 5V |
22,595 |
|
Datasheet |
|
9270 | Bulk | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 125°C |
|
9270-12-00RELAY RF SPST-NO 500MA 12V |
12,083 |
|
Datasheet |
|
9270 | Bulk | Active | Non Latching | 30 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.7 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
|
9270-12-20RELAY RF SPST-NO 500MA 12V |
22,632 |
|
Datasheet |
|
9270 | Bulk | Active | Non Latching | 30 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.7 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 125°C |
|
9402-12-20RELAY RF SPST-NO 500MA 12V |
26,909 |
|
Datasheet |
|
9400 | Tube | Active | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
G6ZU-1FE DC3RELAY RF SPDT 10MA 3V |
16,649 |
|
Datasheet |
|
G6Z | Tube | Obsolete | Latching, Single Coil | 66.7 mA | 3VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 2.25 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS1609RELAY RF SPDT 500MA 9V |
32,522 |
|
Datasheet |
|
ARS | Bulk | Active | Latching, Dual Coil | 44.4 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARS1309RELAY RF SPDT 500MA 9V |
22,658 |
|
Datasheet |
|
ARS | Bulk | Active | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 60°C |
|
ARS1209RELAY RF SPDT 500MA 9V |
45,728 |
|
Datasheet |
|
ARS | Bulk | Active | Latching, Dual Coil | 44.4 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1FE-ARDC12RELAY RF SPDT 10MA 12V |
30,663 |
|
Datasheet |
|
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
1-1462050-1RELAY RF SPDT 2A 3V |
46,134 |
|
Datasheet |
|
HF3, AXICOM | Bulk | Active | Latching, Dual Coil | 46.9 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
1462051-3RELAY RF SPDT 2A 9V |
48,678 |
|
Datasheet |
|
HF3, AXICOM | Bulk | Active | Non Latching | 15.7 mA | 9VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
ARS10A03XRELAY RF SPDT 500MA 3V |
14,987 |
|
Datasheet |
|
ARS | Tape & Reel (TR) | Active | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS10A03ZRELAY RF SPDT 500MA 3V |
38,905 |
|
Datasheet |
|
ARS | Tape & Reel (TR) | Active | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
