Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Measuring Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

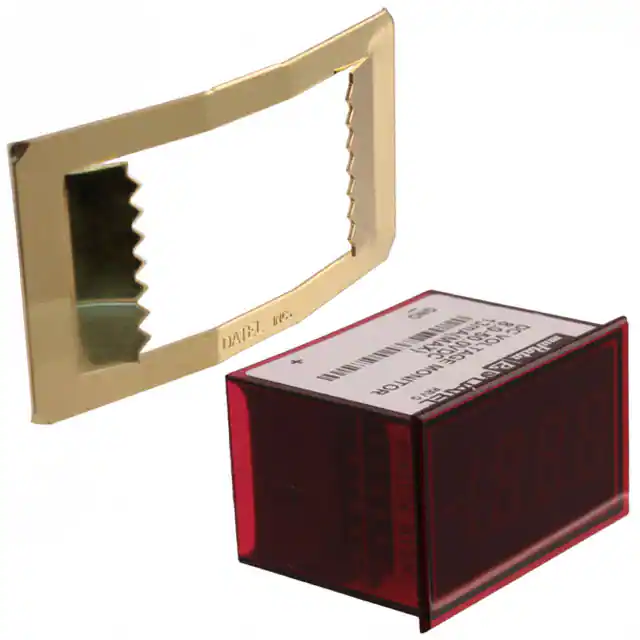

DMS-20PC-2-BS-CVOLTMETER 20VDC LED PANEL MOUNT Murata Power Solutions Inc. |
22 |
|
![]() Datasheet |
![]() |
DMS-20PC | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - |
|
DMS-20PC-0-DCM-CVOLTMTR 4.5-19.99VDC LED PNL MT Murata Power Solutions Inc. |
22 |
|
![]() Datasheet |
![]() |
DMS-20PC-0/1/2/8-DCM | Box | Active | Voltmeter | Voltage | 4.5 ~ 19.99VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|
DMS-20PC-2-DCM-CVOLTMETER 30-264VDC LED PNL MT Murata Power Solutions Inc. |
11 |
|
![]() Datasheet |
![]() |
DMS-20PC-0/1/2/8-DCM | Box | Active | Voltmeter | Voltage | 30 ~ 264VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|

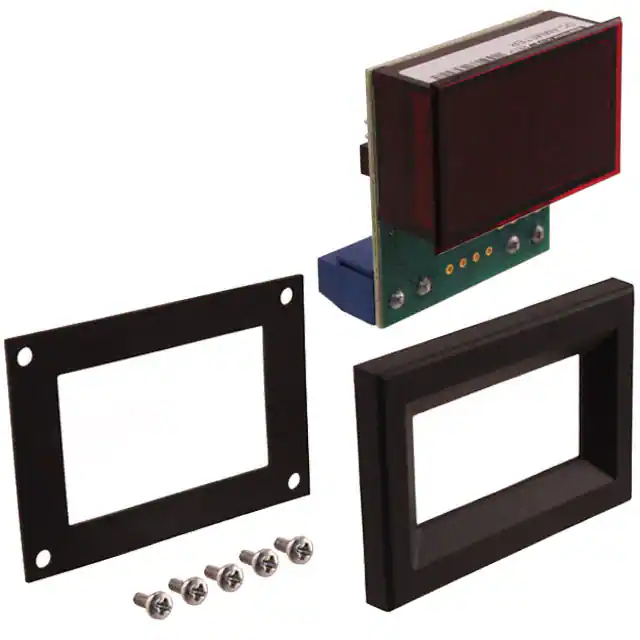

DCA5-20PC-1-DC1-RL-CAMMETER 0-1000A LED PANEL MOUNT Murata Power Solutions Inc. |
7 |
|
![]() Datasheet |
![]() |
DCA5-20PC | Box | Active | Ammeter | Current | 0 ~ 1000A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DMS-30PC-1-RS-CVOLTMETER 2VDC LED PANEL MOUNT Murata Power Solutions Inc. |
23 |
|
![]() Datasheet |
![]() |
DMS-30PC | Box | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DMS-20PC-1-LM-F-CVOLTMETER 85-264VAC LED PNL MT Murata Power Solutions Inc. |
15 |
|
![]() Datasheet |
![]() |
DMS-20PC-1-LM | Box | Active | Voltmeter | Voltage | 85 ~ 264VAC | LED - Red Characters | 3 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Blade Terminals | - | Bezel Sold Separately |
![]() |

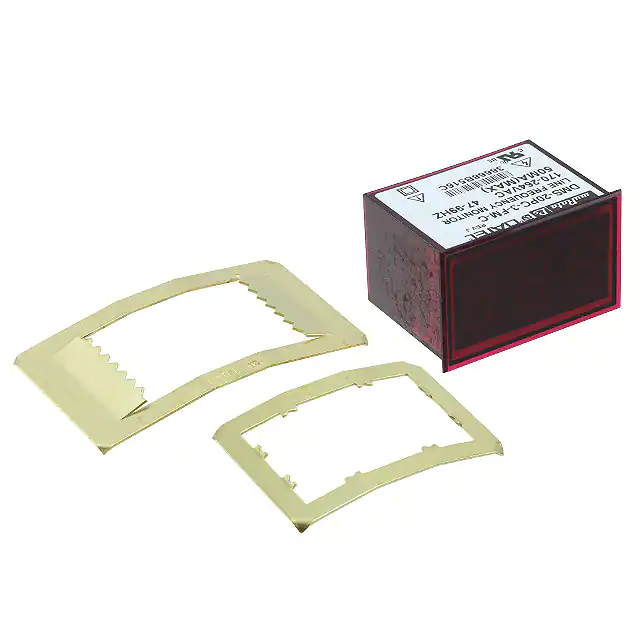

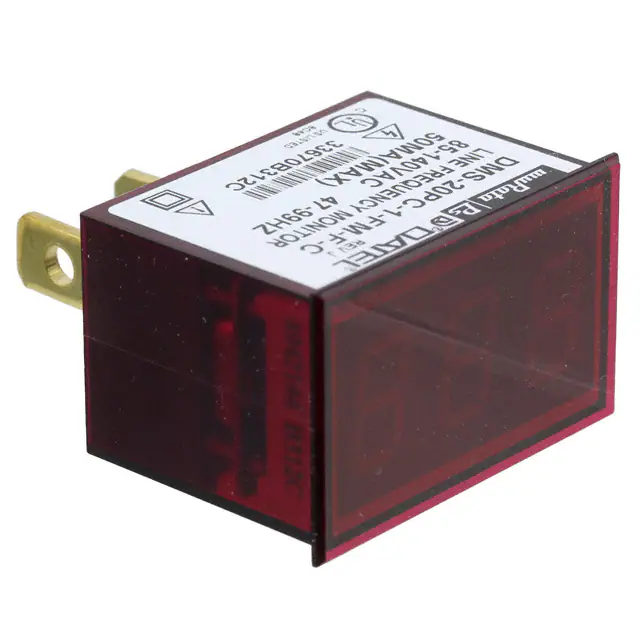

DMS-20PC-1-FM-CFREQUENCY MTR 47-99HZ LED PNL MT Murata Power Solutions Inc. |
5 |
|
![]() Datasheet |
![]() |
DMS-20PC-FM | Box | Active | Frequency Meter | Frequency | 47 ~ 99Hz | LED - Red Characters | 3 | 0.401" (10.20mm) | - | 85 ~ 140VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately |
|
DCA5-20PC-6-DC4-RL-CAMMETER 0-2000A LED PANEL MOUNT Murata Power Solutions Inc. |
13 |
|
![]() Datasheet |
![]() |
DCA5-20PC | Box | Active | Ammeter | Current | 0 ~ 2000A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 8 ~ 36VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DCA5-20PC-2-DC4-RL-CAMMETER 0-2000A LED PANEL MOUNT Murata Power Solutions Inc. |
9 |
|
![]() Datasheet |
![]() |
DCA5-20PC | Box | Active | Ammeter | Current | 0 ~ 2000A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 8 ~ 36VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|

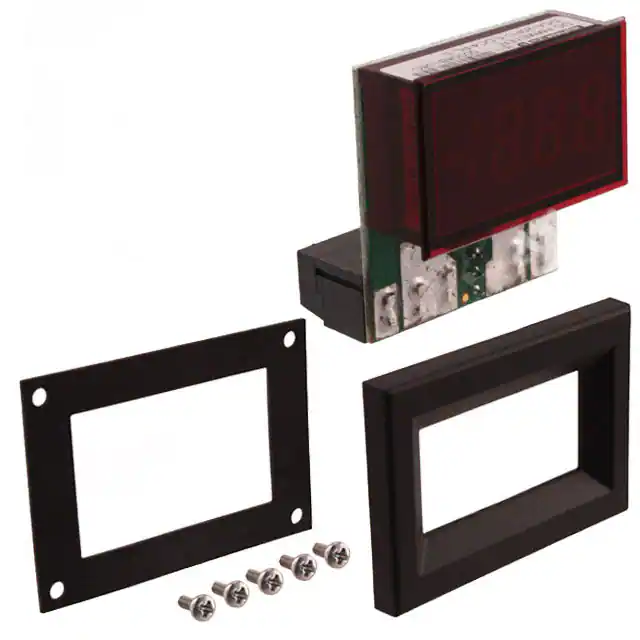

DCA-20PC-5-DC4-RL-CAMMETER 0-1.999A LED PANEL MOUNT Murata Power Solutions Inc. |
10 |
|
![]() Datasheet |
![]() |
DCA-20PC | Box | Active | Ammeter | Current | 0 ~ 1.999A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 8 ~ 36VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Shunts |
