Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Measuring Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

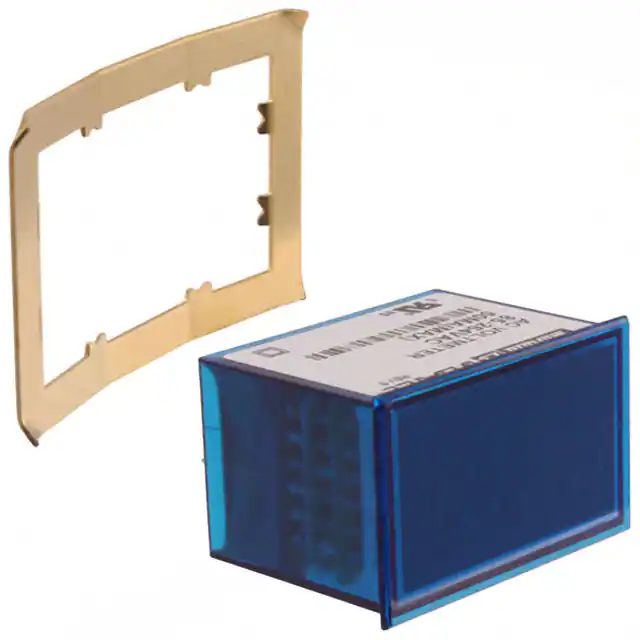

DMS-20PC-1-LM-B-CVOLTMETER 85-264VAC LED PNL MT Murata Power Solutions Inc. |
6 |
|
![]() Datasheet |
![]() |
DMS-20PC-1-LM | Box | Active | Voltmeter | Voltage | 85 ~ 264VAC | LED - Blue Characters | 3 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately |
![]() |
DMS-30LCDA-4/20S-CPROCESS METER 4-20MA LCD PNL MT Murata Power Solutions Inc. |
10 |
|
![]() Datasheet |
![]() |
DMS-30LCDA-4/20 | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.401" (10.20mm) | - | Loop Power | Rectangular - 53.80mm x 22.30mm | Panel Mount | Screw Terminal | - | - |
![]() |
DMS-40LCD-0/1-5-CVOLTMTR 200MVDC/2VDC LCD PNL MT Murata Power Solutions Inc. |
18 |
|
![]() Datasheet |
![]() |
DMS-40LCD | Box | Active | Voltmeter | Voltage | ±2V | LCD - Black Characters | 4.5 | 0.401" (10.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
![]() |

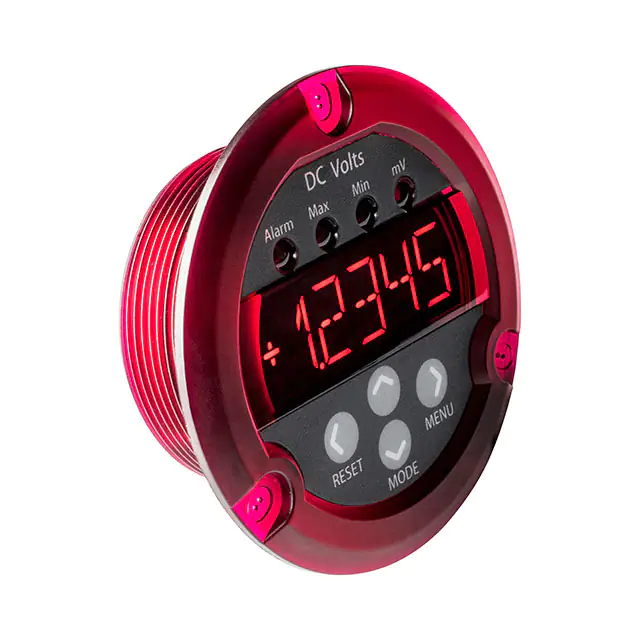

DMR30-DCV1-1-DC4-R-CPRECISION DC VOLTAGE PANEL METER Murata Power Solutions Inc. |
8 |
|
![]() Datasheet |
![]() |
DMR30-DCV1 | Bulk | Active | Voltmeter | Voltage | ±20VDC | LED - Red Characters | 5 | 0.450" (11.43mm) | Relay (2), Solid State | 9 ~ 32VDC | Circular - 57.15mm Dia | Panel Mount | Screw Terminal | - | Excitation Supply |
|
DMS-30PC-0-RS-CVOLTMETER 200MVDC LED PANEL MT Murata Power Solutions Inc. |
12 |
|
![]() Datasheet |
![]() |
DMS-30PC | Box | Active | Voltmeter | Voltage | ±200mVDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DMS-30PC-0-GS-CVOLTMETER 200MVDC LED PANEL MT Murata Power Solutions Inc. |
10 |
|
![]() Datasheet |
![]() |
DMS-30PC | Box | Active | Voltmeter | Voltage | ±200mVDC | LED - Green Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
![]() |
DMS-20PC-3-FM-CFREQUENCY MTR 47-99HZ LED PNL MT Murata Power Solutions Inc. |
12 |
|
![]() Datasheet |
![]() |
DMS-20PC-FM | Box | Active | Frequency Meter | Frequency | 47 ~ 99Hz | LED - Red Characters | 3 | 0.401" (10.20mm) | - | 170 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|

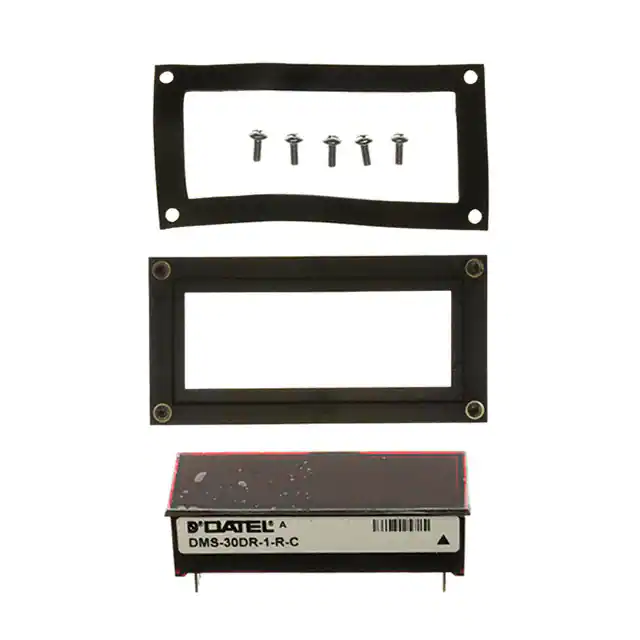

DMS-30DR-1-R-CVOLTMETER 2VDC LED PANEL MOUNT Murata Power Solutions Inc. |
19 |
|
![]() Datasheet |
![]() |
DMS-30DR | Box | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DMS-30PC-2-BS-CVOLTMETER 20VDC LED PANEL MOUNT Murata Power Solutions Inc. |
11 |
|
![]() Datasheet |
![]() |
DMS-30PC | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Blue Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|

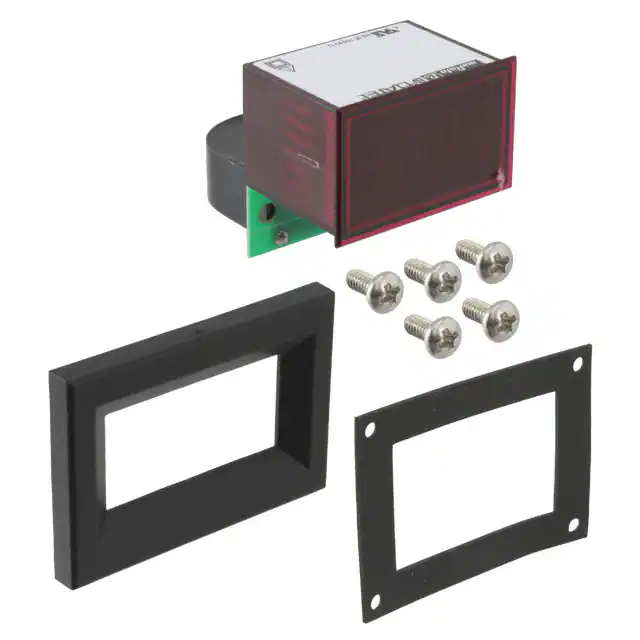

ACA-20PC-2-DC1-RL-CAMMETER 0-19.99A LED PANEL MOUNT Murata Power Solutions Inc. |
3 |
|
![]() Datasheet |
![]() |
ACA-20PC | Box | Active | Ammeter | Current | 0 ~ 19.99A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 4.75 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
