Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

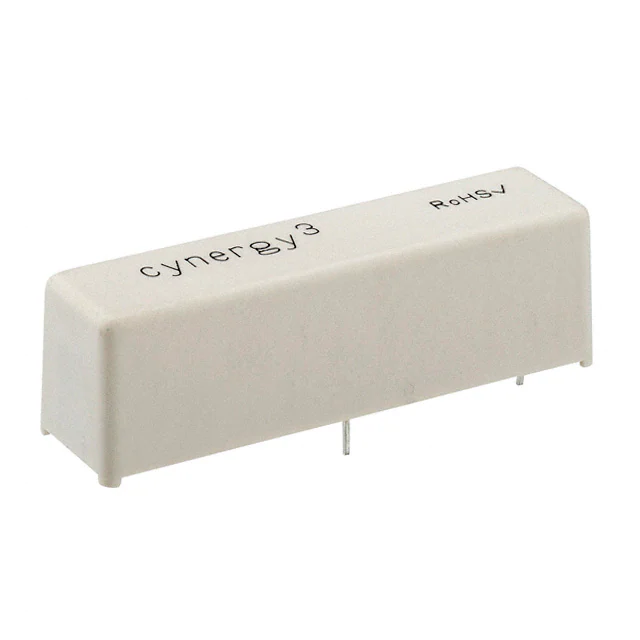

DAT200-05RELAY REED SPST-NO 3A 5V |
34,343 |
|
Datasheet |
 |
D200 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 6 ms | 1 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT71210-HRRELAY REED SPST-NO 2A 12V |
22,719 |
|
Datasheet |
|
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBR71210RELAY REED SPST-NC 3A 12V |
40,567 |
|
Datasheet |
|
DB | Tray | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

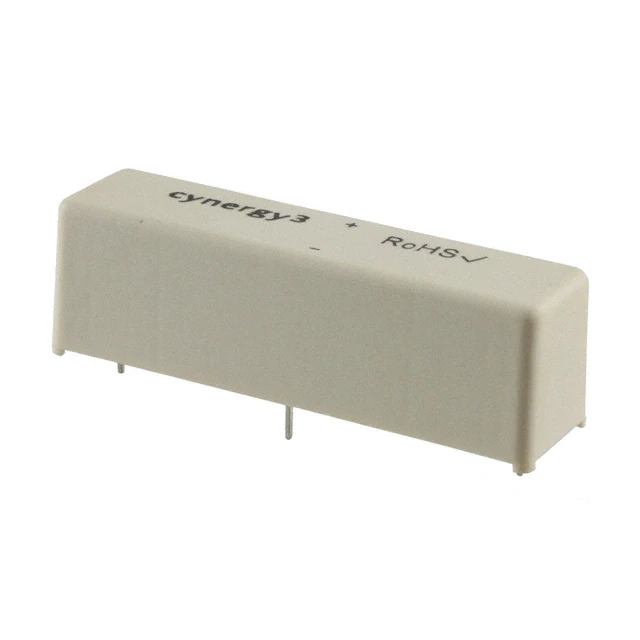

DBR72410RELAY REED SPST-NC 3A 24V |
44,676 |
|
Datasheet |
|
DB | Tray | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
3350-4275-126RELAY REED HV SPST-NC 200W 3A 12 |
11,679 |
|
Datasheet |
|
3350 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 3500VAC, 3500VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
DAR72410SRELAY REED SPST-NO 3A 24V |
34,371 |
|
Datasheet |
|
DA | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

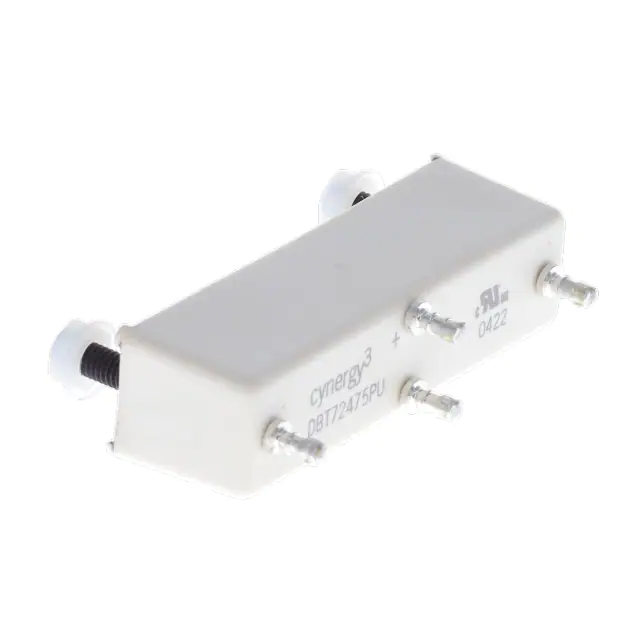

DBT72475PURELAY REED SPST-NC 7.5KV 24V |
46,815 |
|
Datasheet |
|
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT72410PRELAY REED SPST-NC 2A 24V |
40,960 |
|
Datasheet |
|
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72415-HRRELAY REED SPST-NO 2A 24V |
14,357 |
|
Datasheet |
|
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|

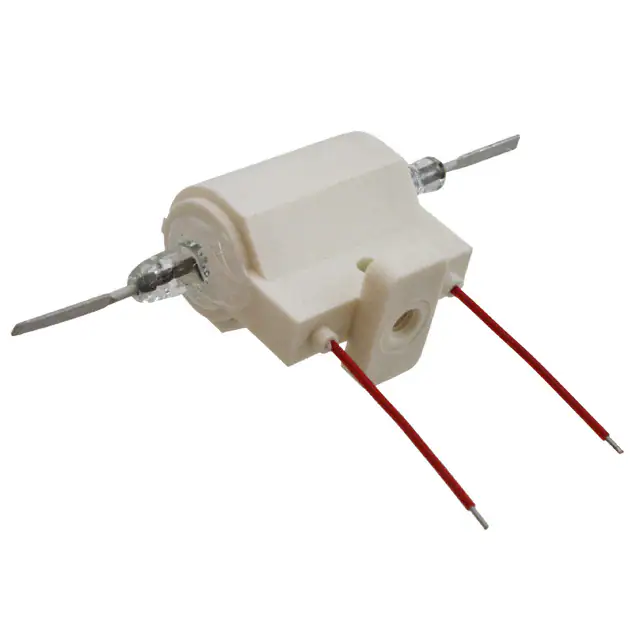

H24-1A83RELAY REED SPST 3A 24V |
18,906 |
|
Datasheet |
|
H | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 18 VDC | 2 VDC | 3.2 ms | 1.5 ms | -20°C ~ 70°C | - |
|
3570-1210-121RELAY REED DIP SPST .5A 12V |
41,460 |
|
Datasheet |
|
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
8L01-12-001RELAY REED SPST 500MA 12V |
20,578 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
HE751A0500RELAY REED SPST 500MA 5V |
48,514 |
|
Datasheet |
|
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

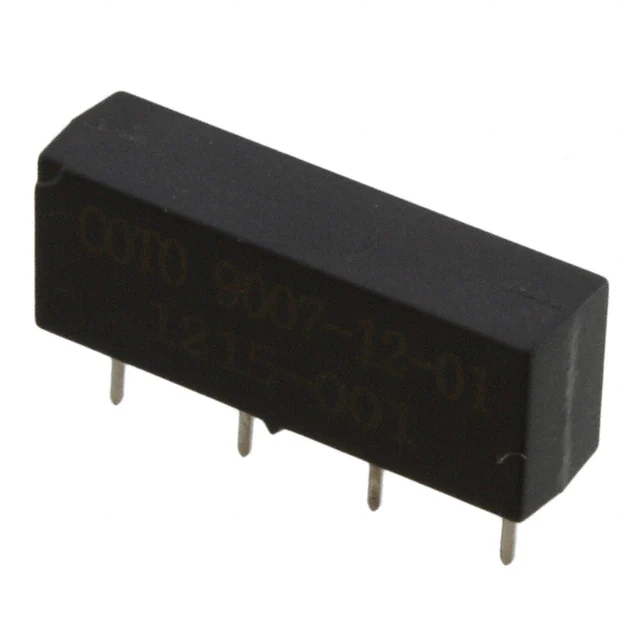

9007-12-01RELAY REED SPST 500MA 12V |
10,831 |
|
Datasheet |
|
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
HE751A2400RELAY REED SPST 500MA 24V |
18,619 |
|
Datasheet |
|
HE700 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

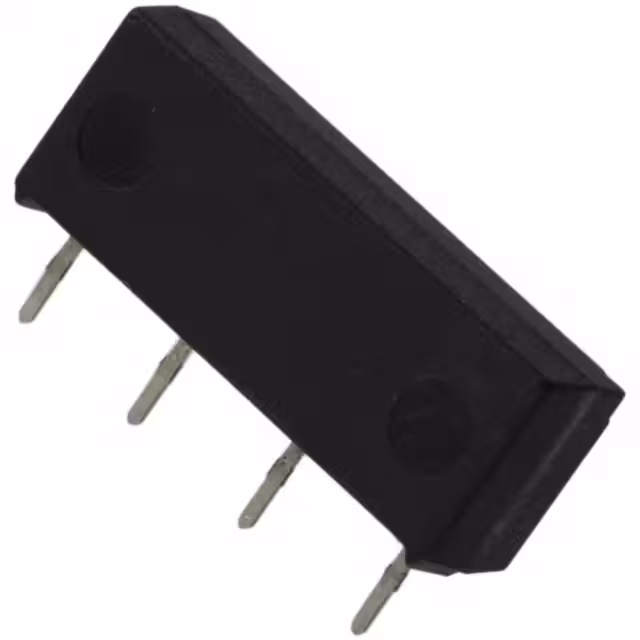

9007-24-01RELAY REED SPST 500MA 24V |
10,602 |
|
Datasheet |
|
9007, Spartan | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
3570-1333-053RELAY REED SIP SPST .5A 5V W/DIO |
27,153 |
|
Datasheet |
|
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|

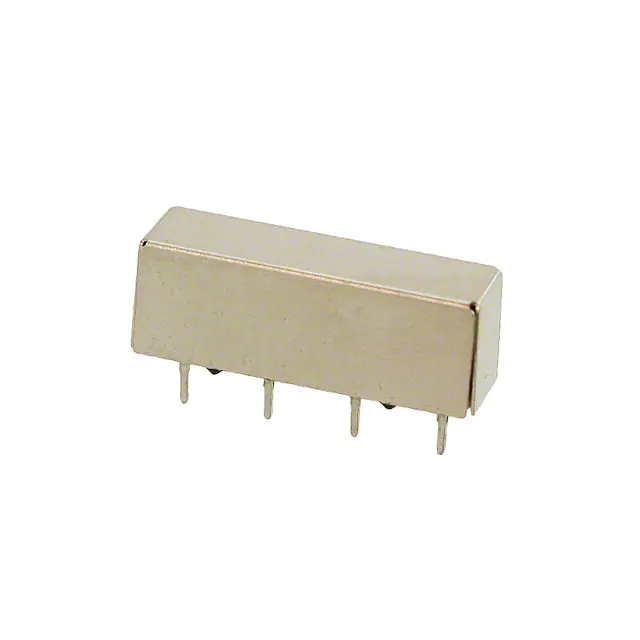

HE3621A1250RELAY REED SPST 500MA 12V |
13,957 |
|
Datasheet |
|
HE3600 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
3572-1220-121RELAY REED DIP DPST .5A 12V |
18,326 |
|
Datasheet |
|
3572 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
3572-1220-054RELAY REED DIP DPST .5A 5V W/DIO |
39,761 |
|
Datasheet |
|
3572 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 35.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.6 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
