Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KT05-1A-40L-THTREED RELAY 1 FORM A 5V TH |
30,058 |
|
Datasheet |
 |
KT | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C | - |
|
CGSM-031A-GTRRELAY RF SPST-NO 500MA 3.3V |
34,852 |
|
Datasheet |
|
CGSM | Tape & Reel (TR) | Active | Surface Mount | 3.3VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 47.1 mA | Non Latching | - | Gull Wing | - | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
8L02-05-11RELAY REED DPST 500MA 5V |
34,087 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L41-05-011RELAY REED SPDT 250MA 5V |
15,879 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8L41-05-111RELAY REED SPDT 250MA 5V |
47,134 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
HE721C2430RELAY REED SPDT 250MA 24V |
18,031 |
|
Datasheet |
|
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
8L41-05-101RELAY REED SPDT 250MA 5V |
18,754 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
3570-1517-053RELAY REED SIP SPST .5A 5V W/DIO |
29,677 |
|
Datasheet |
|
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.2 ms | 0.1 ms | -40°C ~ 85°C | - |
|
9301-12-20RELAY REED SPST 500MA 12V |
42,124 |
|
Datasheet |
|
9300 | Tube | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | J Lead | - | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|

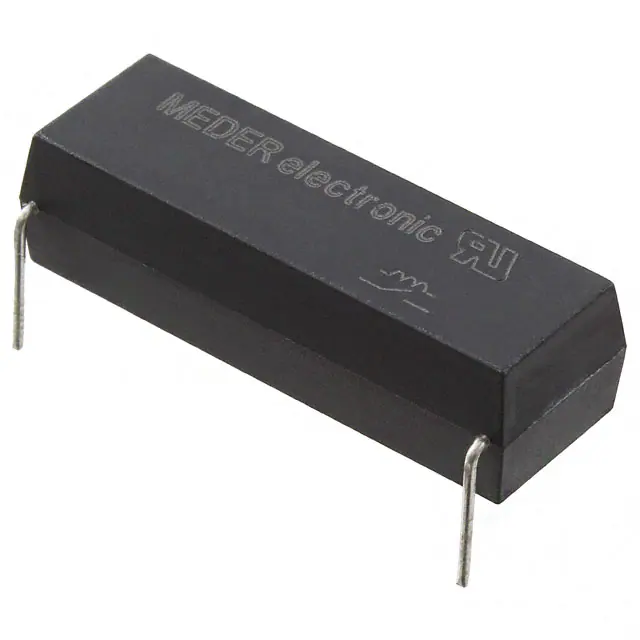

KT24-1A-40L-THTREED RELAY 1 FORM A 24V TH |
31,588 |
|
Datasheet |
|
KT | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C | - |
|
9401-12-00RELAY REED SPST 500MA 12V |
21,566 |
|
Datasheet |
|
9400 | Bulk | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
8L61-05-111RELAY REED SPDT 250MA 5V |
43,069 |
|
Datasheet |
|
8L | Tube | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
9401-12-00-TRRELAY REED SPST 500MA 12V |
20,643 |
|
Datasheet |
|
9400 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9201-12-20RELAY REED SPST 500MA 12V |
44,009 |
|
Datasheet |
|
9200 | Tube | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | J Lead | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9201-05-00TRRELAY REED SPST 500MA 5V |
28,117 |
|
Datasheet |
|
9200 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
8L41-05-001RELAY REED SPDT 250MA 5V |
38,557 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
LI05-1A85RELAY REED SPST 1A 5V |
18,433 |
|
Datasheet |
|
LI | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
2332-05-000RELAY REED DPST 500MA 5V |
46,498 |
|
Datasheet |
|
2300 | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | - |
|
2204-05-411RELAY REED SPST 500MA 5V |
47,186 |
|
Datasheet |
|
2200 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9011-12-11RELAY REED SPST 250MA 12V |
46,435 |
|
Datasheet |
|
9011 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
