Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRX05-1A71REED RELAY SPST-NO 5V ATEX PLAST |
14,516 |
|
Datasheet |
 |
MRX | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.8 VDC | 1 VDC | 0.5 ms | 0.1 ms | -40°C ~ 85°C | - |
|

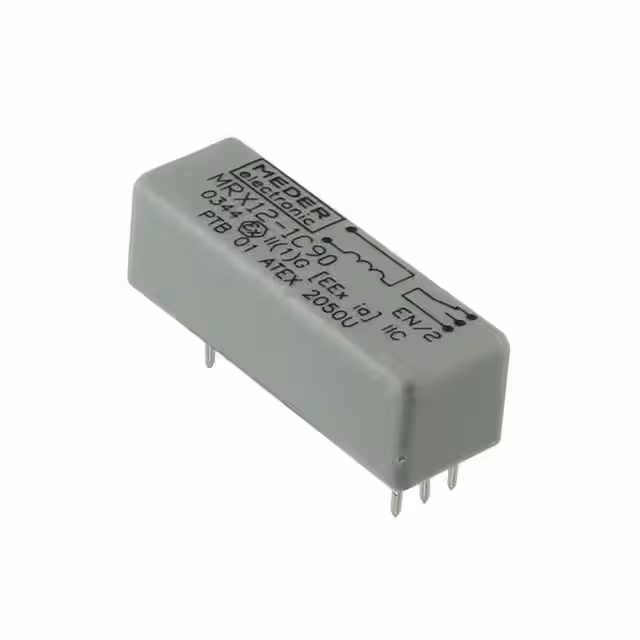

MRX12-1C90REED RELAY SPDT CHANGE 12V ATEX |
18,572 |
|
Datasheet |
|
MRX | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 240 mA | 28VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 2 VDC | 2 ms | 2 ms | -20°C ~ 85°C | - |
|
BH12-4A85-MHIGH VOLTAGE AND INSULATION REED |
39,311 |
|
- |
|
BH | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
MRX12-1A71REED RELAY SPST-NO 12V ATEX PLAS |
10,840 |
|
Datasheet |
|
MRX | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
BT24-2A66RELAY REED DPST 500MA 24V |
46,267 |
|
Datasheet |
|
BT | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 1.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 3.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
DAT71205F-HRRELAY REED 5KV 12V SPST-NO |
28,815 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72405PURELAY REED SPST-NO 5KV 24V |
35,272 |
|
Datasheet |
|
DA | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71205F-HRRELAY REED 5KV 12V SPST-NC |
39,916 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT70575URELAY REED SPST-NC 7.5KV 5V |
43,763 |
|
Datasheet |
|
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70575PURELAY REED SPST-NO 7.5KV 5V |
49,067 |
|
Datasheet |
|
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT72410SURELAY REED SPST-NO 2A 24V |
24,044 |
|
Datasheet |
|
DA | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
HE12-1B83RELAY REED SPST 3A 12V |
43,021 |
|
Datasheet |
|
HE | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
DBR71210F-HRRELAY REED SPST-NC 3A 12V |
12,972 |
|
Datasheet |
|
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBT71210F-HRRELAY REED SPST-NC 2A 12V |
45,801 |
|
Datasheet |
|
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70515TRELAY REED HV 15KV N/O 5VDC PCB |
20,085 |
|
Datasheet |
|
D | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 312.5 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72415TRELAY REED HV 15KV N/O 24VDC PCB |
33,025 |
|
Datasheet |
|
D | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 68.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
SIP-1A05D200V/1A REED RELAY, 1 FORM A, 5V |
14,867 |
|
Datasheet |
|
SIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
DIP-1A05200V/1A REED RELAY, 1 FORM A, 5V |
45,262 |
|
Datasheet |
|
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
DIP-1A12200V/1A REED RELAY, 1 FORM A, 12 |
11,708 |
|
Datasheet |
|
DIP | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
DIP-1A05D200V/1A REED RELAY, 1 FORM A, 5V |
32,755 |
|
Datasheet |
|
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 0.5 ms | -20°C ~ 85°C | - |
