Bergquist 1009-54

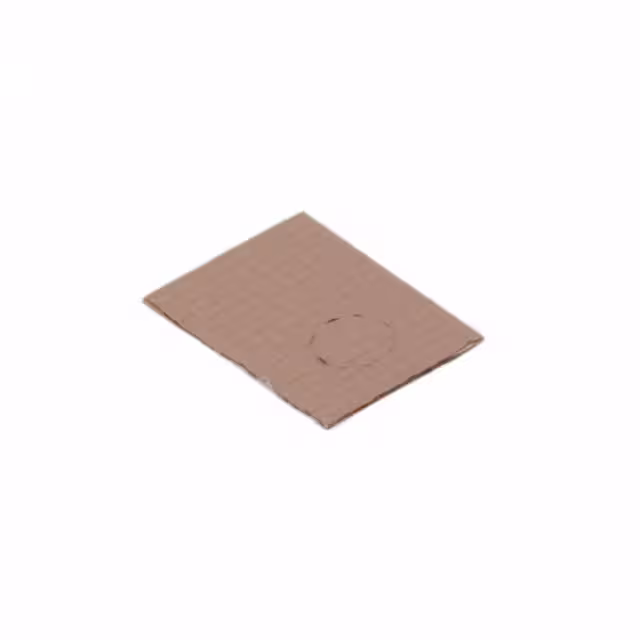

THERM PAD 19.05MMX12.7MM PINK

Answer first: this page is a purchasing reference for the exact part number 1009-54 from Bergquist. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.

Manufacturer: Bergquist Category: Pads, Sheets Part number: 1009-54 Package: RFQ verification required

Key Parameters

Part Number1009-54
ManufacturerBergquist
CategoryPads, Sheets
seriesSil-Pad® 1000
packagingBulk
product statusActive
param 1TO-220
param 2Pad, Sheet
param 3Rectangular
param 419.05mm x 12.70mm
param 50.0090" (0.229mm)
param 6Silicone Rubber
param 7-
param 8Fiberglass
param 9Pink
param 100.35°C/W
param 111.2W/m-K

Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.

How to Verify 1009-54 Before Ordering

Datasheet and parameter checks

  • Confirm the full manufacturer part number, not only a shortened search keyword.
  • Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
  • Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.

RFQ fields SENICO needs

  • Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
  • State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
  • Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.

For 1009-54, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.

We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
