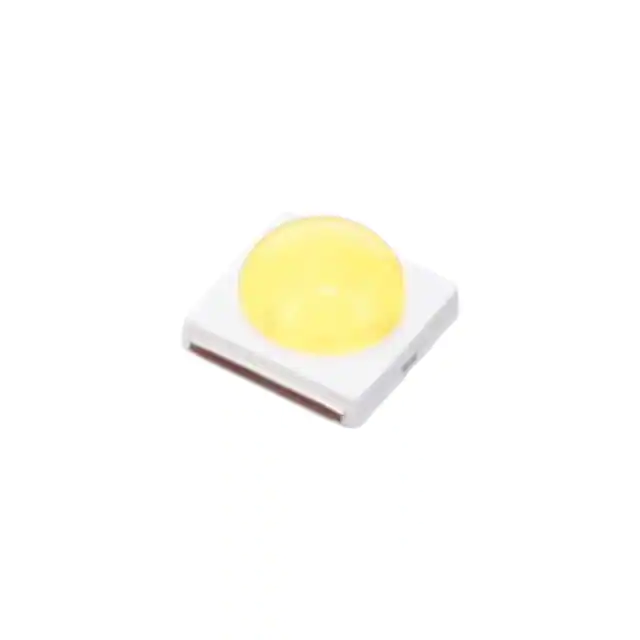

Broadcom Limited ASM6-SWD1-NQTDH

LED ASM6-SWX1 WHT 4000K 1414

Answer first: this page is a purchasing reference for the exact part number ASM6-SWD1-NQTDH from Broadcom Limited. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.

Manufacturer: Broadcom Limited Part number: ASM6-SWD1-NQTDH Package: 1414 (3535 Metric) RFQ verification required

Key Parameters

Part NumberASM6-SWD1-NQTDH
ManufacturerBroadcom Limited
CategoryLED White Lighting
package1414 (3535 Metric)
seriesASM6-SWx1-NxxxH
packagingTape & Reel (TR)
product statusActive
param 1White, Neutral
param 24000K
param 3-
param 4140lm (127lm ~ 186lm)
param 5350mA
param 63V
param 7133 lm/W
param 880 (Typ)
param 91A
param 10130°
param 11-
param 12-
param 13Surface Mount
param 141414
param 150.136" L x 0.136" W (3.45mm x 3.45mm)
param 160.083" (2.10mm)

Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.

How to Verify ASM6-SWD1-NQTDH Before Ordering

Datasheet and parameter checks

  • Confirm the full manufacturer part number, not only a shortened search keyword.
  • Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
  • Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.

RFQ fields SENICO needs

  • Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
  • State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
  • Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.

For ASM6-SWD1-NQTDH, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.

We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
