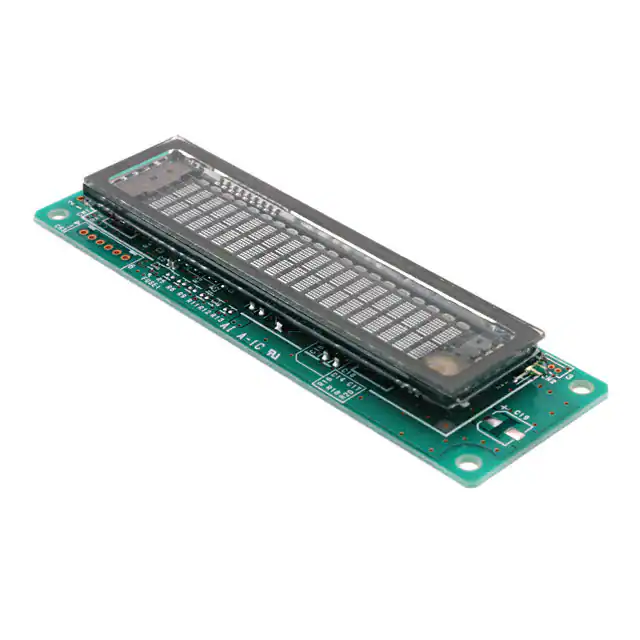

Noritake U.S.A., Inc. CU20025-UW1J
MODULE VF DISPLAY CHAR 20X2
Answer first: this page is a purchasing reference for the exact part number CU20025-UW1J from Noritake U.S.A., Inc.. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | CU20025-UW1J |
|---|---|
| Manufacturer | Noritake U.S.A., Inc. |
| Category | Vacuum Fluorescent (VFD) |
| series | CU-U |
| packaging | Tray |
| product status | Active |
| param 1 | 116.00mm x 37.00mm x 10.40mm |
| param 2 | 70.80mm L x 11.50mm W |
| param 3 | 20 x 2 |
| param 4 | Character |
| param 5 | 5 x 7 Dots |
| param 6 | 5V |
| param 7 | 4.70mm H x 2.40mm W |
| param 8 | - |
| param 9 | TTL/CMOS |
| param 10 | - |
| param 11 | -40°C ~ 85°C |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify CU20025-UW1J Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For CU20025-UW1J, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
