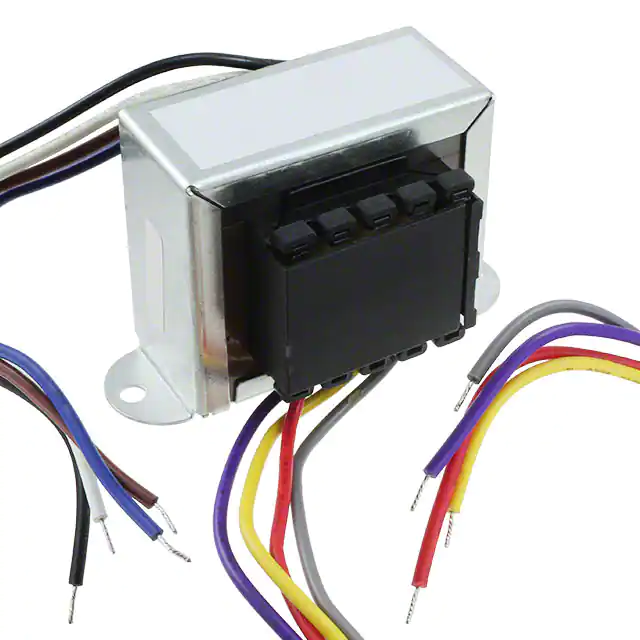

Triad Magnetics VPL24-210

PWR XFMR LAMINATED 5.0VA CHAS MT

Answer first: this page is a purchasing reference for the exact part number VPL24-210 from Triad Magnetics. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.

Manufacturer: Triad Magnetics Category: Power Transformers Part number: VPL24-210 Package: RFQ verification required

Key Parameters

Part NumberVPL24-210
ManufacturerTriad Magnetics
CategoryPower Transformers
seriesChassis Mount: World Series™
packagingBox
product statusActive
param 1Laminated Core
param 2115V, 230V
param 324V
param 4210mA
param 5Dual
param 6Dual
param 7No
param 85.0VA
param 9Chassis Mount
param 10Wire Leads
param 1136.52mm L x 60.33mm W
param 1236.52mm
param 133500Vrms
param 140.4 lb (181.44 g)

Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.

How to Verify VPL24-210 Before Ordering

Datasheet and parameter checks

  • Confirm the full manufacturer part number, not only a shortened search keyword.
  • Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
  • Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.

RFQ fields SENICO needs

  • Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
  • State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
  • Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.

For VPL24-210, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.

We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
