DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL65-21/12/2FAN BLOWER 97X33MM 12VDC WIRE |
89 |
|
Datasheet |
 |
RL65 | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 32.9 CFM (0.921m³/min) | - | Ball | Blower | Speed Sensor (Tach) | 62.0dB(A) | 15 W | 4500 RPM | 3 Wire Leads | - | - | - | 0.37 lb (167.83 g) |
|

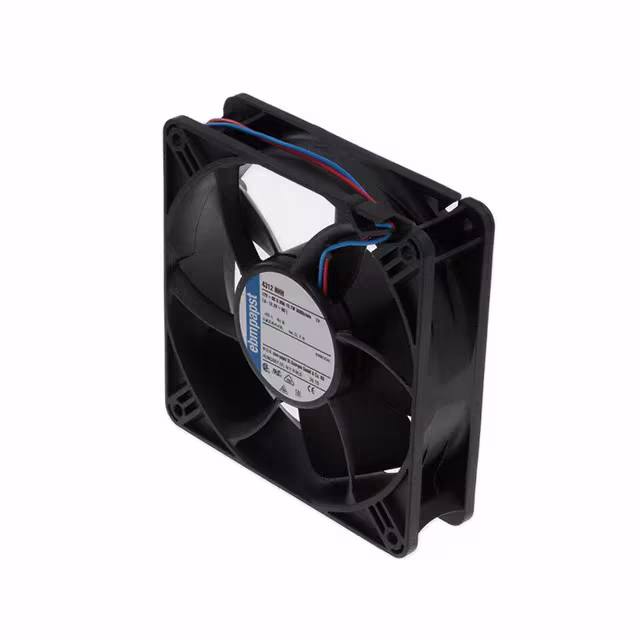

4312NHHFAN AXIAL 119X32MM 12VDC WIRE |
6 |
|
Datasheet |
|
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 10.7 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
4318FAN AXIAL 119X32MM 48VDC WIRE |
99 |
|
Datasheet |
|
4300 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
4414MLFAN AXIAL 119X38MM 24VDC WIRE |
36 |
|
Datasheet |
|
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 3.2 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | - | 0.595 lb (269.89 g) |
|

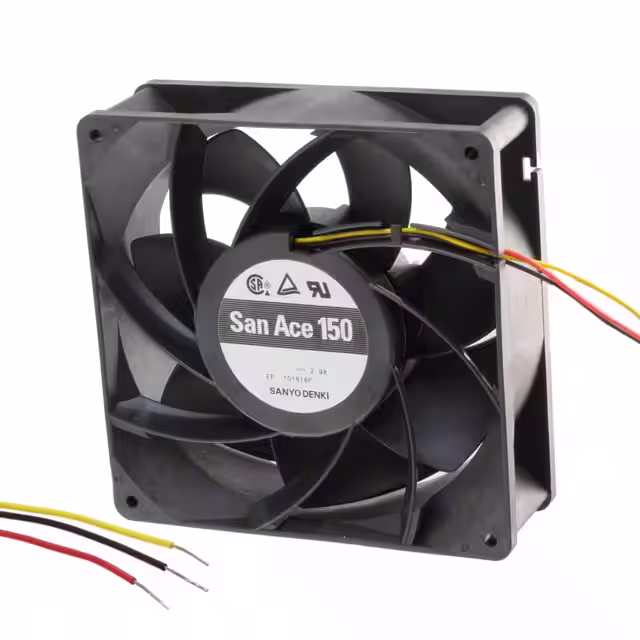

9GV1512H501FAN AXIAL 150X50MM 12VDC WIRE |
43 |
|
Datasheet |
|
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 50.00mm | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 34.8 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|
9WPA0424H3001FAN AXIAL 40X28MM 24VDC WIRE |
42 |
|
Datasheet |
|
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 4.1 W | 18500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
19030573AFAN AXIAL 120X32MM 48VDC MC48B3 |
25 |
|
Datasheet |
|
Muffin | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.8dB(A) | 8.4 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.529 lb (239.95 g) |
|
|
4418MFAN AXIAL 119X38MM 48VDC WIRE |
18 |
|
Datasheet |
|
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 108.3 CFM (3.03m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 4.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|

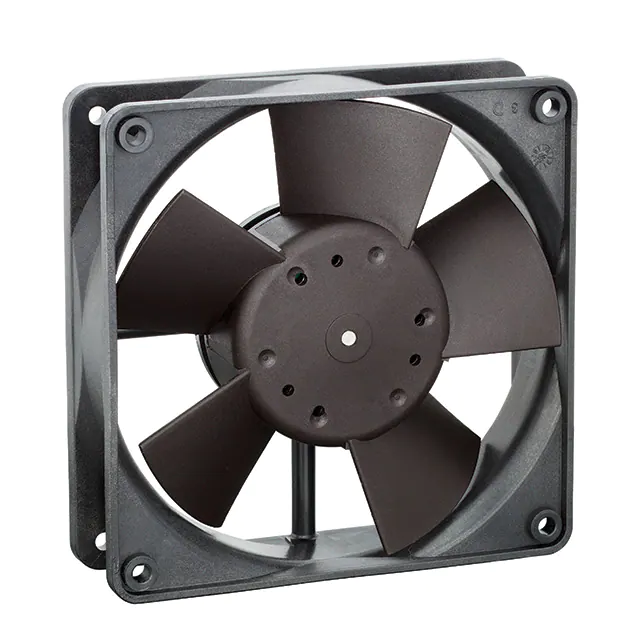

4374SFAN AXIAL 119X32MM 24VDC TERM |
21 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 4.9 W | 2800 RPM | 3 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.485 lb (219.99 g) |
|
4414/2N-522FAN AXIAL 119X38MM 24VDC WIRE |
36 |
|
Datasheet |
|
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 120.7 CFM (3.38m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 5.4 W | 3650 RPM | 3 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 0.631 lb (286.22 g) |
|
|
9WPA0412P3G001FAN AXIAL 40X28MM 12VDC WIRE |
92 |
|
Datasheet |
|
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 6 W | 22200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0424P3G001FAN AXIAL 40X28MM 24VDC WIRE |
11 |
|
Datasheet |
|
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 6 W | 22200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
19031102AFAN BLOWER 80X32.4MM 24V WT24B3 |
6 |
|
Datasheet |
|
Whiffet | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.40mm | 15.0 CFM (0.420m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 51.4dB(A) | 4.8 W | 4050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.369 lb (167.38 g) |
|
8315100134FAN AXIAL 80X38MM 24VDC WIRE |
53 |
|
Datasheet |
|
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 126.5 CFM (3.54m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 44 W | 16500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
9WPA0412P6G001FAN AXIAL 40X20MM 12VDC WIRE |
54 |
|
Datasheet |
|
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.4 CFM (0.375m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 2 W | 13700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
4414HHFAN AXIAL 119X38MM 24VDC WIRE |
14 |
|
Datasheet |
|
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 167.9 CFM (4.70m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 14 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
4394FAN AXIAL 119X32MM 24VDC TERM |
25 |
|
Datasheet |
|
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
|
17001157AFAN AXIAL 24VDC MSD24B3E2X-E3 |
12 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.1dB(A) | 7 W | 3000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
4414/2HFAN AXIAL 119X38MM 24VDC WIRE |
18 |
|
Datasheet |
|
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 0.642 in H2O (160.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 8.6 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.604 lb (273.97 g) |
|
|
4412/2HHPFAN AXIAL 119X38MM 12VDC WIRE |
18 |
|
Datasheet |
|
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 167.9 CFM (4.70m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 13 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
