DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DV5214/2NFAN AXIAL 127X38MM 24VDC WIRE |
14 |
|
Datasheet |
 |
DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 159.0 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 20.4 W | 5000 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
W2G107-AD01-13FAN AXIAL 119X38MM 12VDC TERM |
9 |
|
Datasheet |
|
W2G107 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 70.0dB(A) | 3.5 W | 2800 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | UL | - |
|
9LG1224F1D001FAN AXIAL 120X38MM 24VDC WIRE |
20 |
|
Datasheet |
|
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 4.56 W | - | 3 Wire Leads | - | - | - | - |
|
OD172SAP-12HHB10AFAN AXIAL 172X51MM 12VDC WIRE |
25 |
|
Datasheet |
|
OD172S | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.0dB | - | 3800 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
9CRA0824P8G001FAN AXIAL DUAL 80X80MM 24VDC |
21 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.00mm | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.993 lb (450.42 g) |
|
RLF100-11/14/19FAN BLOWER CF 127X25.4MM 24VDC |
23 |
|
Datasheet |
|
RLF100 | Bulk | Active | 24VDC | Square/Rounded - 127mm L x 127mm H | 25.40mm | 37.7 CFM (1.06m³/min) | 1.728 in H2O (430.0 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection | - | 8.6 W | 5100 RPM | 3 Wire Leads | IP20 | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | - |
|
8218J/2H4PFAN AXIAL 80X38MM 48VDC WIRE |
24 |
|
Datasheet |
|
8200J, S-Force | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 36 W | 14000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

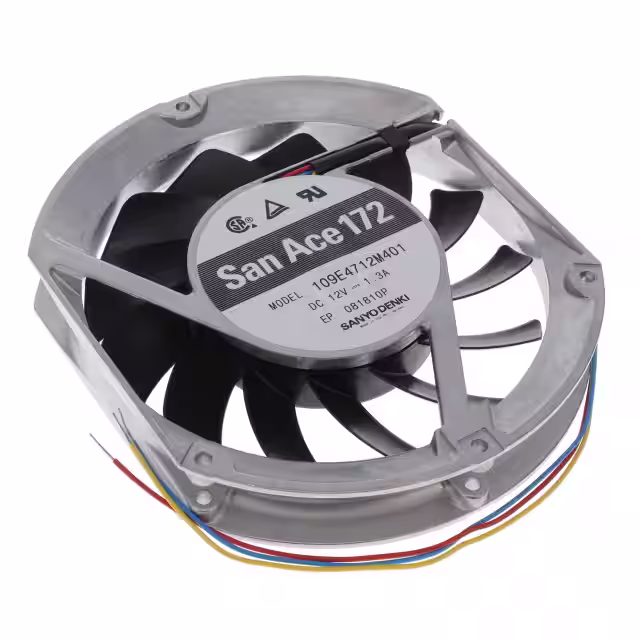

109E4712M401FAN AXIAL 172X25.4MM 12VDC WIRE |
12 |
|
Datasheet |
|
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 15.6 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
17001186AFAN AXIAL BALL JQD24Z3E2X-E3 |
6 |
|
Datasheet |
|
Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 305.0 CFM (8.54m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 31.2 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
4114N/2HU-272FAN AXIAL 119X38MM 24VDC WIRE |
21 |
|
Datasheet |
|
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 0.882 lb (400.07 g) |
|

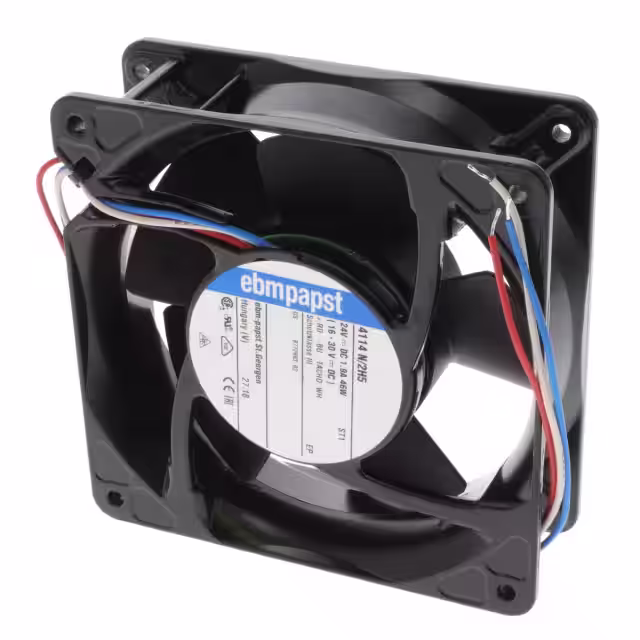

4114N/2H5FAN AXIAL 119X38MM 24VDC WIRE |
13 |
|
Datasheet |
|
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 230.0 CFM (6.44m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 45 W | 7500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
7118NFAN AXIAL 150X38MM 48VDC WIRE |
15 |
|
Datasheet |
|
7100N | Bulk | Active | 48VDC | Round - 150mm Dia | 38.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 12 W | 2850 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.4 lbs (635.0 g) |
|
DV4114/2NFAN AXIAL 119X38MM 24VDC WIRE |
13 |
|
Datasheet |
|
DV4100 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 20.5 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | - |
|
9LG1424P5G001FAN AXIAL 140X51MM 24VDC WIRE |
15 |
|
Datasheet |
|
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
9WL1412P1A001FAN AXIAL 140X38MM 12VDC WIRE |
14 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.64 W | 6900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
|
9LG1224G1D001FAN AXIAL 120X38MM 24VDC WIRE |
21 |
|
Datasheet |
|
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.0dB(A) | 38.4 W | 6550 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|

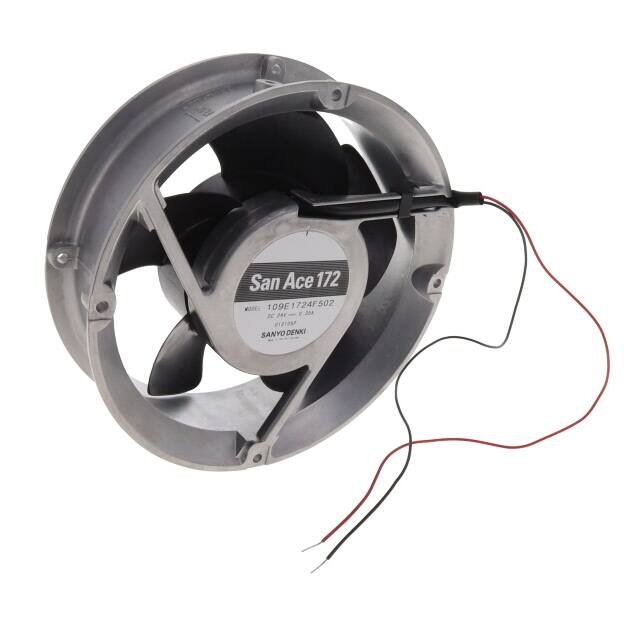

109E1724F502FAN AXIAL 172X51MM 24VDC WIRE |
9 |
|
Datasheet |
|
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 8.4 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

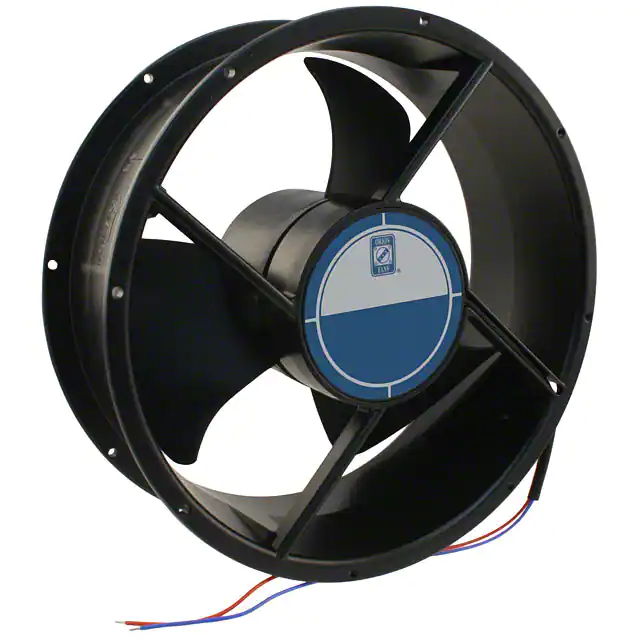

OD254AP-12MBFAN AXIAL 254X89MM 12VDC WIRE |
4 |
|
Datasheet |
|
OD254 | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 690.0 CFM (19.32m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB | 50 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
7114NHFAN AXIAL 150X38MM 24VDC WIRE |
24 |
|
Datasheet |
|
7100N | Bulk | Active | 24VDC | Round - 150mm Dia | 38.00mm | 247.0 CFM (6.92m³/min) | - | Ball | Tubeaxial | - | 59.0dB(A) | 19 W | 3350 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.4 lbs (635.0 g) |
_Series.JPG)
|
6224NUFAN AXIAL 171.5X50.8MM 24VDC |
18 |
|
Datasheet |
|
6200NU | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 15.6 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 162°F (-20 ~ 72°C) | UL | 1.9 lbs (861.8 g) |
