DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA1751E24B-FSRFAN AXIAL 172X50.8MM 24VDC WIRE |
3 |
|
Datasheet |
 |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 61.0dB(A) | - | 3150 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
MA1751X24B2-FSRFAN AXIAL 172X50.8MM 24VDC WIRE |
23 |
|
Datasheet |
|
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 63.0dB(A) | - | 3400 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
4188NXMFAN AXIAL 119X38MM 48VDC TERM |
13 |
|
Datasheet |
|
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 94.0 CFM (2.63m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.5 W | 2800 RPM | 2 Terminals | - | -22 ~ 167°F (-30 ~ 75°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
4118NH3FAN AXIAL 119X38MM 48VDC WIRE |
9 |
|
Datasheet |
|
4100N | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 20 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | 0.86 lb (390.09 g) |
|
FFB1224XHE-MFAN AXIAL 120X38MM 24VDC WIRE |
22 |
|
Datasheet |
|
FFB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 264.6 CFM (7.41m³/min) | 1.705 in H2O (424.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 73.5dB(A) | 78 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
8315100164FAN AXIAL 80X38MM 12VDC WIRE |
12 |
|
Datasheet |
|
AxiForce | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 103.0 CFM (2.88m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 26 W | 13200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

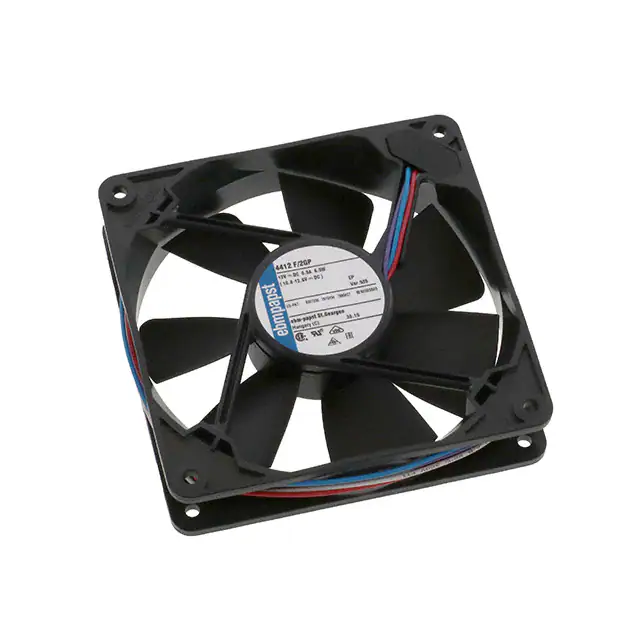

4412F/2GP-535FAN AXIAL 119X25.4MM 12VDC |
10 |
|
Datasheet |
|
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 5.3 W | 2900 RPM | - | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
15025PA-24N-AA-00FAN AXIAL 172.7X25.4MM 24VDC |
20 |
|
Datasheet |
|
15025PA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 226.0 CFM (6.33m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 61.5dB | 23.8 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9LG1224A1002FAN AXIAL 120X38MM 24VDC WIRE |
24 |
|
Datasheet |
|
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 8.88 W | - | 2 Wire Leads | - | - | - | - |
|
618JHFAN AXIAL 60X32MM 48VDC WIRE |
18 |
|
Datasheet |
|
600J | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 32.00mm | 41.2 CFM (1.15m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 7.7 W | 11700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.222 lb (100.7 g) |
|
9HV1248P1H001FAN AXIAL 119X38MM 48VDC WIRE |
11 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 254.0 CFM (7.11m³/min) | 4.220 in H2O (1051.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 67 W | 10000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1 lb (453.6 g) |
|
|
EFB1548XHG20DFAN AXIAL 172X50.8MM 48VDC WIRE |
7 |
|
Datasheet |
|
EFB | Box | Not For New Designs | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 435.4 CFM (12.19m³/min) | 2.085 in H2O (519.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 73.0dB(A) | 66.2 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
9WPA0812P4G20180X25MM 12VDC IP68 -40C TACH PWM |
8 |
|
Datasheet |
|
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
9GV1412P1G001FAN AXIAL 140X38MM 12VDC WIRE |
13 |
|
Datasheet |
|
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 310.0 CFM (8.68m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 55.2 W | 7600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
MSI1380H24B1+7-BBRFAN IMP MTRZD 133X80.5MM 24VDC |
10 |
|
Datasheet |
|
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
4114NHHFAN AXIAL 119X38MM 24VDC WIRE |
22 |
|
Datasheet |
|
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 12.4 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | - |
|
|
9GV1424P1G001FAN AXIAL 140X38MM 24VDC WIRE |
24 |
|
Datasheet |
|
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 310.0 CFM (8.68m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 55.2 W | 7600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
|
9RA1424P1G001140X38MM 24VDC LOW NOISE TACH PW |
2 |
|
Datasheet |
|
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 12.7 W | 4250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1412P1G0011140X38MM 12VDC LOW NOISE RBLS TA |
8 |
|
Datasheet |
|
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 13.2 W | 4250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

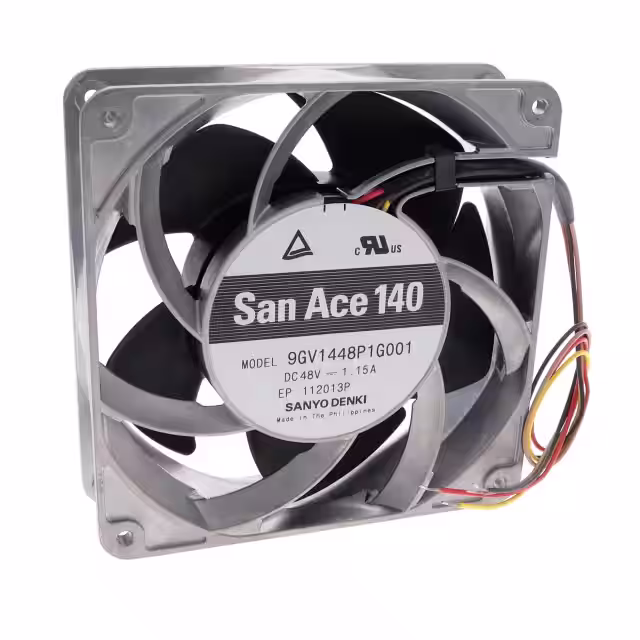

9GV1448P1G001FAN AXIAL 140X38MM 48VDC WIRE |
10 |
|
Datasheet |
|
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 310.0 CFM (8.68m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 55.2 W | 7600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
