DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0824B20011FAN AXIAL 80X32MM 24VDC WIRE |
30 |
|
Datasheet |
 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.92 W | - | 3 Wire Leads | - | - | - | - |
|
4314NMFAN AXIAL 119X32MM 24VDC WIRE |
42 |
|
Datasheet |
|
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 88.2 CFM (2.47m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.4 W | 2100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
|
4312NHFAN AXIAL 119X32MM 12VDC WIRE |
38 |
|
Datasheet |
|
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 129.3 CFM (3.62m³/min) | - | Ball | Tubeaxial | - | 47.0dB(A) | 6.5 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
4312NNFAN AXIAL 119X32MM 12VDC WIRE |
22 |
|
Datasheet |
|
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.3 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

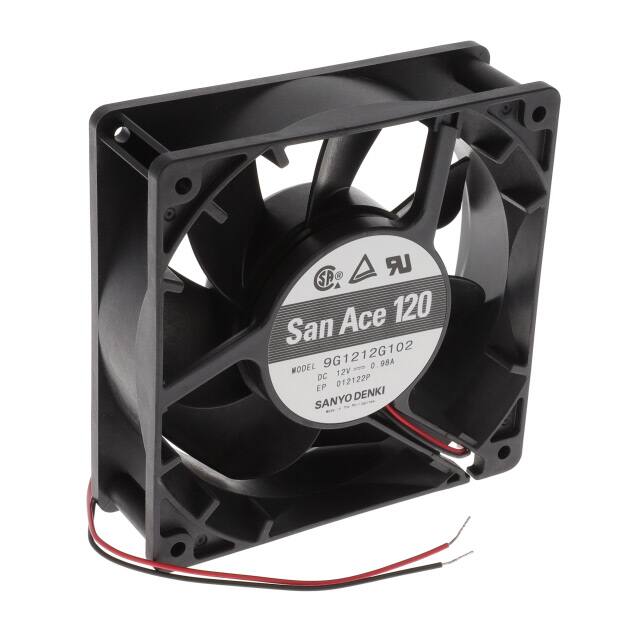

9G1212G102FAN AXIAL 119X38MM 12VDC WIRE |
77 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | - | 49.0dB(A) | 11.76 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1224G1021FAN AXIAL 119X38MM 24VDC WIRE |
75 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | - | 49.0dB(A) | 12 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1212H1D011FAN AXIAL 119X38MM 12VDC WIRE |
85 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
OD1232-48HB01XFAN AXIAL 120.5X32MM 48VDC WIRE |
27 |
|
Datasheet |
|
OD1232 | Bulk | Active | 48VDC | Square - 120.5mm L x 120.5mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 45.4dB(A) | 10.1 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9CR0412S501FAN AXIAL DUAL 40X56MM 12VDC |
14 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 57.5dB(A) | 13.2 W | 15800 Front, 10600 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
|
9GA0824B2002FAN AXIAL 80X32MM 24VDC WIRE |
26 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.92 W | - | 2 Wire Leads | - | - | - | - |
|

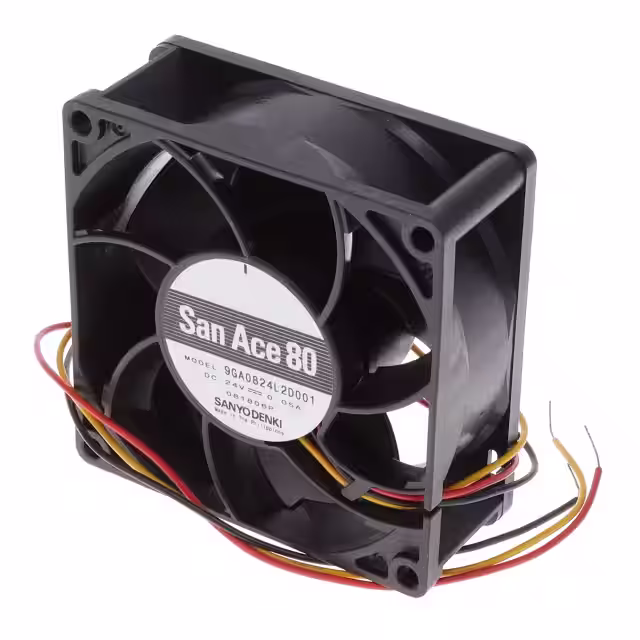

9GA0824L2D001FAN AXIAL 80X32MM 24VDC WIRE |
61 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.2 W | - | 3 Wire Leads | - | - | - | - |
|
|
9GA0824B2001FAN AXIAL 80X32MM 24VDC WIRE |
28 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.92 W | - | 3 Wire Leads | - | - | - | - |
|

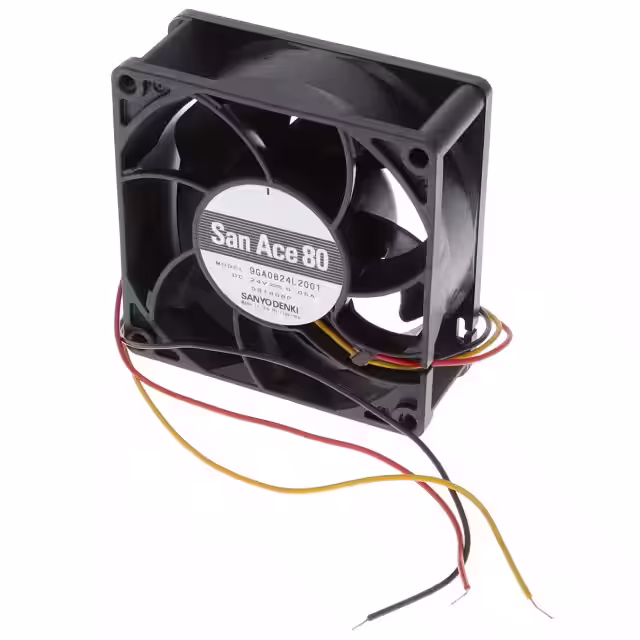

9GA0824L2001FAN AXIAL 80X32MM 24VDC WIRE |
28 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.2 W | - | 3 Wire Leads | - | - | - | - |
|
9RA0812K10011FAN AXIAL 80X38MM 12VDC WIRE |
19 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 104.5 CFM (2.96m³/min) | 1.230 in H2O (306.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 18.24 W | 8250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
_Series.jpg)
|
612N/2MEFAN AXIAL 60X25.4MM 12VDC WIRE |
19 |
|
Datasheet |
|
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 800 mW | 4100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.146 lb (66.22 g) |
|
9HV0912P4H0011FAN AXIAL 92X25.2MM 12VDC WIRE |
96 |
|
Datasheet |
|
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.20mm | 97.1 CFM (2.72m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 8.52 W | 6050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
612N/2GML-096FAN AXIAL 60X25.4MM 12VDC RECT |
13 |
|
Datasheet |
|
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 13.5 CFM (0.378m³/min) | 0.097 in H2O (24.0 Pa) | Sintec | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 900 mW | 3000 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|
|
9RA0948S4001FAN AXIAL 92X25MM 48VDC WIRE |
53 |
|
Datasheet |
|
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0948G4001FAN AXIAL 92X25MM 48VDC WIRE |
47 |
|
Datasheet |
|
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0812P1K0011FAN AXIAL 80X38MM 12VDC WIRE |
37 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 104.5 CFM (2.96m³/min) | 1.230 in H2O (306.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 18.24 W | 8250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
