DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD1238X12B1+6-FSR-EMC-L25FAN AXIAL 120X38MM 12VDC WIRE |
36 |
|
Datasheet |
 |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
9RA1248G4001FAN AXIAL 120X25MM 48VDC WIRE |
28 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 7.2 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1248A4001FAN AXIAL 120X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 4.32 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
19039067AFAN AXIAL 80X32MM 12VDC ST12Z3 |
84 |
|
Datasheet |
|
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 45.0 CFM (1.26m³/min) | 0.372 in H2O (92.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 51.5dB(A) | 6.2 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.397 lb (180.08 g) |
|
|
9RA1248P4G0011FAN AXIAL 120X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 7.2 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
12038VA-12P-EA-00FAN AXIAL 120X38MM 12VDC WIRE |
38 |
|
Datasheet |
|
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart | 59.5dB | 18 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
19030769AFAN AXIAL 79.8X41.8MM 48V SD48B5 |
97 |
|
Datasheet |
|
Sprite | Box | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.6dB(A) | 3.1 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
_Series.jpg)
|
3412N/39HFAN AXIAL 92X25.4MM 12VDC WIRE |
16 |
|
Datasheet |
|
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 55.3 CFM (1.55m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.5 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|
8312HL-156FAN AXIAL 80X32MM 12VDC |
39 |
|
Datasheet |
|
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 39.5 CFM (1.11m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 4 W | 4200 RPM | 2 Position Rectangular Connector | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
4318/2FAN AXIAL 119X32MM 48VDC WIRE |
80 |
|
Datasheet |
|
4300 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.49 lb (222.26 g) |
|
|
9RA1248G40011FAN AXIAL 120X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 7.2 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1248E4001FAN AXIAL 120X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.28 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1248A40011FAN AXIAL 120X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 4.32 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1248E40011FAN AXIAL 120X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.28 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
8314MFAN AXIAL 80X32MM 24VDC WIRE |
12 |
|
Datasheet |
|
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 28.3 CFM (0.792m³/min) | - | Ball | Tubeaxial | - | 34.0dB(A) | 2.1 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
06056EA-12S-E6D-L60X60X56MM, 12VDC, 17,750/15,450 |
33 |
|
Datasheet |
|
106056 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 72.0 CFM (2.02m³/min) | 6.600 in H2O (1643.9 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 74.0dB | 50.4 W | 17750 RPM Front, 15450 RPM Rear | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
4318NH3FAN AXIAL 119X32MM 48VDC WIRE |
39 |
|
Datasheet |
|
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 167.0 CFM (4.68m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 11.5 W | 4050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
9RA0848G10011FAN AXIAL 80X38MM 48VDC WIRE |
55 |
|
Datasheet |
|
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 10.56 W | 6750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

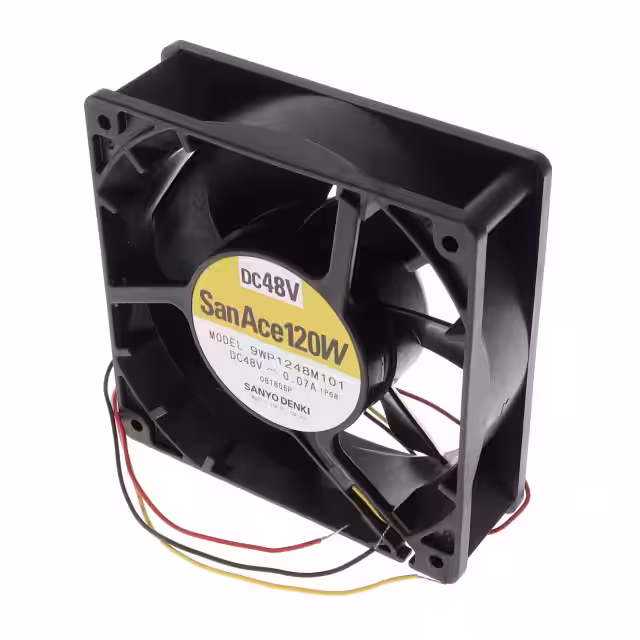

9WP1248M101FAN AXIAL 120X38MM 48VDC WIRE |
14 |
|
Datasheet |
|
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.36 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

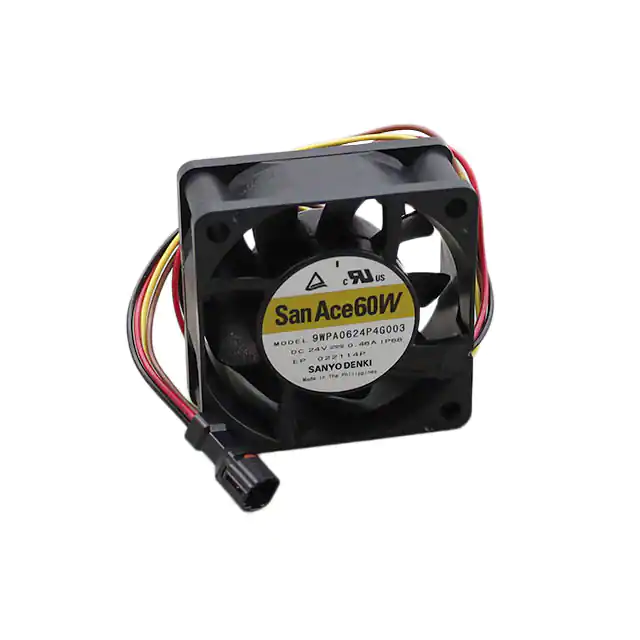

9WPA0624P4G003FAN AXL 60X25MM 24VDC RECT CONN |
54 |
|
Datasheet |
|
San Ace 60W | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 15.3 CFM (0.428m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 22.0dB(A) | - | 3500 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
