DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
712F/2FAN AXIAL 70X15MM 12VDC WIRE |
30 |
|
Datasheet |
 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 25.9 CFM (0.725m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 1.7 W | 5300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
8312LFAN AXIAL 80X32MM 12VDC WIRE |
43 |
|
Datasheet |
|
8300 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 19.0 CFM (0.532m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 1 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
4314GFAN AXIAL 119X32MM 24VDC WIRE |
20 |
|
Datasheet |
|
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
|
4312GFAN AXIAL 119X32MM 12VDC WIRE |
6 |
|
Datasheet |
|
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
109L0612H402FAN AXIAL 60X25MM 12VDC WIRE |
92 |
|
Datasheet |
|
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.32 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|
19032003AFAN AXIAL 79.8X41.8MM 48V SD48B2 |
91 |
|
Datasheet |
|
Sprite | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3.1 W | 3500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|
4484FFAN AXIAL 119X25.4MM 24VDC TERM |
39 |
|
Datasheet |
|
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|

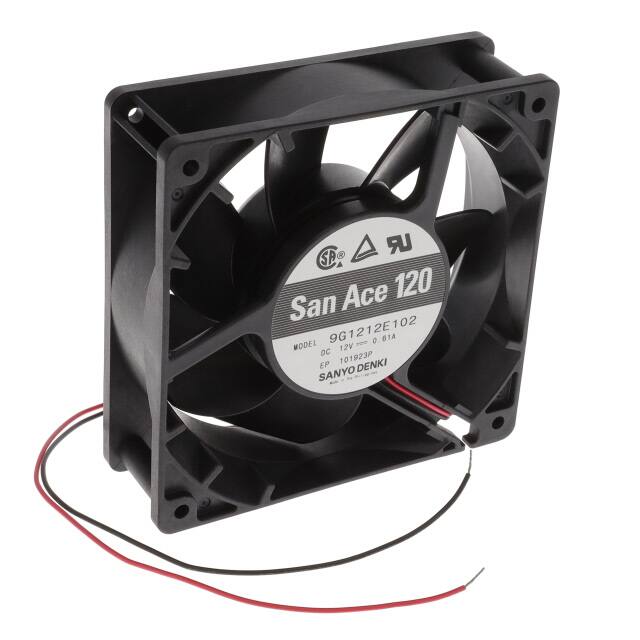

9G1212E102FAN AXIAL 119X38MM 12VDC WIRE |
42 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.32 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
8394FAN AXIAL 80X32MM 24VDC TERM |
7 |
|
Datasheet |
|
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.5 W | - | 2 Terminals | - | - | - | 0.38 lb (172.37 g) |
|

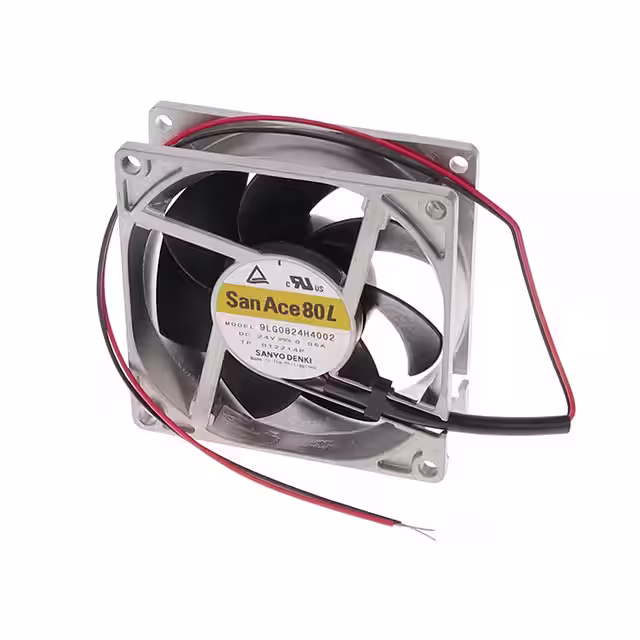

9LG0824H4002FAN AXIAL 80X25MM 24VDC WIRE |
27 |
|
Datasheet |
|
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.2 W | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
|
4412FGFAN AXIAL 119X25.4MM 12VDC WIRE |
7 |
|
Datasheet |
|
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 5.3 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
9WFA0824G6001FAN AXIAL 80X20MM 24VDC WIRE |
37 |
|
Datasheet |
|
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 3.6 W | 6000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.232 lb (105.23 g) |
|
4314NNFAN AXIAL 119X32MM 24VDC WIRE |
18 |
|
Datasheet |
|
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.1 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|

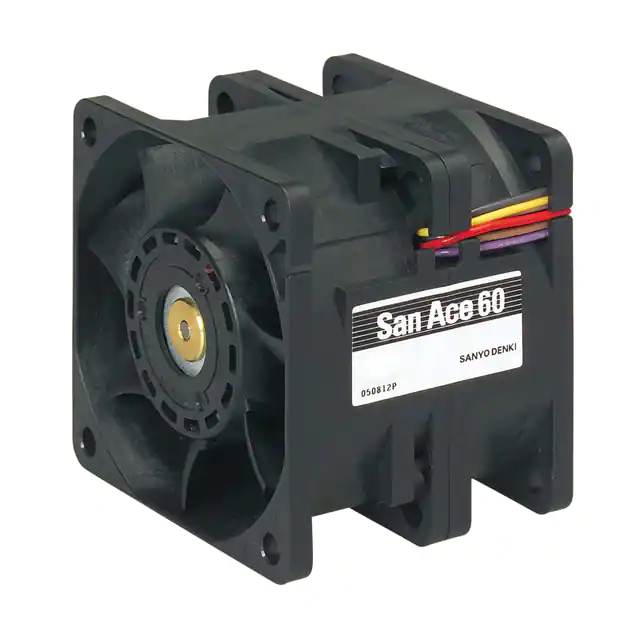

9CR0612P5G03FAN AXIAL DUAL 60X51MM 12VDC |
38 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 71.7 CFM (2.01m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 68.0dB(A) | 32.4 W | 11500 Front, 9000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
622/2H3PFAN AXIAL 60X25.4MM BALL 12VDC |
46 |
|
Datasheet |
|
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 39.5 CFM (1.11m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 5.5 W | 9700 RPM | - | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.19 lb (86.18 g) |
|

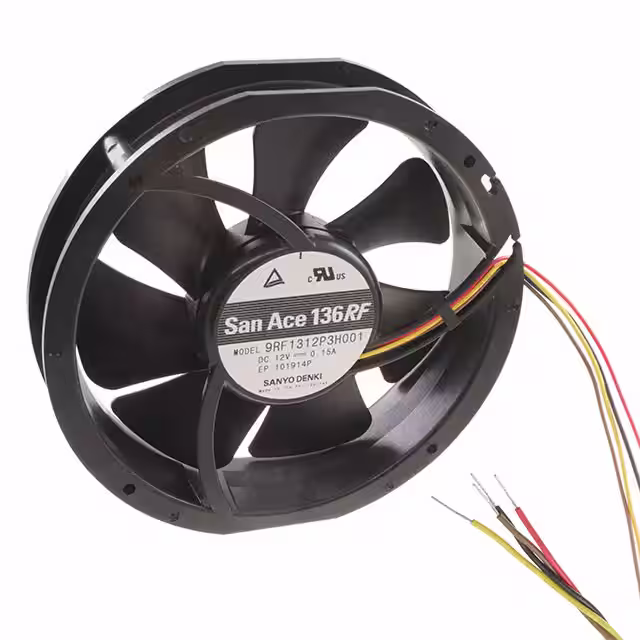

9RF1312P3H001FAN AXIAL 136X28MM 12VDC WIRE |
67 |
|
Datasheet |
|
San Ace 136RF | Box | Active | 12VDC | Round - 136mm Dia | 28.00mm | 70.7 CFM (1.98m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 35.0dB(A) | 1.8 W | 3100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|

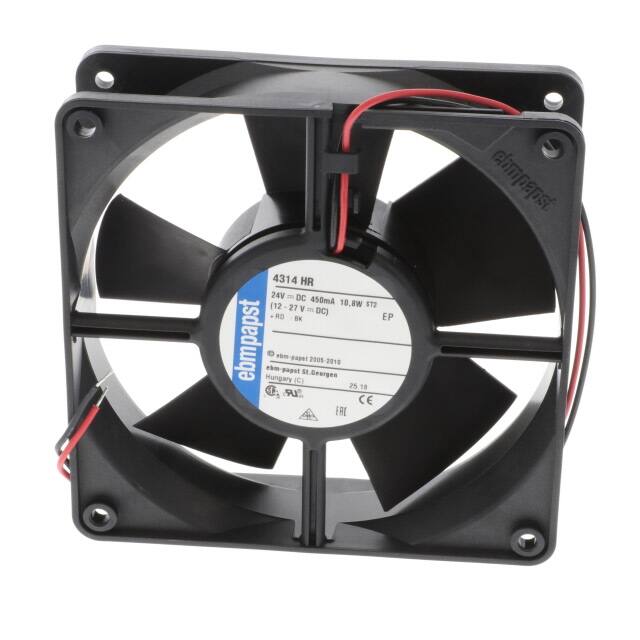

4314HRFAN 24DCV |
27 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
612NGNIFAN AXIAL 60X25.4MM 12VDC WIRE |
3,246 |
|
Datasheet |
|
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.1 CFM (0.676m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 2.4 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
5214NNFAN AXIAL 127X38MM 24VDC WIRE |
45 |
|
Datasheet |
|
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 127.1 CFM (3.56m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 6 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|

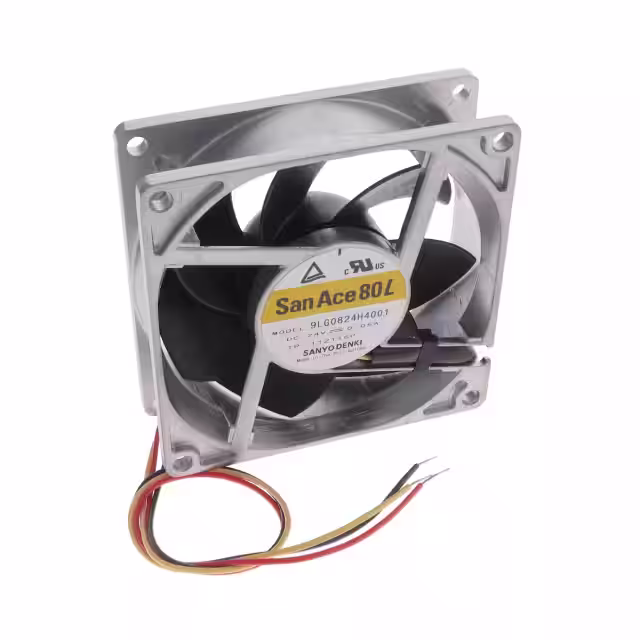

9LG0824H4001FAN AXIAL 80X25MM 24VDC WIRE |
55 |
|
Datasheet |
|
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.2 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
