DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225SA-24M-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
58 |
|
Datasheet |
 |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.4 CFM (1.35m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 32.0dB | 1.56 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.209 lb (94.8 g) |
|

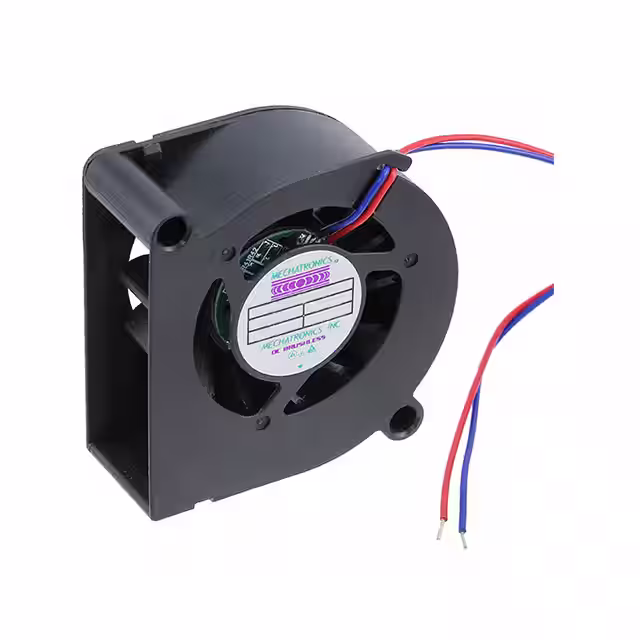

B5020L12B-BSR-CCFAN BLOWER 51X20MM 12VDC WIRE |
100 |
|
Datasheet |
|
B5020 | Box | Active | 12VDC | Square/Rounded - 51mm L x 50mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | - | 0.049 lb (22.23 g) |
|

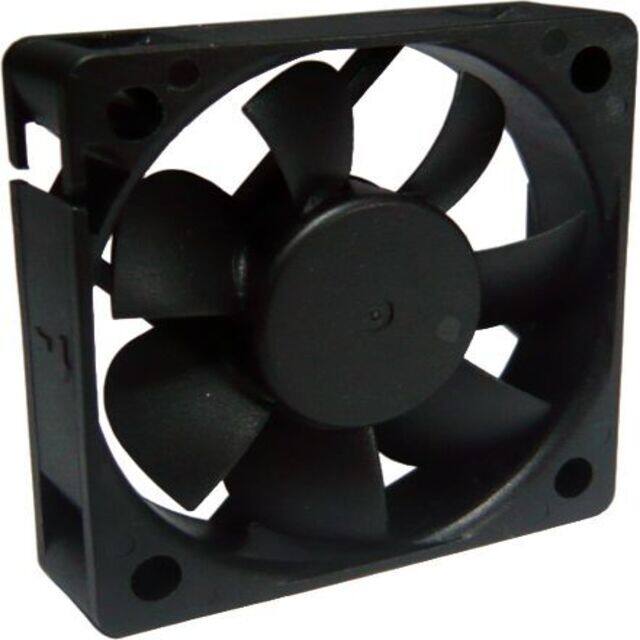

NYW04010005LL-5FAN AXIAL 40X10.5MM 5VDC WIRE |
20 |
|
Datasheet |
|
NYW04010 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.1 CFM (0.143m³/min) | 0.067 in H2O (16.7 Pa) | Sintec | Tubeaxial | - | 17.5dB(A) | 350 mW | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
NYW04010012LL-5FAN AXIAL 40X10.5MM 12VDC WIRE |
20 |
|
Datasheet |
|
NYW04010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
2410ML-05W-B89-E50FAN AXIAL 60X25MM 24VDC WIRE |
63 |
|
Datasheet |
|
2410ML | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.0dB | 8.16 W | 7800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
1404KL-01W-B30-B00FAN AXIAL 35X10MM BALL 5VDC WIRE |
39 |
|
Datasheet |
|
1404KL | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.062 in H2O (15.4 Pa) | Ball | Tubeaxial | - | 19.0dB | 400 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.026 lb (11.79 g) |
|
F8025H24B-FSR-L2FAN AXIAL 80X25MM 24VDC WIRE |
74 |
|
Datasheet |
|
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
CFM-A238V-121-370-11FAN AXIAL 120X38MM 12VDC WIRE |
4,297 |
|
Datasheet |
|
CFM-120V | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.0dB(A) | 3.33 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
AFB0724MFAN AXIAL 70X25.4MM 24VDC WIRE |
85 |
|
Datasheet |
|
AFB | Bulk | Obsolete | 24VDC | Square - 70mm L x 70mm H | 25.40mm | - | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|
109P0824M702FAN AXIAL 80X15MM 24VDC WIRE |
33 |
|
Datasheet |
|
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 1.2 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
CFM-A225-13-20FAN AXIAL 120X25.4MM 12VDC WIRE |
20 |
|
Datasheet |
|
CFM-120 | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 9.48 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.419 lb (190.06 g) |
|

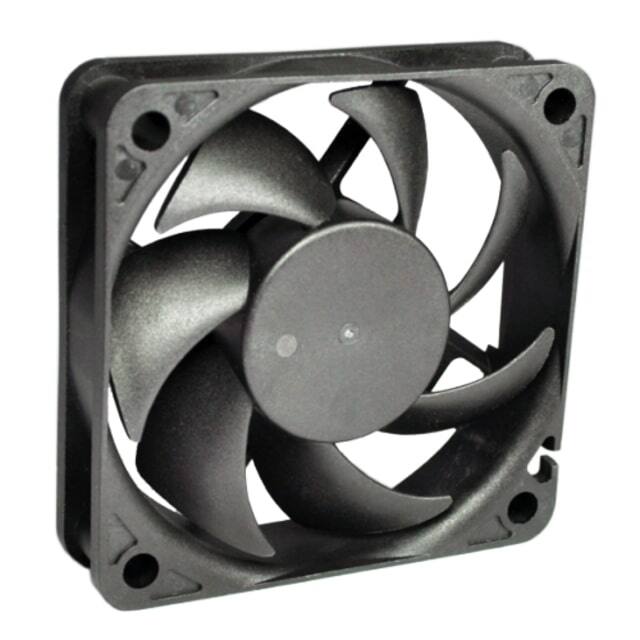

EYW06015024BH-5FAN AXIAL 60X15MM 24VDC WIRE |
20 |
|
Datasheet |
|
EYW06015 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 20.9 CFM (0.585m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.32 W | 4800 RPM | 3 Wire Leads | - | - | - | - |
|
|
EYW06015024BS-5FAN AXIAL 60X15MM 24VDC WIRE |
20 |
|
Datasheet |
|
EYW06015 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
AFB0912VHD-F00FAN AXIAL 92X20MM 12VDC WIRE |
100 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 66.1 CFM (1.85m³/min) | 0.198 in H2O (49.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.5dB(A) | 3.36 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
4715KL-05W-B10-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
62 |
|
Datasheet |
|
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 37.0dB | 3.6 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|

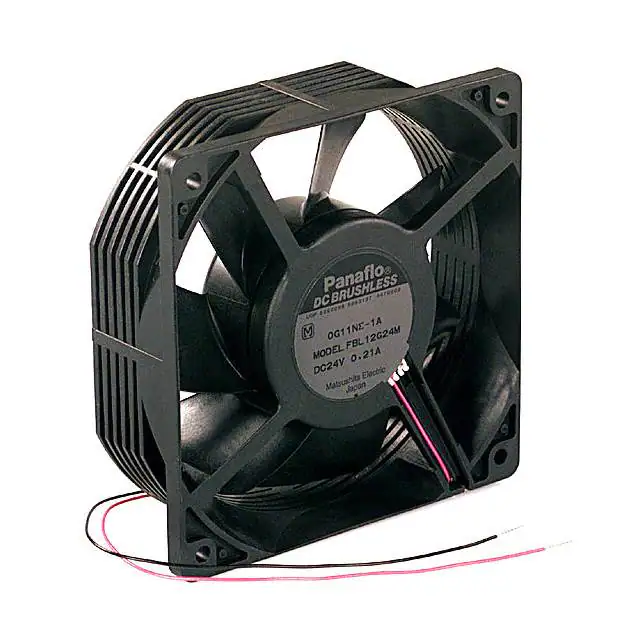

FBL12G24M1AFAN AXIAL 120X38MM 24VDC WIRE |
12 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 86.5 CFM (2.42m³/min) | 0.189 in H2O (47.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.5dB | 2.98 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.595 lb (269.89 g) |
|
3610VL-05W-B30-B00FAN AXIAL 92X25MM 24VDC WIRE |
59 |
|
Datasheet |
|
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 38.5dB(A) | 3.36 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
NYW03010012LL-12FAN AXIAL 30X10.5MM 12VDC WIRE |
20 |
|
Datasheet |
|
NYW03010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
BG0702-B045-00L-00FAN BLOWER 75.7X25MM 12VDC WIRE |
27 |
|
Datasheet |
|
BG | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.5 CFM (0.266m³/min) | 0.614 in H2O (153.0 Pa) | Ball | Blower | Locked Rotor Sensor | 43.0dB | 3 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
11925SA-12N-AL-00FAN AXIAL 119X25MM 12VDC WIRE |
96 |
|
Datasheet |
|
11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB | 2.88 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
