DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1204PFV1.11.MS.AF.GNFAN AXIAL 40X10MM 12VDC WIRE |
4,386 |
|
Datasheet |
 |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.1 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.037 lb (16.78 g) |
|
FAD1-08015BAHW12FAN AXIAL 80X15MM 5VDC WIRE |
2,786 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 5VDC | Square - 80mm L x 80mm H | 15.00mm | 29.7 CFM (0.832m³/min) | 0.122 in H2O (30.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 34.4dB(A) | 1.1 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015BAMW12FAN AXIAL 80X15MM 5VDC WIRE |
4,768 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 5VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 24.9dB(A) | 650 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015CAHW12FAN AXIAL 80X15MM 12VDC WIRE |
4,485 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 29.7 CFM (0.832m³/min) | 0.122 in H2O (30.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 34.4dB(A) | 1.08 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015CALW12FAN AXIAL 80X15MM 12VDC WIRE |
3,124 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.052 in H2O (12.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 18.8dB(A) | 360 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015CAMW12FAN AXIAL 80X15MM 12VDC WIRE |
3,163 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 24.9dB(A) | 600 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015CAJW12FAN AXIAL 80X15MM 12VDC WIRE |
4,441 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 34.3 CFM (0.960m³/min) | 0.173 in H2O (43.1 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 38.1dB(A) | 1.92 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015DAHW12FAN AXIAL 80X15MM 24VDC WIRE |
4,717 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 29.7 CFM (0.832m³/min) | 0.122 in H2O (30.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 34.4dB(A) | 1.92 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015DAMW12FAN AXIAL 80X15MM 24VDC WIRE |
2,266 |
|
Datasheet |
|
FAD1-08015 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 24.9dB(A) | 960 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|

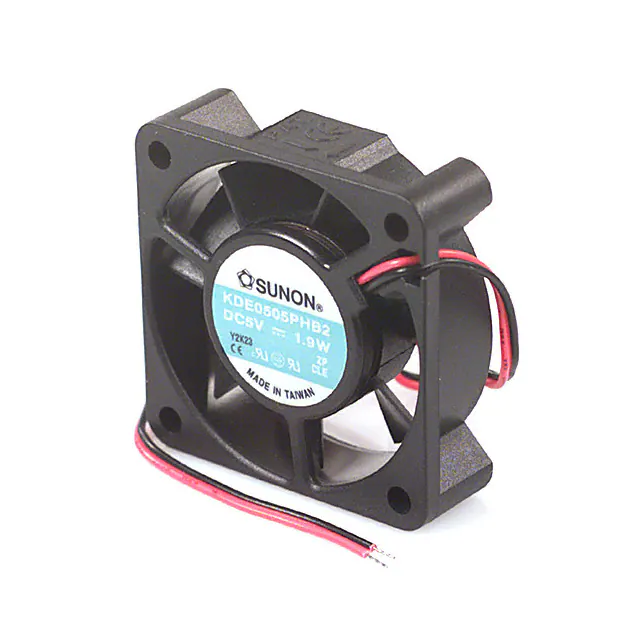

KDE0505PHB2FAN AXIAL 52X15.5MM 5VDC WIRE |
4,173 |
|
Datasheet |
|
KDE | - | Obsolete | 5VDC | Square - 52mm L x 52mm H | 15.50mm | 12.7 CFM (0.356m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 27.8dB(A) | 1.9 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|
KDE1204PFB1 ( MS.M )FAN AXIAL 40X10MM 12VDC WIRE |
3,071 |
|
Datasheet |
|
KDE | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.3 CFM (0.204m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | 1 W | 7400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
KDE0504PFB1 MS.MFAN AXIAL 40X10MM BALL 5VDC WIRE |
3,836 |
|
Datasheet |
|
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.3 CFM (0.204m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | 800 mW | 7400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
|
KD2404PFSX.11.GNFAN AXIAL 40X10MM 24VDC WIRE |
4,965 |
|
Datasheet |
|
KD | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
CFM-5015V-161-330FAN AXIAL 50X15MM 12VDC WIRE |
2,319 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 0.92 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
|
ASB0305LA-CF00FAN AXIAL 30X10MM 5VDC WIRE |
3,698 |
|
Datasheet |
|
ASB | Box | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 500 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.017 lb (7.71 g) |
|
|
ASB0305MA-CF00FAN AXIAL 30X10MM 5VDC WIRE |
3,534 |
|
Datasheet |
|
ASB | Box | Not For New Designs | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 550 mW | 9000 RPM | 3 Wire Leads | - | - | CE, cURus, VDE | 0.017 lb (7.71 g) |
|
|
EB40101S2-000U-999FAN AXIAL 40X10MM 12VDC WIRE |
4,574 |
|
Datasheet |
|
EB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | - | 27.0dB(A) | 1.08 W | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.038 lb (17.24 g) |
|
|
KDE1208PTV1.13.MS.A.GNFAN AXIAL 80X25MM 12VDC WIRE |
4,271 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | - | Vapo-Bearing™ | Tubeaxial | - | - | 1.6 W | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE1205PHV2.MS.A.F.GNFAN AXIAL 50X15MM 12VDC WIRE |
2,633 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | - | Vapo-Bearing™ | Tubeaxial | Speed Sensor (Tach) | - | 800 mW | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
CFM-4010V-058-206FAN AXIAL 40X10MM 5VDC WIRE |
4,351 |
|
Datasheet |
|
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 20.6dB(A) | 550 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
