DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1209PTV1.13.MS.A.GNFAN AXIAL 92X25MM 12VDC WIRE |
4,459 |
|
Datasheet |
 |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 34.0dB(A) | 1.9 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.209 lb (94.8 g) |
|
AUB0712HHDFAN AXIAL 70X20MM 12VDC WIRE |
3,853 |
|
- |
|
AUB | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 40.4 CFM (1.13m³/min) | 0.222 in H2O (55.3 Pa) | Superflo | Tubeaxial | - | 40.5dB(A) | 2.64 W | 4400 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.15 lb (68.04 g) |
|
05015SS-24R-WT-00FAN AXIAL 50X15.35MM 24VDC WIRE |
3,889 |
|
Datasheet |
|
05015SS | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.35mm | 14.8 CFM (0.414m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 35.5dB | 2.16 W | 6550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.055 lb (24.95 g) |
|
ASB0312HA-CFAN AXIAL 30X10MM 12VDC WIRE |
2,884 |
|
Datasheet |
|
ASB | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.214 in H2O (53.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 840 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.017 lb (7.71 g) |
|
CFM-4010C-065-251FAN AXIAL 40X10.5MM 5VDC WIRE |
3,752 |
|
Datasheet |
|
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 25.1dB(A) | 850 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

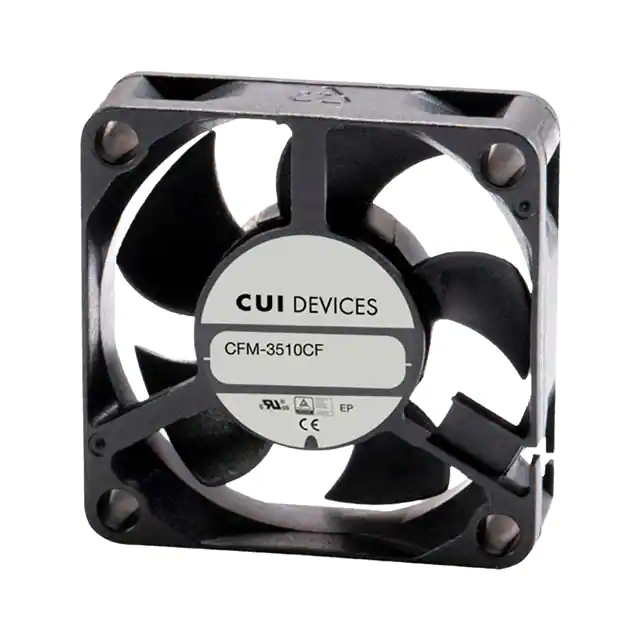

CFM-3510CF-170-222-22FAN AXIAL 35X10.3MM 12VDC WIRE |
2,108 |
|
Datasheet |
|
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 22.3dB(A) | 960 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

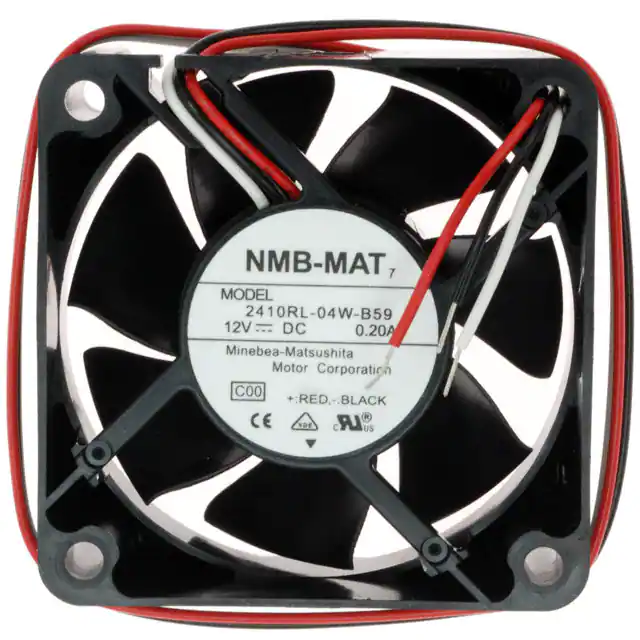

2410RL-04W-B59-C00FAN AXIAL 60X25MM 12VDC WIRE |
3,282 |
|
Datasheet |
|
2410RL | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.5dB | 1.8 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.143 lb (64.86 g) |
|
2410RL-04W-B79-C00FAN AXIAL 60X25MM 12VDC WIRE |
2,087 |
|
Datasheet |
|
2410RL | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.5 CFM (0.798m³/min) | 0.277 in H2O (69.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB | 3.24 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.143 lb (64.86 g) |
|

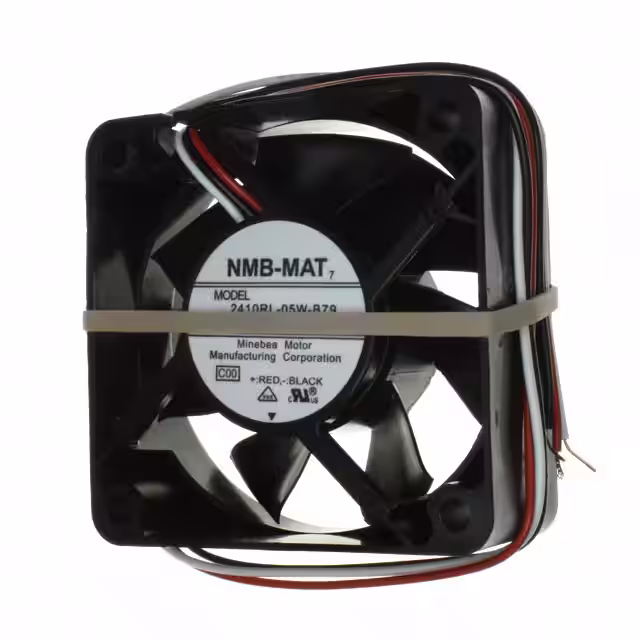

2410RL-05W-B79-C00FAN AXIAL 60X25MM 24VDC WIRE |
4,587 |
|
Datasheet |
|
2410RL | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.5 CFM (0.798m³/min) | 0.277 in H2O (69.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB | 2.4 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.143 lb (64.86 g) |
|
KD1206PHB1 H.MFAN AXIAL 60X15MM 12VDC WIRE |
2,676 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.5dB(A) | 1.8 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.086 lb (39.01 g) |
|
|
05015SS-12N-WA-00FAN AXIAL 50X15.35MM 12VDC WIRE |
3,619 |
|
- |
|
05015SS | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.35mm | 10.9 CFM (0.305m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 27.5dB(A) | 1.2 W | 5050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-6010C-150-326DC AXIAL FAN, 60 MM SQUARE, 10 M |
2,066 |
|
Datasheet |
|
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 18.1 CFM (0.507m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 36.3dB(A) | 2.76 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
ASB03505LA-AF00FAN AXIAL 35X10MM 5VDC WIRE |
3,473 |
|
Datasheet |
|
ASB | Box | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.4 CFM (0.095m³/min) | 0.049 in H2O (12.2 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 15.0dB(A) | 300 mW | 4500 RPM | 3 Wire Leads | - | - | CE, cURus, VDE | 0.023 lb (10.43 g) |
|
|
ASB03505MA-AF00FAN AXIAL 35X10MM 5VDC WIRE |
3,166 |
|
Datasheet |
|
ASB | Box | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.5 CFM (0.126m³/min) | 0.079 in H2O (19.6 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 18.5dB(A) | 400 mW | 5800 RPM | 3 Wire Leads | - | - | CE, cURus, VDE | 0.023 lb (10.43 g) |
|
|
ASB03505HA-AF00FAN AXIAL 35X10MM 5VDC WIRE |
3,410 |
|
Datasheet |
|
ASB | Box | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.108 in H2O (27.0 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 22.0dB(A) | 500 mW | 7000 RPM | 3 Wire Leads | - | - | CE, cURus, VDE | 0.023 lb (10.43 g) |
|
|
FIT0240FAN AXIAL BALL 12VDC WIRE |
2,552 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | - | - | 11.2 CFM (0.314m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, UL | - |
|
ASB0412HA-AFAN AXIAL 40X10MM 12VDC WIRE |
3,531 |
|
Datasheet |
|
ASB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 600 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
OD4028-12HSSFAN AXIAL 40X28MM 12VDC WIRE |
4,996 |
|
Datasheet |
|
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.0 CFM (0.336m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | Tubeaxial | - | 37.0dB | - | 8800 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | - |
|
|
OD4028-12LSSFAN AXIAL 40X28MM 12VDC WIRE |
3,393 |
|
Datasheet |
|
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 7.0 CFM (0.196m³/min) | 0.100 in H2O (24.9 Pa) | Sealed Sleeve | Tubeaxial | - | 25.0dB | - | 5000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | - |
|
|
OD4028-12MSSFAN AXIAL 40X28MM 12VDC WIRE |
2,974 |
|
Datasheet |
|
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 11.0 CFM (0.308m³/min) | 0.250 in H2O (62.3 Pa) | Sealed Sleeve | Tubeaxial | - | 35.0dB | - | 8000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | - |
