DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8025V-132-330FAN AXIAL 80X25MM 12VDC WIRE |
4,409 |
|
Datasheet |
 |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.66 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.167 lb (75.75 g) |
|
|
CFM-5010C-135-215DC AXIAL FAN, 50 MM SQUARE, 10 M |
3,202 |
|
Datasheet |
|
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 21.5dB(A) | 0.48 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
KD1208PTB2 (2) (H)FAN AXIAL 80X25MM 12VDC WIRE |
3,784 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.1 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.204 lb (92.53 g) |
.H.jpg)
|

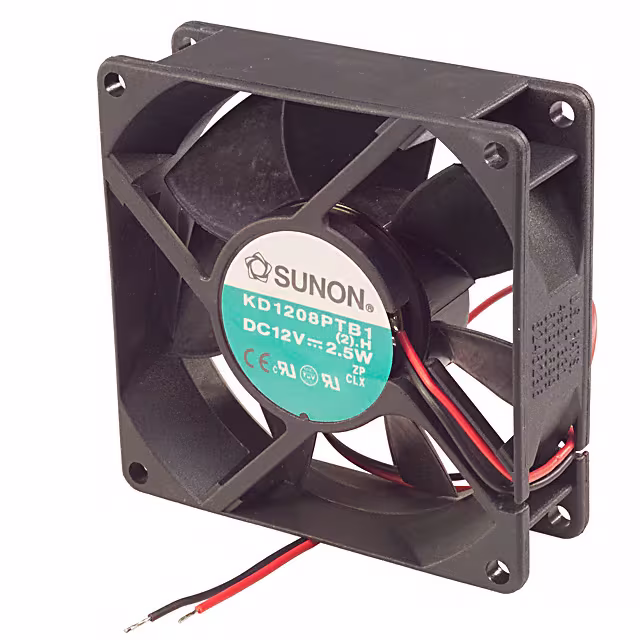

KD1208PTB1 (2) HFAN AXIAL 80X25MM 12VDC WIRE |
4,315 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.3 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.204 lb (92.53 g) |
|
|
KD1208PTB3 (2) HFAN AXIAL 80X25MM 12VDC WIRE |
2,226 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.4 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.204 lb (92.53 g) |
|
CFM-4010C-050-195-20FAN AXIAL 40X10.5MM 5VDC WIRE |
2,179 |
|
Datasheet |
|
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.5dB(A) | 400 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
KDE0504PFV1.11.MS.AF.GNFAN AXIAL 40X10MM VAPO 5VDC WIRE |
2,218 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.037 lb (16.78 g) |
|
|
CFM-5010C-155-313DC AXIAL FAN, 50 MM SQUARE, 10 M |
2,553 |
|
Datasheet |
|
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.8 CFM (0.330m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 31.3dB(A) | 1.56 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
KD1209PTB3 (2) HFAN AXIAL 92X25MM 12VDC WIRE |
4,112 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.6 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
|
|
KD1209PTB2 (2) HFAN AXIAL 92X25MM 12VDC WIRE |
4,899 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.5 CFM (1.36m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.4 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
.H.jpg)
|

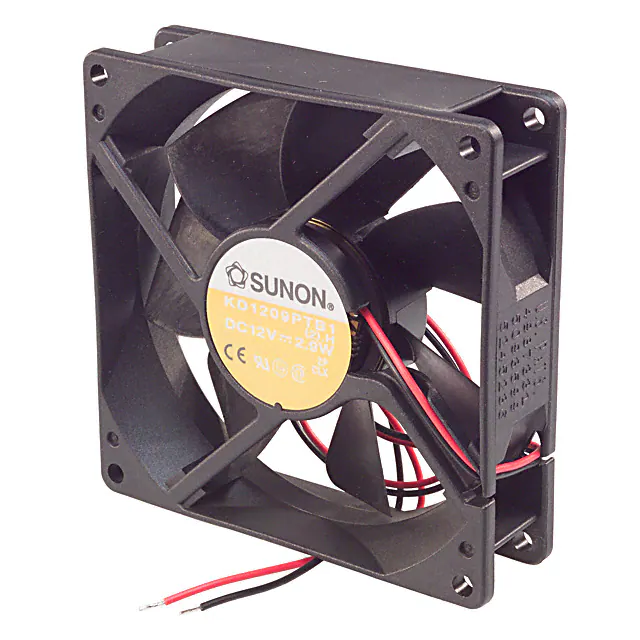

KD1209PTB1(2) HFAN AXIAL 92X25MM 12VDC WIRE |
4,163 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 49.5 CFM (1.39m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 2.5 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
|
MH4028E12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
4,117 |
|
Datasheet |
|
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.5 CFM (0.685m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.0dB(A) | - | 15000 RPM | 4 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
|
CFM-4020CF-175-306DC AXIAL FAN, 40 MM SQUARE, 20 M |
3,097 |
|
Datasheet |
|
CFM-40CF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.6dB(A) | 1.32 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EE40101S1-0000-999FAN AXIAL 40X10MM 12VDC WIRE |
4,131 |
|
Datasheet |
|
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 1.2 W | 7000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
|
KD1204PFB1FAN AXIAL 40X10.5MM 12VDC WIRE |
3,364 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 8.3 CFM (0.232m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.4 W | 8400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
ASB0312HA-AF00FAN AXIAL 30X10MM 12VDC WIRE |
2,430 |
|
Datasheet |
|
ASB | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 960 mW | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.02 lb (9.07 g) |
|
|
CFM-4010C-165-251-20FAN AXIAL 40X10.5MM 12VDC WIRE |
3,053 |
|
Datasheet |
|
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.1dB(A) | 720 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
ASB0412VHA-AF0BFAN AXL FRAMELSS 38X10.5MM 12VDC |
2,978 |
|
Datasheet |
|
ASB - Frameless | Box | Obsolete | 12VDC | Round - 38mm Dia | 10.50mm | 3.1 CFM (0.087m³/min) | 0.116 in H2O (28.8 Pa) | Sleeve | Tubeaxial, Frameless | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.2 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | 0.025 lb (11.34 g) |
|
|
AUB0512MBFAN AXIAL 50X15MM 12VDC WIRE |
3,730 |
|
- |
|
AUB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
CFM-5015V-132-154FAN AXIAL 50X15MM 12VDC WIRE |
4,715 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 7.7 CFM (0.216m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 15.4dB(A) | 0.4 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
