DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF45100V1-1000U-S995VDC FAN 45X10MM TACH/PWM |
3,131 |
|
Datasheet |
 |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.5dB(A) | 1.03 W | 6500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45101V1-1000U-S9912VDC FAN 45X10MM TACH/PWM |
3,326 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.5dB(A) | 1.2 W | 6500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V2-1000U-S995VDC FAN 45X10MM TACH/PWM |
2,239 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.1dB(A) | 0.51 W | 5000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-6015CF-255-375FAN AXIAL 60X15.5MM 24VDC WIRE |
2,217 |
|
- |
|
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 24.2 CFM (0.678m³/min) | 0.230 in H2O (57.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.6dB(A) | 3.6 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025V-226-280FAN AXIAL 80X25MM 24VDC WIRE |
2,365 |
|
Datasheet |
|
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 28.0dB(A) | 1.16 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
CFM-5015CF-160-374FAN AXIAL 50X15.5MM 12VDC WIRE |
3,176 |
|
- |
|
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 15.6 CFM (0.437m³/min) | 0.200 in H2O (49.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.4dB(A) | 1.8 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020CF-075-306FAN AXIAL 40X20MM 5VDC WIRE |
3,783 |
|
- |
|
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.6dB(A) | 1.6 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-295-342FAN AXIAL 40X20MM 24VDC WIRE |
4,390 |
|
- |
|
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.2dB(A) | 360 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020C-260-367DC AXIAL FAN, 50 MM SQUARE, 20 M |
2,601 |
|
Datasheet |
|
CFM-50C | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 18.2 CFM (0.510m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 36.7dB(A) | 1.68 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FBL08A12L1AFAN AXIAL 80X25.5MM 12VDC WIRE |
3,833 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 820 mW | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
FBL08A12M1AFAN AXIAL 80X25.5MM 12VDC WIRE |
3,365 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.49 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|

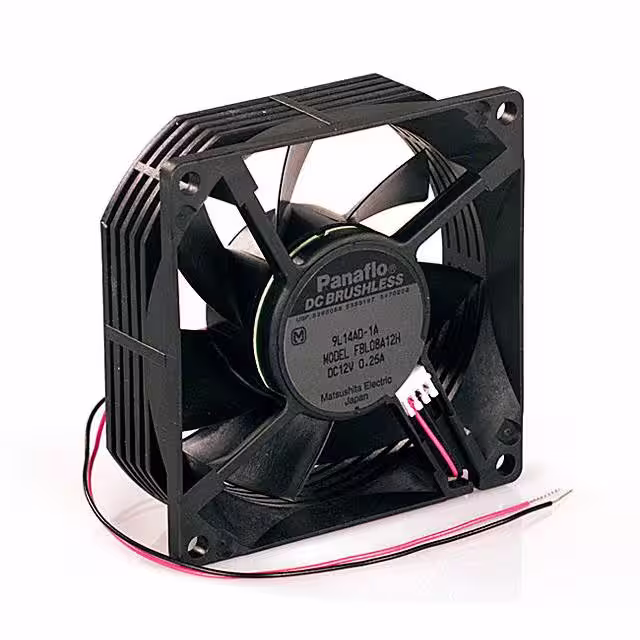

FBL08A12H1AFAN AXIAL 80X25.5MM 12VDC WIRE |
3,324 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.08 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|

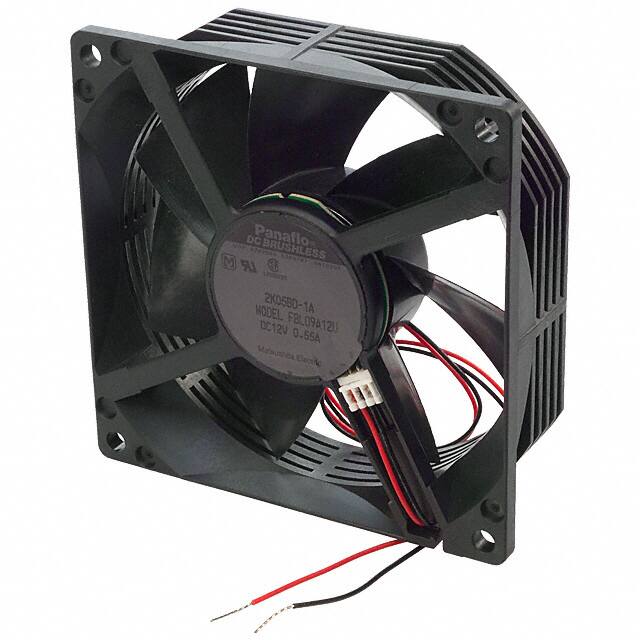

FBL09A12U1AFAN AXIAL 92X25.5MM 12VDC WIRE |
4,526 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 54.7 CFM (1.53m³/min) | - | Hydro-wave (HWB) | Tubeaxial | - | - | 6.6 W | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

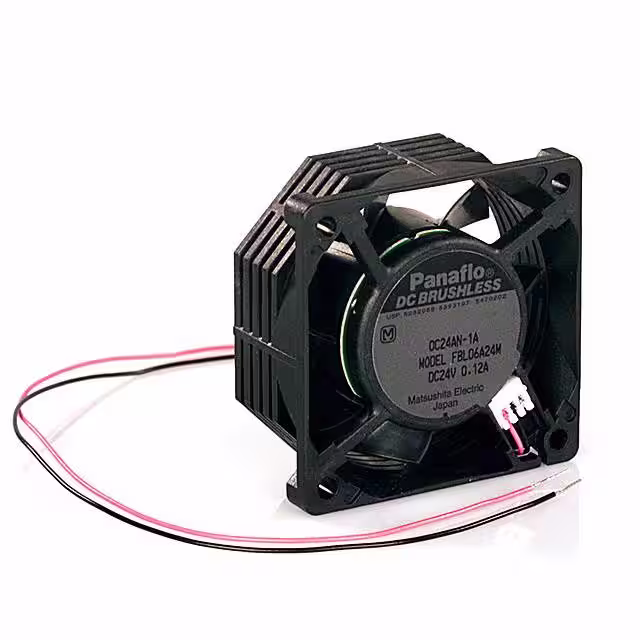

FBL06A24M1AFAN AXIAL 60X25.5MM 24VDC WIRE |
4,660 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 16.6 CFM (0.465m³/min) | 0.155 in H2O (38.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.68 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|

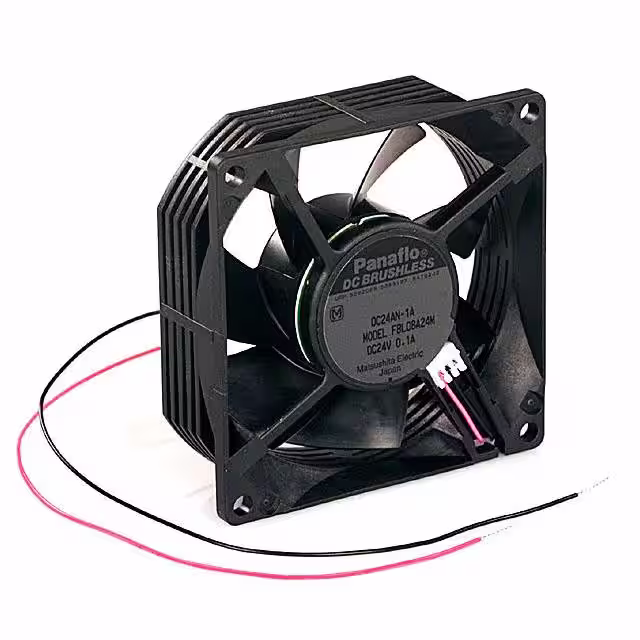

FBL08A24M1AFAN AXIAL 80X25.5MM 24VDC WIRE |
4,722 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.7 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|

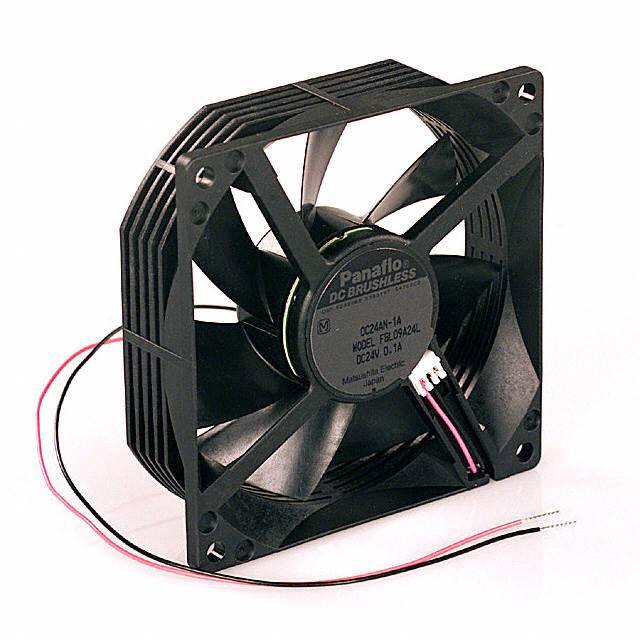

FBL09A24L1AFAN AXIAL 92X25.5MM 24VDC WIRE |
4,630 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 27.0dB | 1.92 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

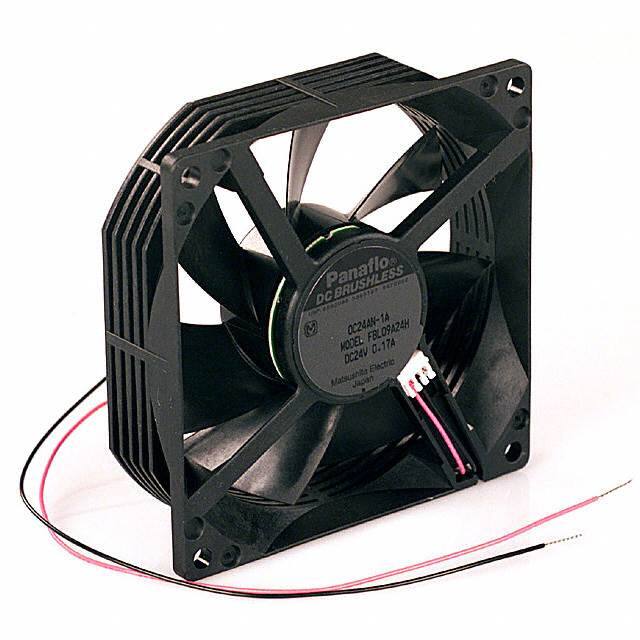

FBL09A24H1AFAN AXIAL 92X25.5MM 24VDC WIRE |
3,985 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 3.36 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
.jpg)
|
KD2406PTB1 (2).GNFAN AXIAL 60X25MM 24VDC WIRE |
4,035 |
|
Datasheet |
|
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 2 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.123 lb (55.79 g) |
|
|
EF80251S2-1000U-A99Thermal Products |
3,221 |
|
Datasheet |
|
EF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.14 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD0505PHS2.GNFAN AXIAL 50X15MM 5VDC WIRE |
4,996 |
|
Datasheet |
|
KD | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 900 mW | 4700 RPM | 2 Wire Leads | - | - | - | - |
