DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM-5010C-170-361-20DC AXIAL FAN, 50 MM SQUARE, 10 M |
4,322 |
|
Datasheet |
 |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 14.0 CFM (0.392m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.5dB(A) | 1.8 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

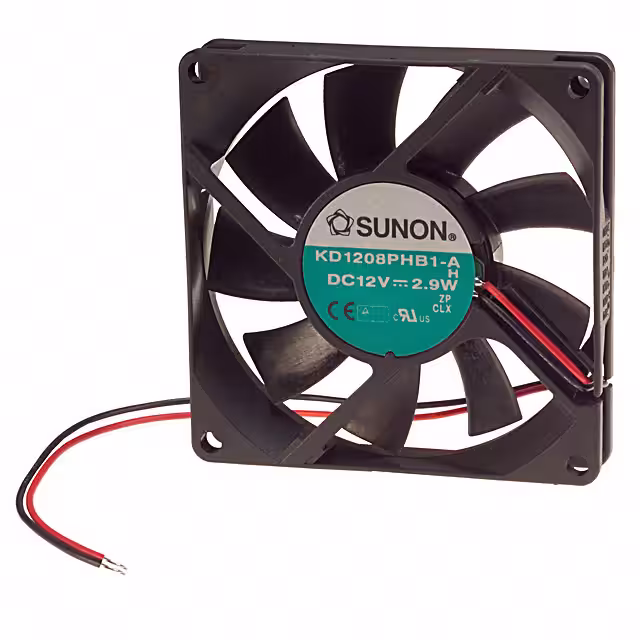

KD1208PHB1- A.H.FAN AXIAL 80X15MM 12VDC WIRE |
4,622 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 35.0 CFM (0.980m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 39.5dB(A) | 2.9 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
|
05015SS-24N-WL-D0DC AXIAL FAN |
2,144 |
|
Datasheet |
|
05015SS | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 10.9 CFM (0.31m³/min) | 0.124 in H2O (30.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB | 1.2 W | 5050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-24M-WT-D0DC AXIAL FAN |
3,850 |
|
Datasheet |
|
05015SS | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 10.0 CFM (0.280m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.0dB | 0.96 W | 4550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-24N-WT-D0DC AXIAL FAN |
4,821 |
|
Datasheet |
|
05015SS | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 10.9 CFM (0.31m³/min) | 0.124 in H2O (30.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB | 1.2 W | 5050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-24R-WL-D0DC AXIAL FAN |
4,557 |
|
Datasheet |
|
05015SS | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.40mm | 15.0 CFM (0.420m³/min) | 0.205 in H2O (51.2 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.5dB | 2.16 W | 6550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-24M-WL-D0DC AXIAL FAN |
3,322 |
|
Datasheet |
|
05015SS | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 10.0 CFM (0.280m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB | 0.96 W | 4550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-24R-WT-D0DC AXIAL FAN |
3,938 |
|
Datasheet |
|
05015SS | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.40mm | 14.8 CFM (0.414m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 35.5dB | 2.16 W | 6550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FBL08A24L1AFAN AXIAL 80X25.5MM 24VDC WIRE |
4,723 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.3 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|

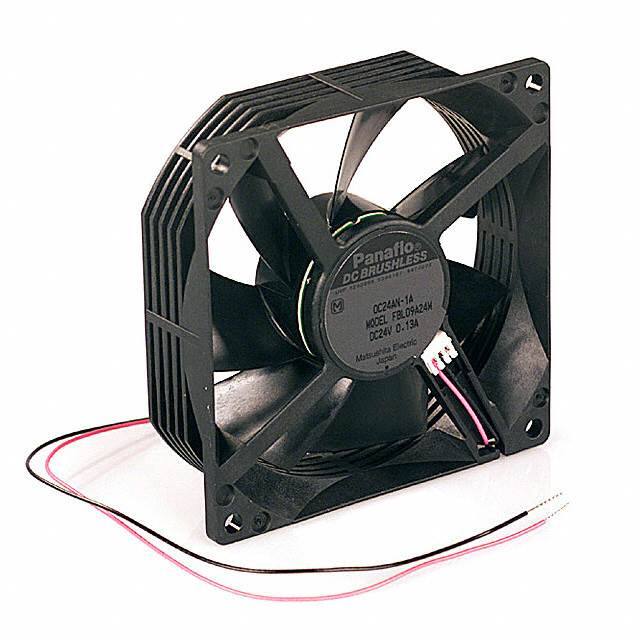

FBL09A24M1AFAN AXIAL 92X25.5MM 24VDC WIRE |
3,804 |
|
Datasheet |
|
FBL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.64 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
EF80251S1-1000U-G9912VDC FAN 80X25MM ALARM |
2,849 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.44 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80251S2-1000U-G9912VDC FAN 80X25MM ALARM |
3,832 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.14 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80251S3-1000U-G9912VDC FAN 80X25MM ALARM |
2,616 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.84 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
AUB0912VH-CF00FAN AXIAL 92X25.4MM 12VDC |
2,582 |
|
Datasheet |
|
AUB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 72.0 CFM (2.02m³/min) | 0.287 in H2O (71.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.8 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.231 lb (104.78 g) |
|
AUB0824VHFAN AXIAL 80X25.4MM 24VDC |
3,060 |
|
Datasheet |
|
AUB | Box | Not For New Designs | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.64 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.195 lb (88.45 g) |
|
CFM-5020S-145-323-20FAN AXIAL 50X20MM 12VDC WIRE |
2,553 |
|
- |
|
CFM-50S | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 12.2 CFM (0.342m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.3dB(A) | 1.68 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020CF-275-306-20FAN AXIAL 40X20MM 24VDC WIRE |
4,586 |
|
- |
|
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.6dB(A) | 1.92 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020C-245-306-20DC AXIAL FAN, 50 MM SQUARE, 20 M |
4,274 |
|
Datasheet |
|
CFM-50C | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 13.6 CFM (0.381m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.6dB(A) | 0.96 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020C-230-217-20DC AXIAL FAN, 50 MM SQUARE, 20 M |
2,613 |
|
Datasheet |
|
CFM-50C | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 9.1 CFM (0.255m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.7dB(A) | 0.72 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020C-230-257DC AXIAL FAN, 60 MM SQUARE, 20 M |
4,239 |
|
Datasheet |
|
CFM-60C | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.6 CFM (0.409m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 19.6dB(A) | 0.72 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
