DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM-2507CF-1140-313-22DC AXIAL FAN, 25 MM SQUARE, 7 MM |
2,896 |
|
Datasheet |
 |
CFM-25CF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.00mm | 3.1 CFM (0.087m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 31.4dB(A) | 2.04 W | 14000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
GDA4010-12BBFAN AXIAL 40X10MM 12VDC WIRE |
3,368 |
|
Datasheet |
|
Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.5dB(A) | 1.1 W | 7000 RPM | 3 Wire Leads | - | - | - | 0.035 lb (15.88 g) |
|
KDE1206PFB2-8FAN AXIAL 60X10.5MM 12VDC WIRE |
3,154 |
|
Datasheet |
|
KDE | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 14.5 CFM (0.406m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 29.4dB(A) | 1.2 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.048 lb (21.77 g) |
|
|
CFM-2006CF-0100-189-20DC AXIAL FAN, 20 MM SQUARE, 6 MM |
3,666 |
|
Datasheet |
|
CFM-20CF | Box | Active | 5VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.600 CFM (0.017m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.9dB(A) | 400 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-035-293DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,869 |
|
Datasheet |
|
CBM-50CF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.3dB(A) | 700 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-045-348DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,345 |
|
Datasheet |
|
CBM-50CF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 34.8dB(A) | 1.05 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-135-293DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,119 |
|
Datasheet |
|
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.4dB(A) | 600 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-145-348DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,558 |
|
Datasheet |
|
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 34.8dB(A) | 1.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020C-130-216DC BLOWER, 40 MM SQUARE, 20 MM, |
3,435 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 1.3 CFM (0.036m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.6dB(A) | 0.24 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

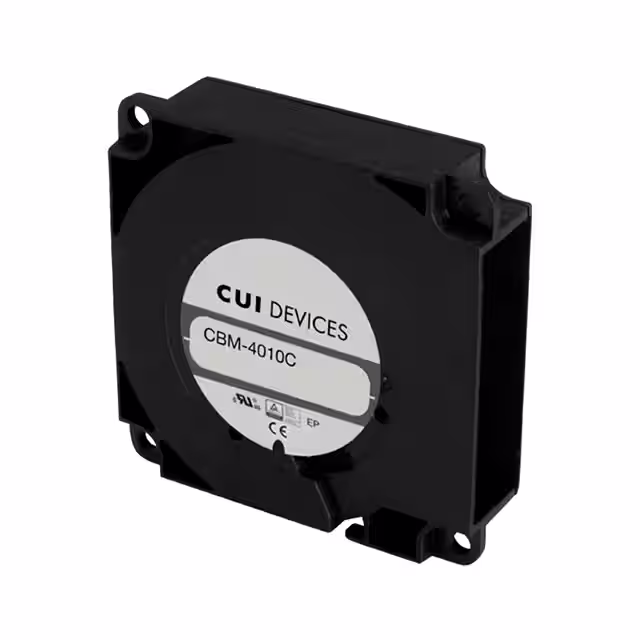

CBM-4010C-160-267-22FAN BLOWER 39.5X10MM 12VDC WIRE |
4,500 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 26.7dB(A) | 1.32 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-4010C-160-267-20FAN BLOWER 39.5X10MM 12VDC WIRE |
4,198 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 26.7dB(A) | 1.32 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4010C-140-178-20FAN BLOWER 39.5X10MM 12VDC WIRE |
2,490 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 17.8dB(A) | 960 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
KD2445PFSX.11.GNFAN AXIAL 45X10MM 24VDC WIRE |
3,854 |
|
Datasheet |
|
MagLev® KD | Bulk | Active | 24VDC | Square - 45mm L x 45mm H | 10.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
04015SS-24M-AA-00FAN AXIAL 40X15MM 24VDC WIRE |
3,799 |
|
- |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 29.0dB(A) | 960 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-05M-AA-00FAN AXIAL 40X15MM 5VDC WIRE |
2,435 |
|
- |
|
04015SS | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 29.0dB | 650 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-05N-AA-00FAN AXIAL 40X15MM 5VDC WIRE |
4,776 |
|
- |
|
04015SS | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 32.0dB | 900 mW | 8300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
KDE1207PTV1.13.MS.A.GNFAN AXIAL 70X25MM 12VDC WIRE |
2,579 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 1.4 W | 3200 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.154 lb (69.85 g) |
|
CFM-4020CF-095-342-20FAN AXIAL 40X20MM 5VDC WIRE |
2,565 |
|
- |
|
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 2.35 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-3007CF-085-264DC AXIAL FAN, 30 MM SQUARE, 7 MM |
3,086 |
|
Datasheet |
|
CFM-30CF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 7.50mm | 2.8 CFM (0.078m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 26.4dB(A) | 1 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
05015SS-12R-WT-D0FAN AXIAL 50X15MM 12VDC WIRE |
2,736 |
|
Datasheet |
|
05015SS | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.8 CFM (0.414m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.5dB | 1.68 W | 6550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
