DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

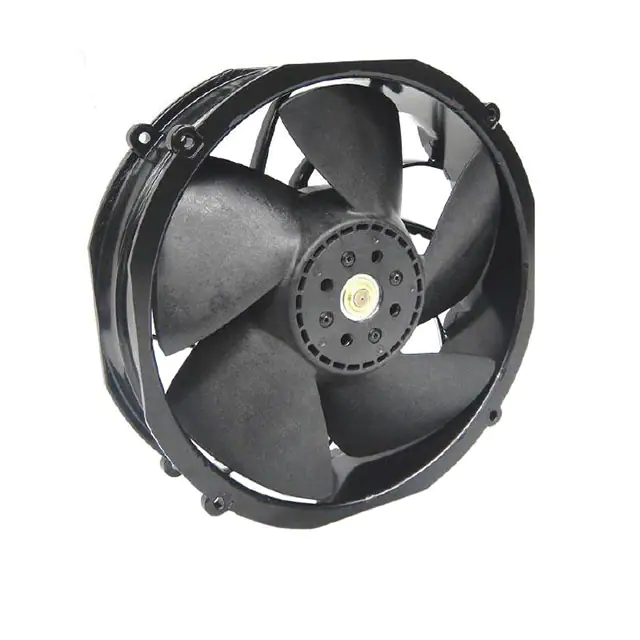

R200A0-051-D0760FAN AXIAL 200X51MM 48VDC WIRE |
48 |
|
Datasheet |
 |
R200 | Bulk | Active | 48VDC | Round - 200mm Dia | 51.00mm | 783.0 CFM (21.92m³/min) | 4.120 in H2O (1028.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 139.2 W | 6500 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.6 lbs (1.2 kg) |
|

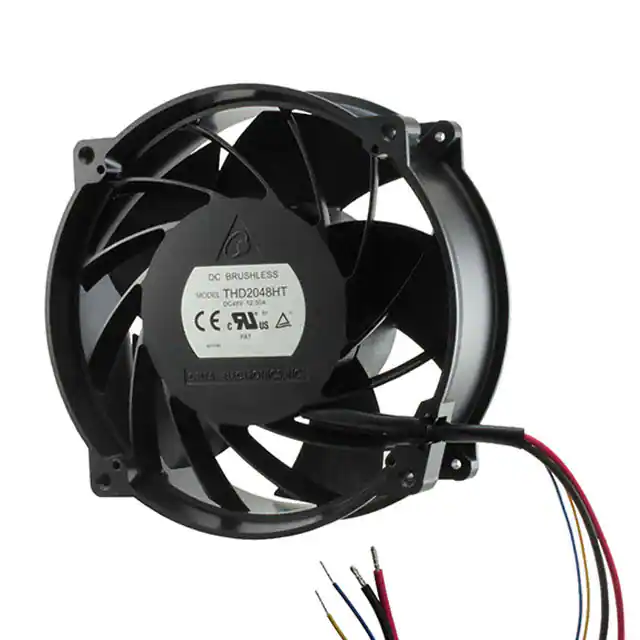

THD2048HTFAN AXIAL 200X70MM 48VDC WIRE |
1,004 |
|
Datasheet |
|
THD - Bionic Blade | Box | Active | 48VDC | Round - 200mm Dia | 70.00mm | 1026.8 CFM (28.75m³/min) | 4.945 in H2O (1232.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 384 W | 7400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 3.5 lbs (1.6 kg) |
|

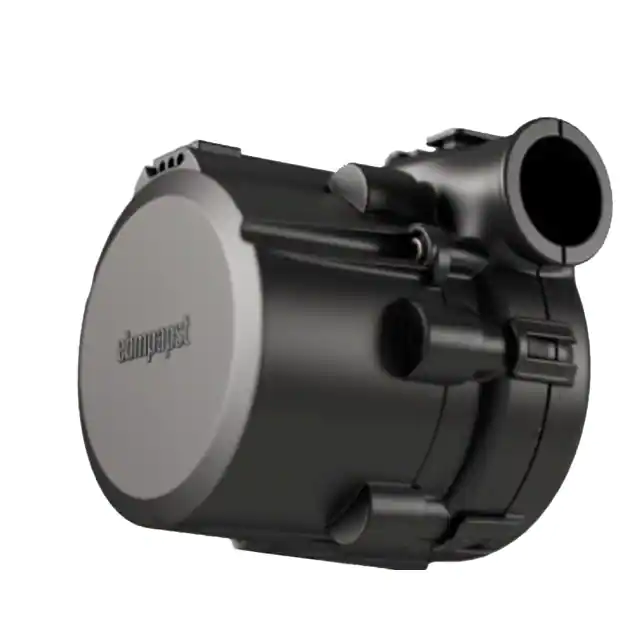

RVE45-3/54/2PFAN BLOWER CF 64.6X65.5MM 24VDC |
159 |
|
Datasheet |
|
RVE45 | Bulk | Active | 24VDC | Rectangular/Rounded - 64.6mm L x 64.5mm H | 65.50mm | 17.7 CFM (0.496m³/min) | 18.066 in H2O (4500.0 Pa) | Ball | Blower, Centrifugal | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 36 W | 36500 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|

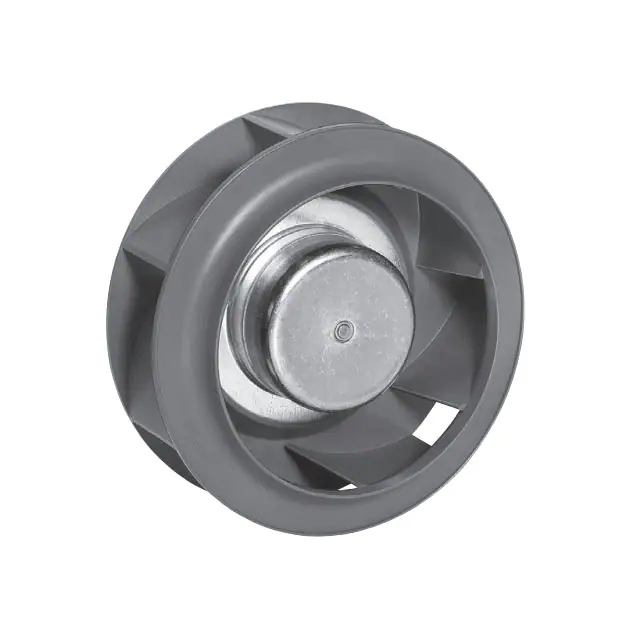

R1G175-AB63-02FAN IMP MTRZD 175X69MM 24VDC |
589 |
|
Datasheet |
|
R1G175 | Bulk | Active | 24VDC | Round - 175mm Dia | 69.00mm | 330.0 CFM (9.24m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 34 W | 3100 RPM | 4 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | 1.6 lbs (725.7 g) |
|
2214F/2TDHHOFAN AXIAL 220X50.8MM 24VDC WIRE |
610 |
|
Datasheet |
|
2200FTD | Box | Active | 24VDC | Round - 220mm Dia | 50.80mm | 553.0 CFM (15.48m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 35 W | 5000 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | UL | 2.3 lbs (1 kg) |
|

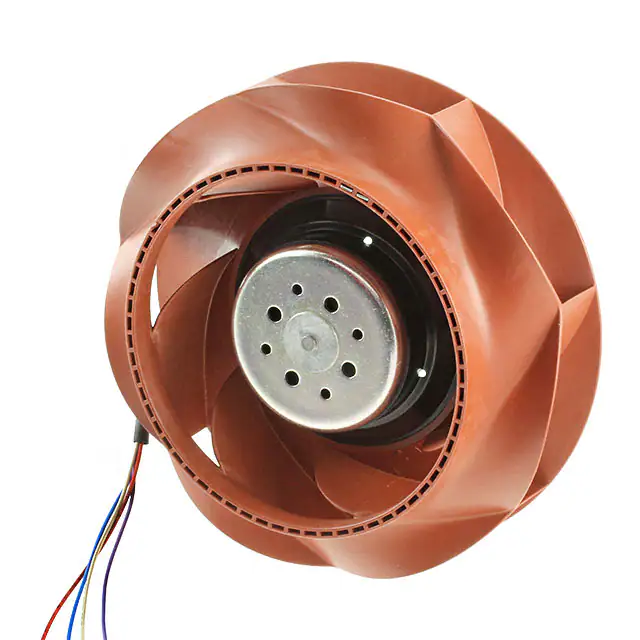

RER190-39/14/2TDLOUFAN IMP MTRZD 190X69MM 24VDC |
44 |
|
Datasheet |
|
RER190TDU | Bulk | Active | 24VDC | Round - 190mm Dia | 69.00mm | 376.7 CFM (10.55m³/min) | - | Ball | Motorized Impellers | - | - | 57.1 W | 2900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | UL | 1.9 lbs (861.8 g) |
|

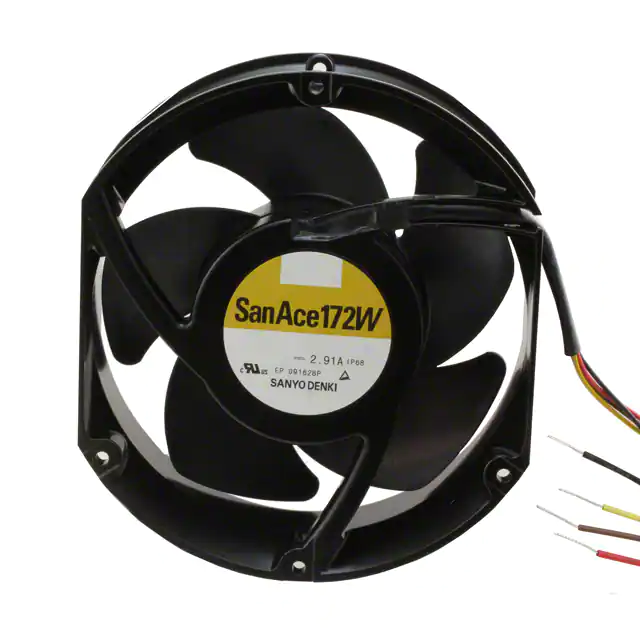

9WG5748P5G001FAN AXIAL 172X51MM 48VDC WIRE |
272 |
|
Datasheet |
|
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 140 W | 8600 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.9 lbs (860.0 g) |
|

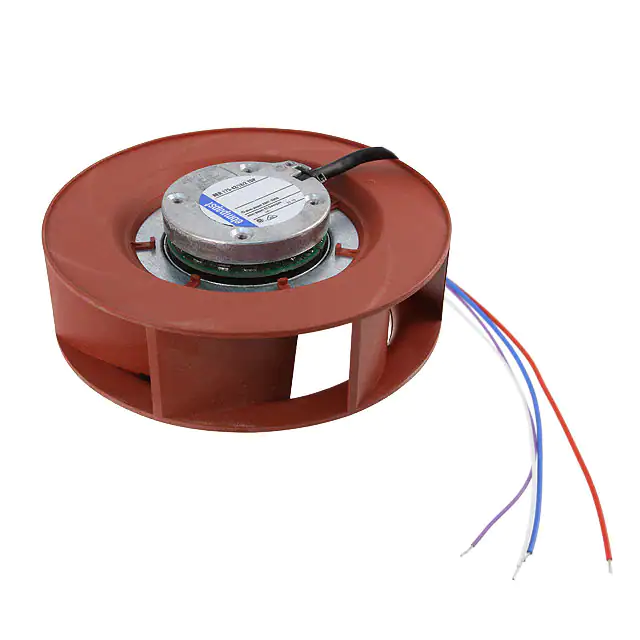

RER175-42/18/2TDPFAN IMP MTRZD 175X69MM 48VDC |
130 |
|
Datasheet |
|
RER175TD | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 576.8 CFM (16.15m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 166 W | 5400 RPM | 4 Wire Leads | - | - | - | 1.7 lbs (771.1 g) |
|

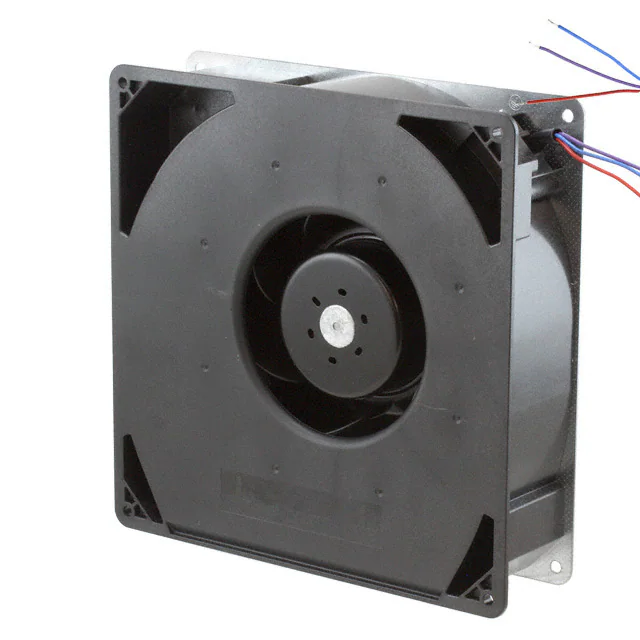

RG160-28/14NTDAFAN BLOWER CF 220X56MM 24VDC |
111 |
|
Datasheet |
|
RG160NTD | Box | Active | 24VDC | Square - 220mm L x 220mm H | 56.00mm | 181.3 CFM (5.08m³/min) | - | Ball | Blower, Centrifugal | Temperature Sensor | - | 64 W | 4200 RPM | 3 Wire Leads | IP20 | -4 ~ 140°F (-20 ~ 60°C) | - | 3.1 lbs (1.4 kg) |
|
9HV5724P5H001FAN AXIAL 172X51MM 24VDC WIRE |
508 |
|
Datasheet |
|
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 434.0 CFM (12.15m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 120 W | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|

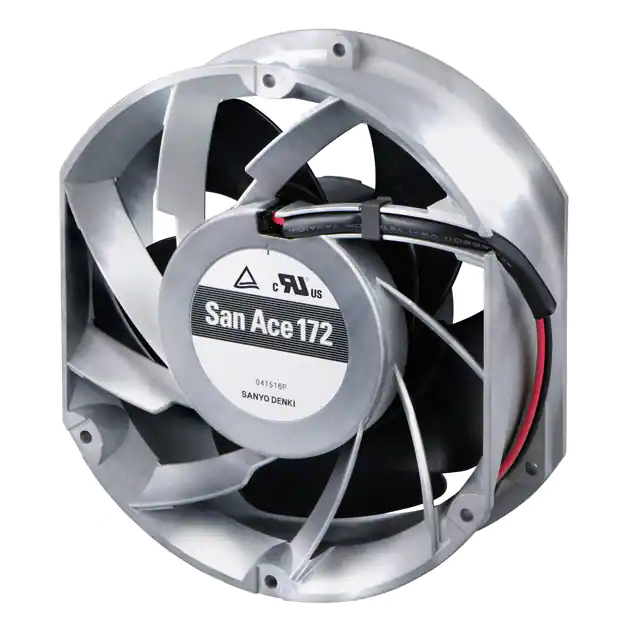

9HV5748P5G001FAN AXIAL 172X51MM 48VDC WIRE |
49 |
|
Datasheet |
|
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 568.0 CFM (15.90m³/min) | 6.430 in H2O (1601.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 83.0dB(A) | 240 W | 10500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|

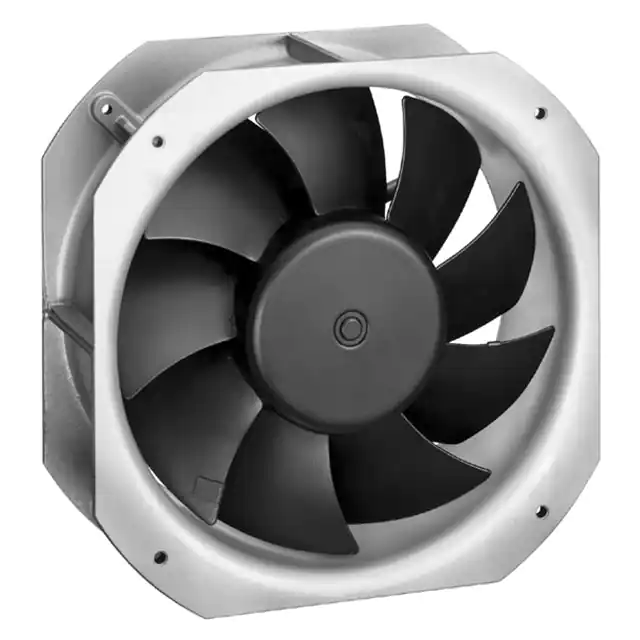

W1G200-HH01-52FAN AXIAL 225X80MM BALL 48VDC |
100 |
|
Datasheet |
|
W1G200 | Box | Active | 48VDC | Square - 225mm L x 225mm H | 80.00mm | 591.5 CFM (16.56m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 45 W | 2750 RPM | Terminal Block | - | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, EAC, UL | 4.7 lbs (2.1 kg) |
|
W3G300-ME48-11FAN AXIAL 337X76.7MM 26VDC RECT |
111 |
|
Datasheet |
|
W2G300 | Bulk | Active | 26VDC | Round - 337mm Dia | 76.70mm | 1815.0 CFM (50.82m³/min) | - | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 80.0dB(A) | 320 W | 3650 RPM | 4 Position Rectangular Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | EAC | - |
|
|
8315100198DIAFORCE120 |
44 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 86.00mm | 400.5 CFM (11.21m³/min) | 12.526 in H2O (3119.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 83.5dB(A) | 450 W | 17200 RPM | 4 Wire Leads | IP20 | -13 ~ 158°F (-25 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|

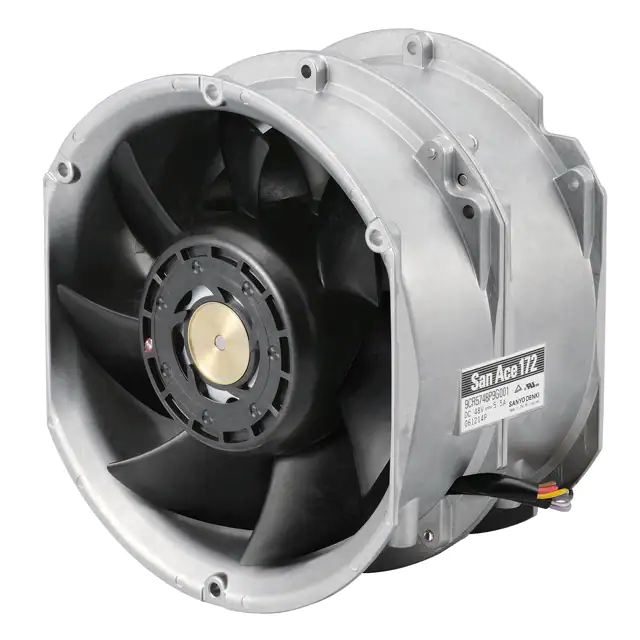

9CR5748P9G001FAN AXIAL DUAL 172X102MM 48VDC |
114 |
|
Datasheet |
|
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 102.0mm | 636.0 CFM (17.81m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 83.0dB(A) | 264 W | 7300 Front, 6400 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 3.5 lbs (1.6 kg) |
|
4468FAN AXIAL 30X8MM 5VDC |
578 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 8.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Position Rectangular Connector | - | - | - | - |
|

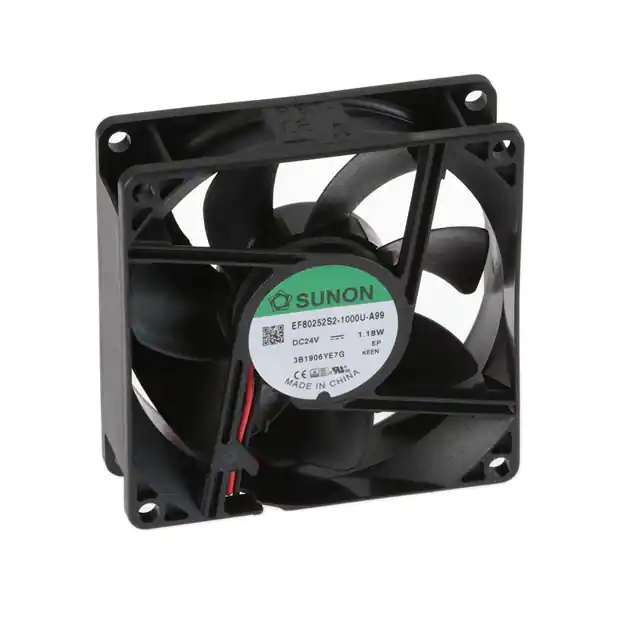

EF80252S2-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,853 |
|
Datasheet |
|
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.01 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
CFM-8025V-120-204-20FAN AXIAL 80X25MM 12VDC WIRE |
823 |
|
Datasheet |
|
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.4dB(A) | 580 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
FAD1-04010BHLW11FAN AXIAL 40X10MM 5VDC WIRE |
514 |
|
Datasheet |
|
FAD1-04010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | Hydrodynamic | Tubeaxial | - | 21.0dB(A) | 350 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
|
EE40101S1-1000U-999FAN AXIAL 40X10MM 12VDC WIRE |
1,343 |
|
Datasheet |
|
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | - | 28.2dB(A) | 990 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.036 lb (16.33 g) |
