DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF60201V3-1000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
3,391 |
|
Datasheet |
 |
MagLev® MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 480 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
|

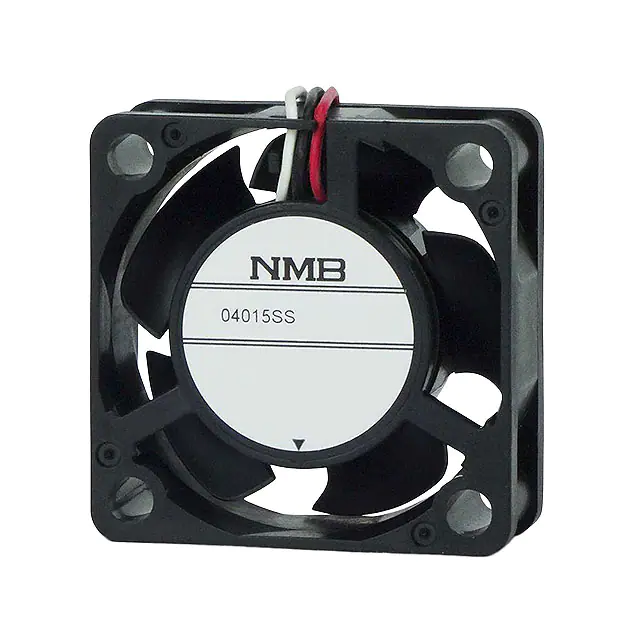

04015SS-24N-AT-00FAN AXIAL 40X15MM 24VDC WIRE |
872 |
|
Datasheet |
|
04015SS | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 1.2 W | 8300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.051 lb (23.13 g) |
|
03010SS-05N-AT-00FAN AXIAL 30X10MM 5VDC WIRE |
1,546 |
|
Datasheet |
|
03010SS | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.05 W | 10500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.019 lb (8.62 g) |
|
FAD1-09225CBLW11FAN AXIAL 92.5X25MM 12VDC WIRE |
1,020 |
|
Datasheet |
|
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 40.7 CFM (1.14m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | - | 29.2dB(A) | 1.2 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
MF40100V1-1000U-G99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
2,209 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.3dB(A) | 680 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.035 lb (15.88 g) |
|
CFM-5015V-138-201-20FAN AXIAL 50X15MM 12VDC WIRE |
931 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.1dB(A) | 0.48 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
|

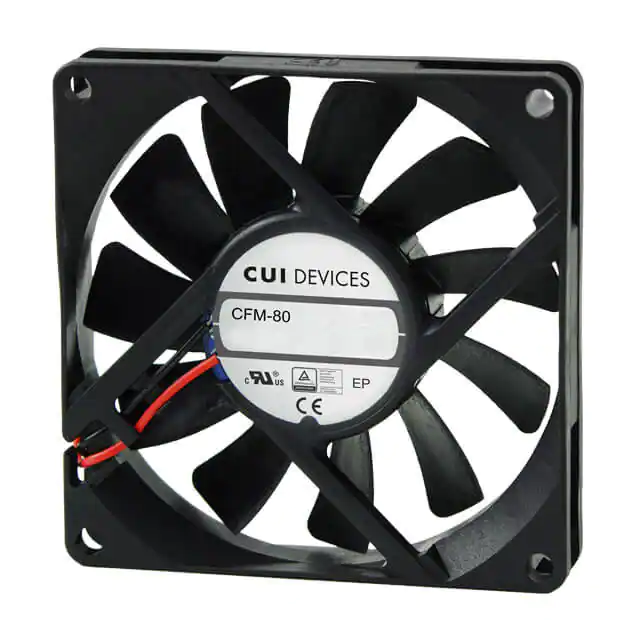

CFM-8025V-132-330-20FAN AXIAL 80X25MM 12VDC WIRE |
1,660 |
|
Datasheet |
|
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.1 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.66 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
|
CFM-5010V-155-310-20FAN AXIAL 50X10MM 12VDC WIRE |
1,036 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.7dB(A) | 0.98 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
|
FAD1-06020CHKW11FAN AXIAL 60X20MM 12VDC WIRE |
547 |
|
Datasheet |
|
FAD1-06020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.283 in H2O (70.5 Pa) | Hydrodynamic | Tubeaxial | - | 39.0dB(A) | 2.4 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.108 lb (48.99 g) |
|
|
03010SS-05N-AA-00FAN AXIAL 30X10MM 5VDC WIRE |
790 |
|
Datasheet |
|
03010SS | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 28.0dB | 1.05 W | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
03010SS-05N-AL-00FAN AXIAL 30X10MM 5VDC WIRE |
776 |
|
Datasheet |
|
03010SS | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB | 1.05 W | 10500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-4010V-150-157-20FAN AXIAL 40X10MM 12VDC WIRE |
1,590 |
|
Datasheet |
|
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.7dB(A) | 460 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
|
CFM-5015V-172-381FAN AXIAL 50X15MM 12VDC WIRE |
144 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 18.7 CFM (0.524m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 38.1dB(A) | 1.53 W | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
|

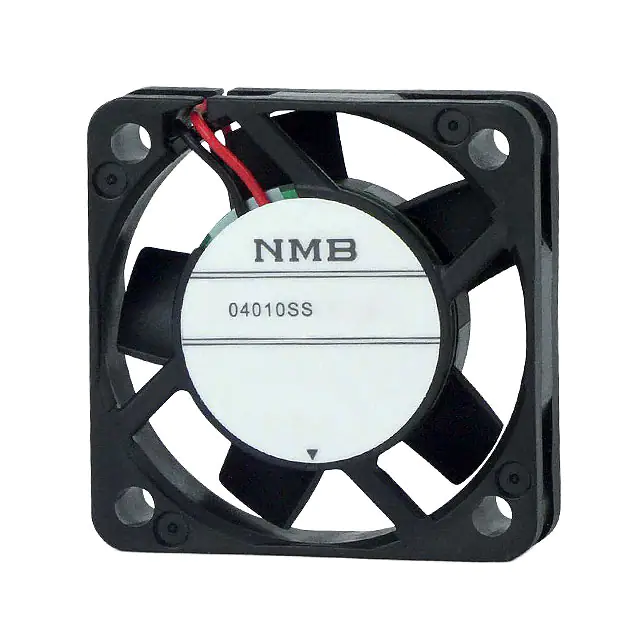

04010SS-12N-AT-00FAN AXIAL 40X10MM 12VDC WIRE |
823 |
|
Datasheet |
|
04010SS | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 700 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.035 lb (15.88 g) |
|
EE80251S3-1000U-999FAN AXIAL 80X25MM 12VDC WIRE |
101 |
|
Datasheet |
|
EE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | 1.06 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
MF80251V2-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
1,872 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 1.11 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
|

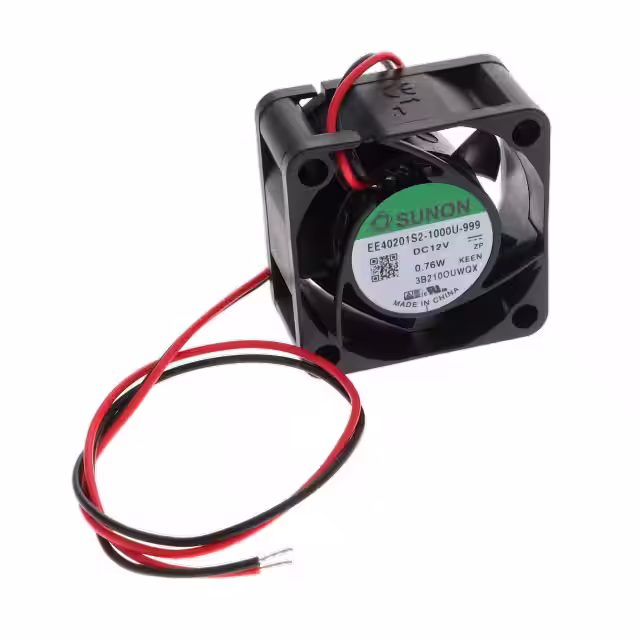

EE40201S2-1000U-999FAN AXIAL 40X20MM 12VDC WIRE |
318 |
|
Datasheet |
|
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | 760 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
|
CFM-8025V-120-204FAN AXIAL 80X25MM 12VDC WIRE |
192 |
|
Datasheet |
|
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 20.4dB(A) | 580 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
|
CFM-4020V-145-123FAN AXIAL 40X20MM 12VDC WIRE |
3,098 |
|
Datasheet |
|
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 12.3dB(A) | 460 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-5015V-150-290FAN AXIAL 50X15MM 12VDC WIRE |
1,266 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 29.0dB(A) | 0.65 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
