DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC0922512H2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
2,314 |
|
Datasheet |
 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.4 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512J2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
3,416 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.08 W | 2100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512L2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
2,138 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.32 W | 2450 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512M2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
4,439 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 2850 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0612EHD-AF00FAN AXIAL 60X20MM 12VDC WIRE |
4,784 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 35.2 CFM (0.986m³/min) | 0.484 in H2O (120.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 3.72 W | 6600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.124 lb (56.25 g) |
|
AFB0612VHD-AF00FAN AXIAL 60X20MM 12VDC WIRE |
2,605 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 29.1 CFM (0.815m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 2.28 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.124 lb (56.25 g) |
|
|
06023GA-12N-AL-00DC AXIAL FAN |
2,671 |
|
Datasheet |
|
06023GA | Box | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 23.00mm | 8.5 CFM (0.240m³/min) | 0.923 in H2O (230.0 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 41.0dB | 3.12 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
06023GA-24N-AL-00DC AXIAL FAN |
3,540 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
06023GA-12M-AT-00DC AXIAL FAN |
4,686 |
|
Datasheet |
|
06023GA | Box | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 23.00mm | 7.8 CFM (0.218m³/min) | 0.803 in H2O (200.0 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 37.0dB | 2.76 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8025BG-160-484FAN AXIAL 80X25.4MM 12VDC WIRE |
4,812 |
|
Datasheet |
|
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart | 48.4dB(A) | 6.72 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0702548H2B-2T2FAN 70X25MM 48VDC MOLEX 22-01-10 |
2,006 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 6.24 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802548J2B-3T3FAN 80X25MM 48VDC TACH MOLEX 22- |
2,587 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 7.2 W | 3500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

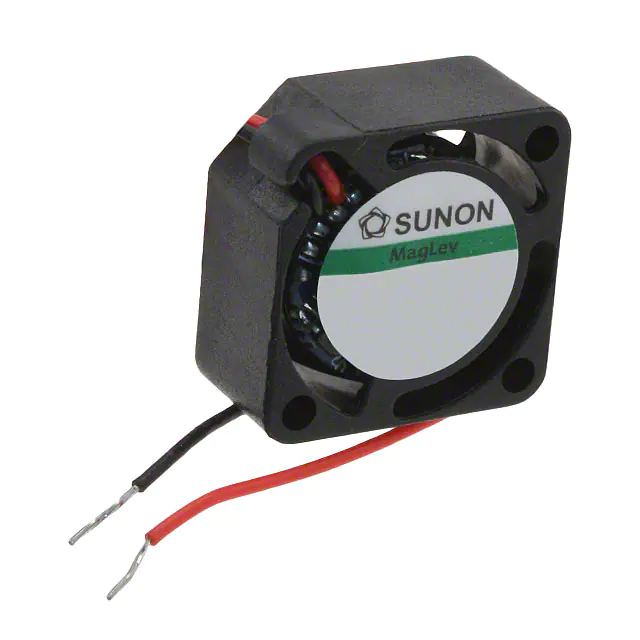

GM0517PDV2-8.GNFAN AXIAL 17X8MM VAPO 5VDC WIRE |
4,919 |
|
Datasheet |
|
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.706 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 16.0dB(A) | 600 mW | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.009 lb (4.08 g) |
|
|
DC0301005H2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
2,836 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 350 mW | 9000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0301005L2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
3,422 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 17.0dB(A) | 150 mW | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0301005M2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
3,601 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 250 mW | 7500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
AFB0812HHD-AF00FAN AXIAL 80X20MM 12VDC WIRE |
2,740 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 55.9 CFM (1.57m³/min) | 0.311 in H2O (77.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 3.84 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
|
AFB0812MD-AF00FAN AXIAL 80X20MM 12VDC WIRE |
3,896 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 41.7 CFM (1.17m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
AFB0712LB-F00FAN AXIAL 70X15MM 12VDC WIRE |
3,262 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.5dB(A) | 960 mW | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
MF40060V1-1000U-Q995VDC FAN 40X6MM ALARM/PWM |
2,619 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 29.3dB(A) | 0.44 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
