DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

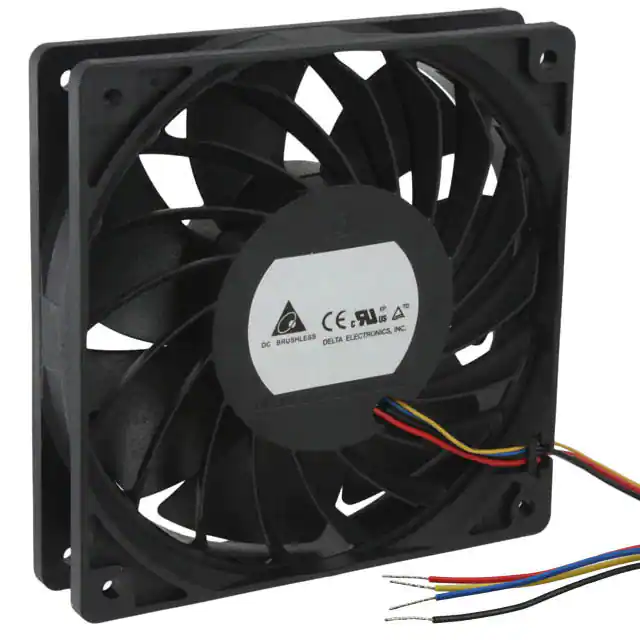

THB1224BFAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
4,115 |
|
Datasheet |
 |
THB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 174.7 CFM (4.89m³/min) | 2.139 in H2O (532.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 22.8 W | 8300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|
GFC0812DW-F00FAN AXIAL DUAL 80X76MM 12VDC Delta Electronics |
4,600 |
|
Datasheet |
|
GFC | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 76.00mm | 160.2 CFM (4.49m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.2dB(A) | 66 W | 9200 Front, 9600 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.851 lb (386.01 g) |
|
GFB1212VHW-TP05FAN AXIAL DUAL 120X76.2MM 12VDC Delta Electronics |
4,707 |
|
Datasheet |
|
GFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.20mm | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 20.4 W | 3550 Front, 3200 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
GFB0812DHU-F00FAN AXIAL DUAL 80X89MM 12VDC Delta Electronics |
2,790 |
|
Datasheet |
|
GFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 89.00mm | 144.6 CFM (4.05m³/min) | 3.800 in H2O (946.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 73.5dB(A) | 58.8 W | 9200 Front, 9480 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|

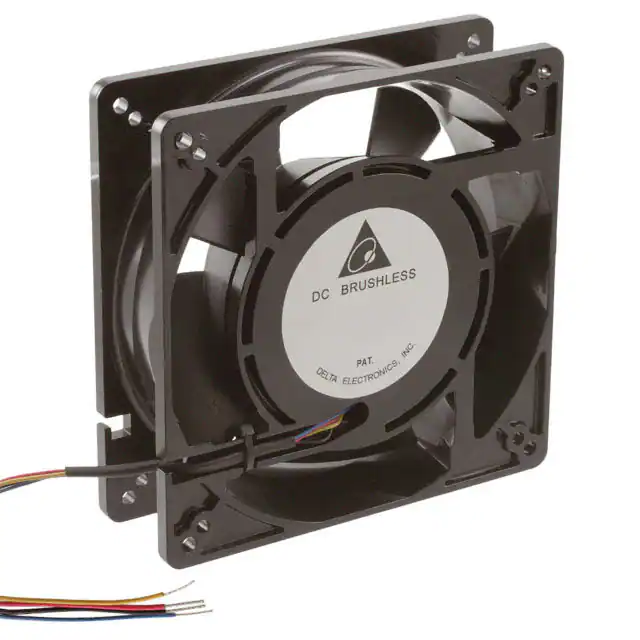

TDA1348AEFAN AXIAL 127X38MM 48VDC WIRE Delta Electronics |
4,279 |
|
Datasheet |
|
TDA | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | 1.311 in H2O (326.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.5dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.772 lb (350.17 g) |
|
AFB1512HFAN AXIAL 172X25.4MM 12VDC WIRE Delta Electronics |
4,689 |
|
Datasheet |
|
AFB | - | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 202.5 CFM (5.67m³/min) | 0.467 in H2O (116.3 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 11.76 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
AFB1524LFAN AXIAL 172X25.4MM 24VDC WIRE Delta Electronics |
2,901 |
|
Datasheet |
|
AFB | - | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.44 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
THB1248B-AFAN AXIAL 120X25.4MM 48VDC WIRE Delta Electronics |
3,678 |
|
Datasheet |
|
THB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 186.6 CFM (5.22m³/min) | 0.962 in H2O (239.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|
THD0948HE-AXHHFAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
3,854 |
|
Datasheet |
|
THD - Bionic Blade | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 182.4 CFM (5.11m³/min) | 3.435 in H2O (855.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 52.8 W | 13500 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | 0.477 lb (216.36 g) |
|
PFB1248UHE-TP38FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
4,795 |
|
- |
|
PFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 268.3 CFM (7.51m³/min) | 1.262 in H2O (314.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 48 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
