DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB1212GHE-T50FFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,077 |
|
Datasheet |
 |
PFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 32.4 W | 4800 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|

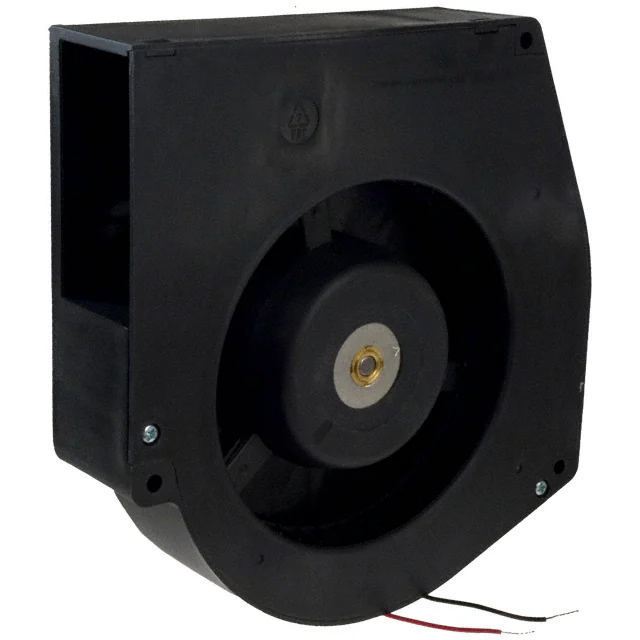

BFB1624HFAN BLOWER 159X40MM 24VDC WIRE Delta Electronics |
4,624 |
|
Datasheet |
|
BFB | Tray | Active | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 40.00mm | 61.8 CFM (1.73m³/min) | 1.387 in H2O (345.5 Pa) | Ball | Blower | Locked Rotor Protection | 56.5dB(A) | 17.16 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|

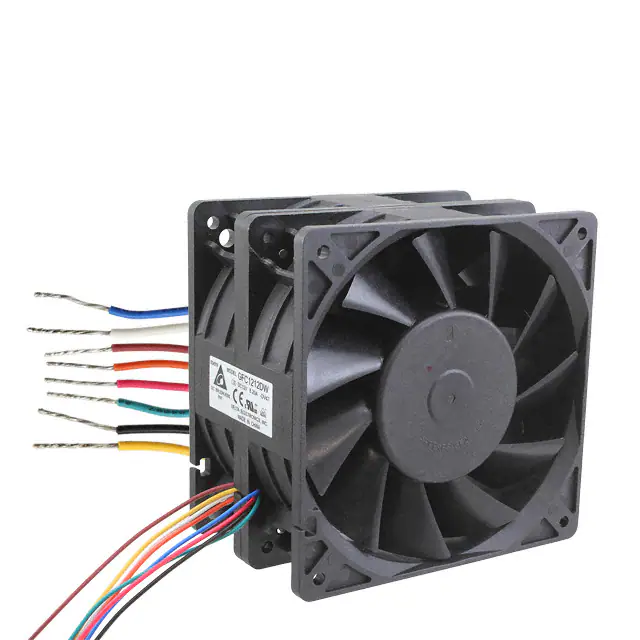

GFC1212DW-DV47FAN AXIAL DUAL 120X76MM 12VDC Delta Electronics |
4,437 |
|
Datasheet |
|
GFC | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.00mm | 293.6 CFM (8.22m³/min) | 1.441 in H2O (358.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 72 W | 5300 Front, 3950 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 1.7 lbs (780.0 g) |
|

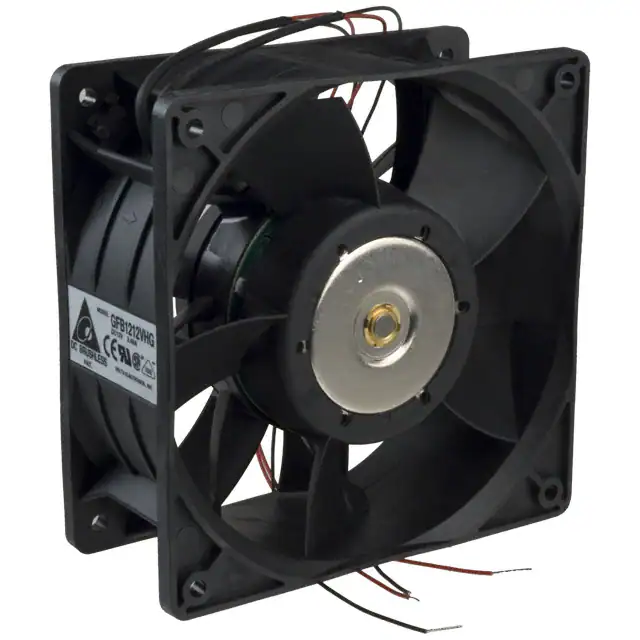

GFB1212VHGFAN AXIAL DUAL 120X50.8MM 12VDC Delta Electronics |
2,581 |
|
Datasheet |
|
GFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 50.80mm | 184.4 CFM (5.16m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 65.0dB(A) | 33.84 W | 3400 Front, 3100 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|

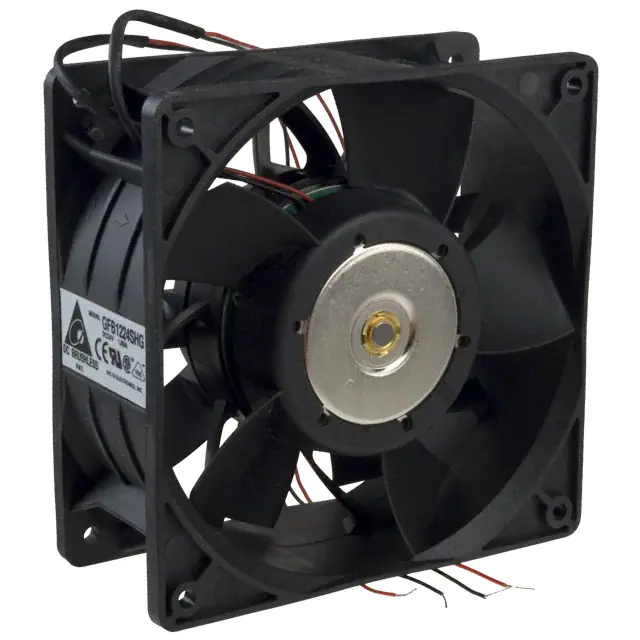

GFB1224SHGFAN AXIAL DUAL 120X50.8MM 24VDC Delta Electronics |
3,594 |
|
Datasheet |
|
GFB | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 50.80mm | 203.9 CFM (5.71m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 67.6dB(A) | 35.04 W | 3700 Front, 3400 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
GFB1212VHW-SP02FAN AXIAL DUAL 120X76.2MM 12VDC Delta Electronics |
3,977 |
|
Datasheet |
|
GFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.20mm | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 20.4 W | 3550 Front, 3200 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|

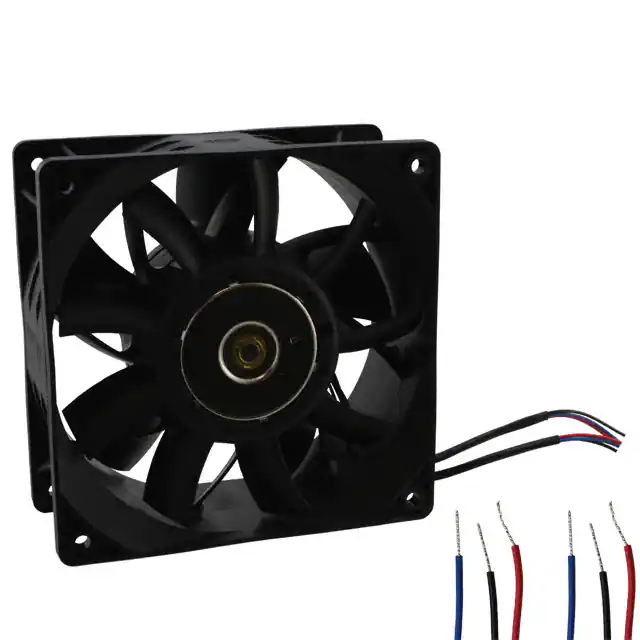

GFB1224SHG-F00FAN AXIAL DUAL 120X50.8MM 24VDC Delta Electronics |
3,410 |
|
Datasheet |
|
GFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 50.80mm | 203.9 CFM (5.71m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 67.6dB(A) | 35.04 W | 3700 Front, 3400 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|

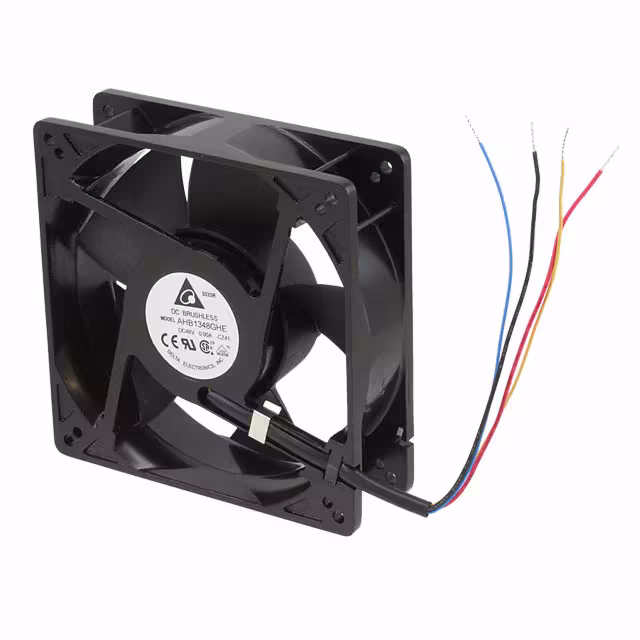

AHB1348GHE-CZ41FAN AXIAL 127X38MM 48VDC WIRE Delta Electronics |
4,782 |
|
Datasheet |
|
AHB | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 255.8 CFM (7.16m³/min) | 1.448 in H2O (360.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 36 W | 5500 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
AFB1248SHEB8TFAN AXIAL 120X38MM 48VDC Delta Electronics |
3,604 |
|
Datasheet |
|
AFB | Bag | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | - | Tubeaxial | - | - | - | - | - | - | - | CE, CSA, UL, VDE | - |
|
|
BFB1624MFAN BLOWER 159X40MM 24VDC WIRE Delta Electronics |
3,396 |
|
Datasheet |
|
BFB | Tray | Obsolete | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 40.00mm | 55.1 CFM (1.54m³/min) | 1.102 in H2O (274.5 Pa) | Ball | Blower | Locked Rotor Protection | 54.5dB(A) | 13.44 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
