DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1024H-F00FAN BLOWER 97.2X33MM 24VDC WIRE Delta Electronics |
919 |
|
Datasheet |
 |
BFB | Tray | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 9.6 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
AFB1212HHE-F00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
1,419 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.52 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224HHE-T500FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,459 |
|
Datasheet |
|
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.2 W | 2900 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
PFB0612EHE-F00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
2,913 |
|
Datasheet |
|
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 7.56 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
AFB0912SH-TZUGFAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
324 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9 W | 4800 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
FFB0924EHE-T500FAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
256 |
|
Datasheet |
|
FFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 12 W | 4800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

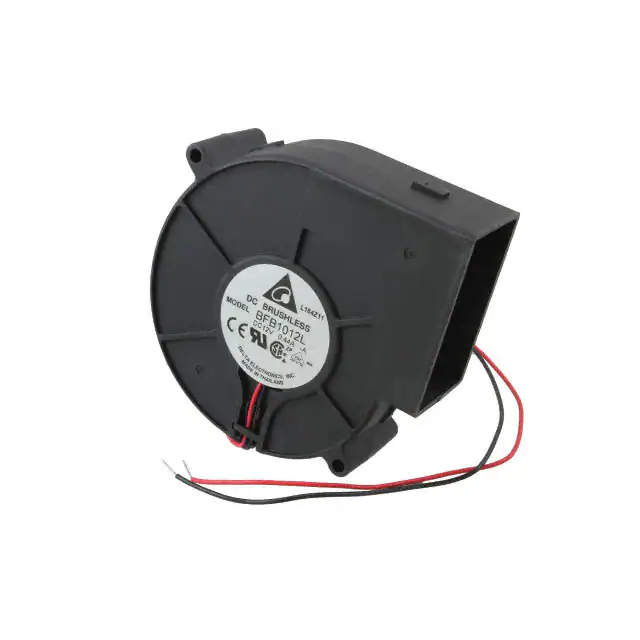

BFB1012L-AFAN BLOWER 97.8X33MM 12VDC WIRE Delta Electronics |
317 |
|
Datasheet |
|
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.8mm L x 95.5mm H | 33.00mm | 23.2 CFM (0.650m³/min) | 0.585 in H2O (145.7 Pa) | Ball | Blower | Locked Rotor Protection | 49.5dB(A) | 4.4 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|

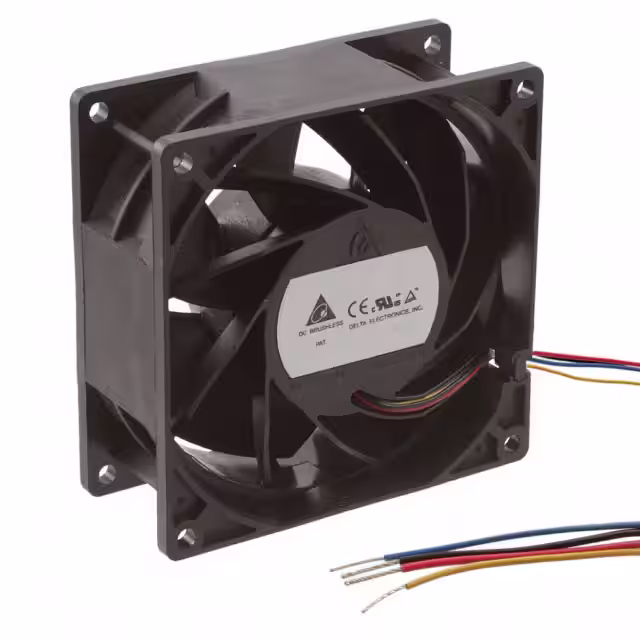

THB0948AEFAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
355 |
|
Datasheet |
|
THB | Box | Not For New Designs | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 162.5 CFM (4.55m³/min) | 3.354 in H2O (835.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 36.5 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.503 lb (228.16 g) |
|

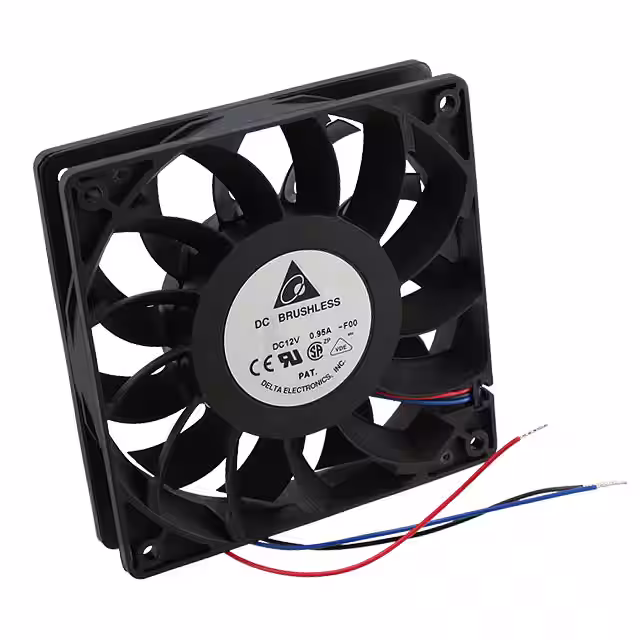

FFB1212VH-F00FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
107 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.9dB(A) | 9.48 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|

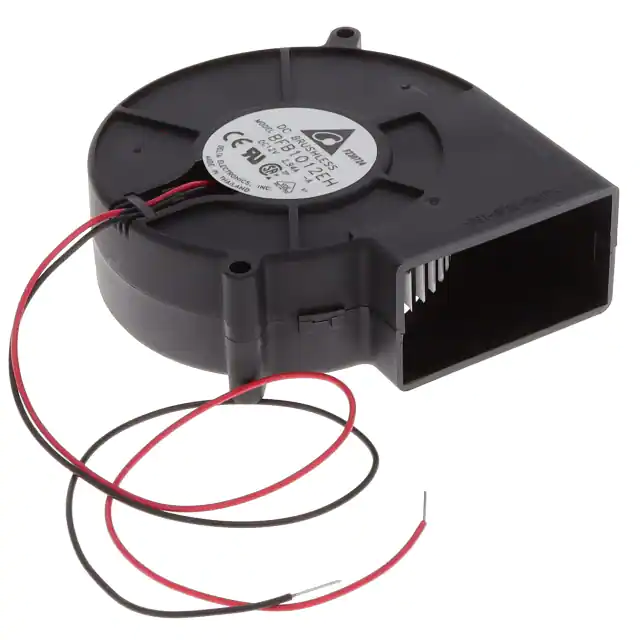

BFB1012EH-AFAN BLOWER 97.2X33MM 12VDC WIRE Delta Electronics |
116 |
|
Datasheet |
|
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 46.0 CFM (1.29m³/min) | 2.814 in H2O (701.0 Pa) | Ball | Blower | Locked Rotor Protection | 64.0dB(A) | 29.4 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
