DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

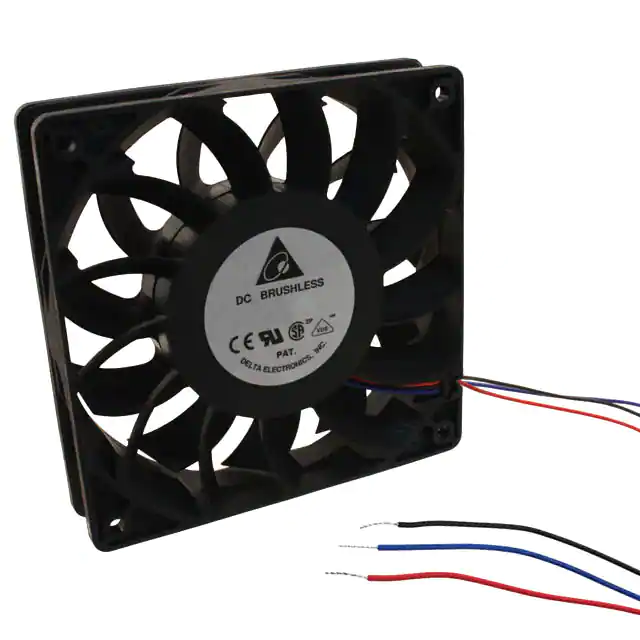

FFB1224EH-F00FAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
1,923 |
|
Datasheet |
 |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.4dB(A) | 15.12 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
FFB1224VHE-BR00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
177 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 13.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|

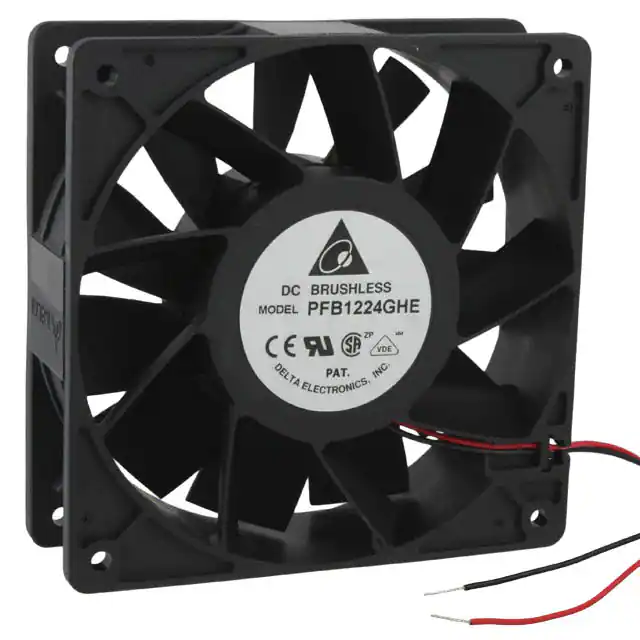

PFB1224GHE-T500FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,474 |
|
Datasheet |
|
PFB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 32.4 W | 4800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|

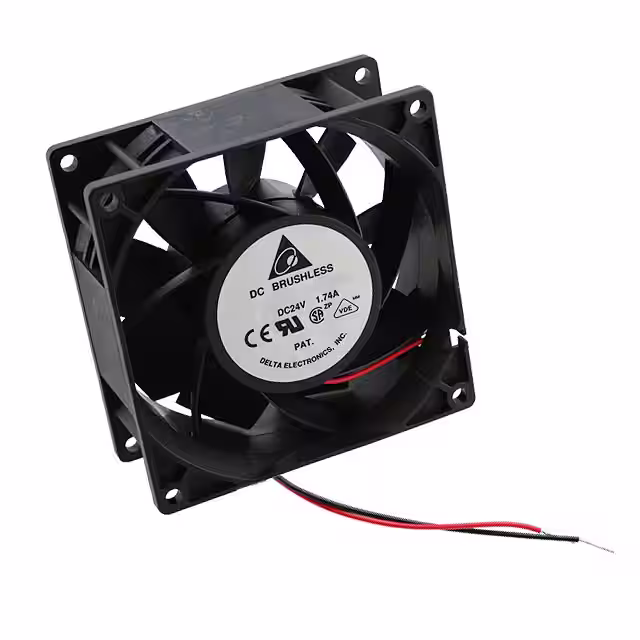

PFB0924DHEFAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
379 |
|
Datasheet |
|
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 34.8 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0948UHE-TP16FAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
2,127 |
|
Datasheet |
|
PFB | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 24.96 W | 7000 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

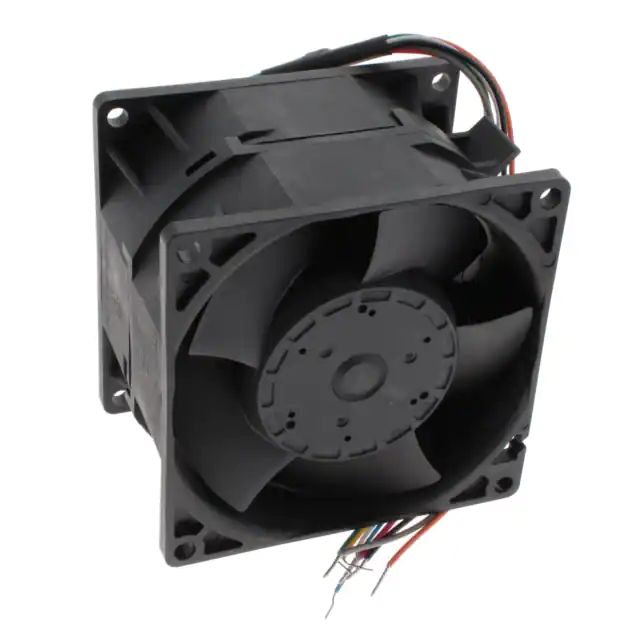

GFB0812ES-EFAN AXIAL DUAL 80X56MM 12VDC Delta Electronics |
119 |
|
Datasheet |
|
GFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 136.0 CFM (3.81m³/min) | 5.899 in H2O (1469.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 54 W | 16300 Front, 15500 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB1248UHEFAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
110 |
|
Datasheet |
|
PFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.311 in H2O (326.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 48 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
PFR0648SE-00EP3FAN AXIAL 60X38MM 48VDC WIRE Delta Electronics |
118 |
|
Datasheet |
|
PFR | Box | Not For New Designs | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 77.0 CFM (2.16m³/min) | 4.830 in H2O (1203.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 28.8 W | 19500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB0824DHE-T50FFAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
851 |
|
Datasheet |
|
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 32.4 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
PFB1212UHEFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
1,021 |
|
Datasheet |
|
PFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 48 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
