Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36501JR33JTDGFIXED IND 330NH 100MA 3.8OHM SMD TE Connectivity Passive Product |
125,531 |
|
Datasheet |
 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 330 nH | ±5% | 100 mA | - | Unshielded | 3.8Ohm Max | 25 @ 250MHz | 900MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

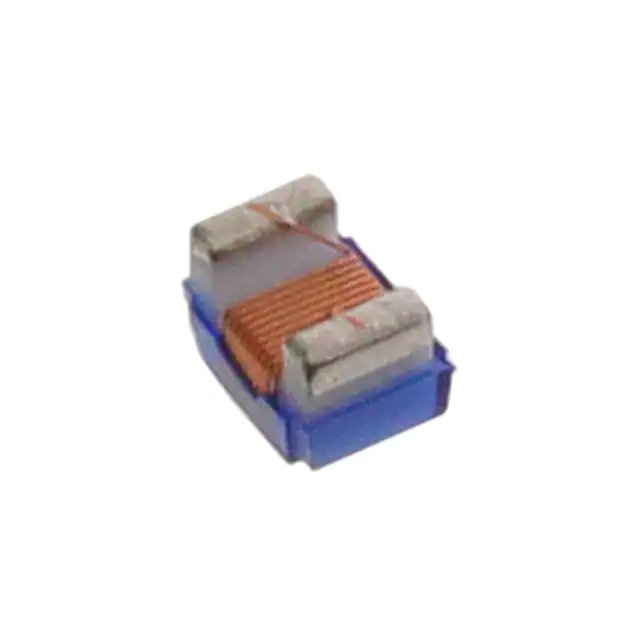

36502A91NJTDGFIXED IND 91NH 400MA 480MOHM SMD TE Connectivity Passive Product |
185,033 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 91 nH | ±5% | 400 mA | - | Unshielded | 480mOhm Max | 65 @ 500MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502A8N7JTDGFIXED IND 8.7NH 400MA 210MOHM SM TE Connectivity Passive Product |
148,572 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.7 nH | ±5% | 400 mA | - | Unshielded | 210mOhm Max | 50 @ 1GHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

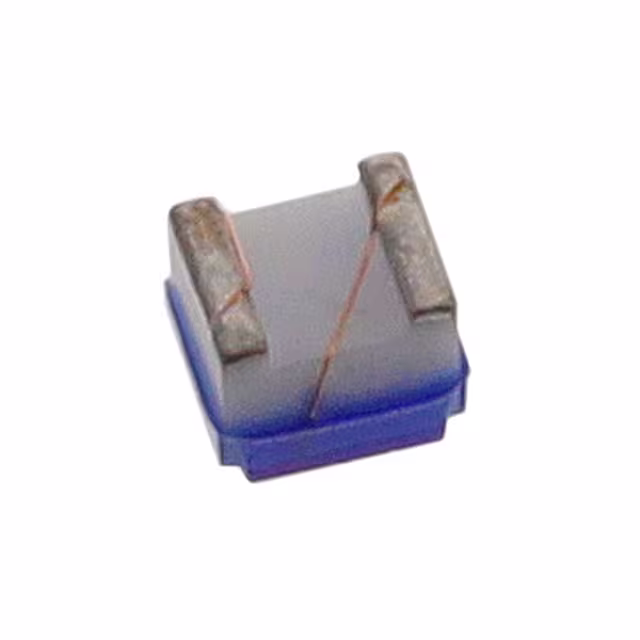

36502C5N6JTDGFIXED IND 5.6NH 1A 150 MOHM SMD TE Connectivity Passive Product |
187,761 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.6 nH | ±5% | 1 A | - | Unshielded | 150mOhm Max | 50 @ 1.5GHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

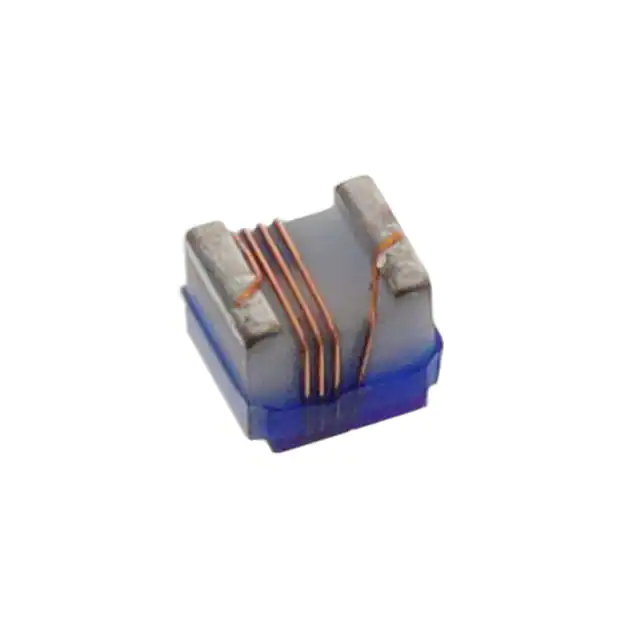

36502C39NJTDGFIXED IND 39NH 1A 150 MOHM SMD TE Connectivity Passive Product |
193,089 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 39 nH | ±5% | 1 A | - | Unshielded | 150mOhm Max | 60 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

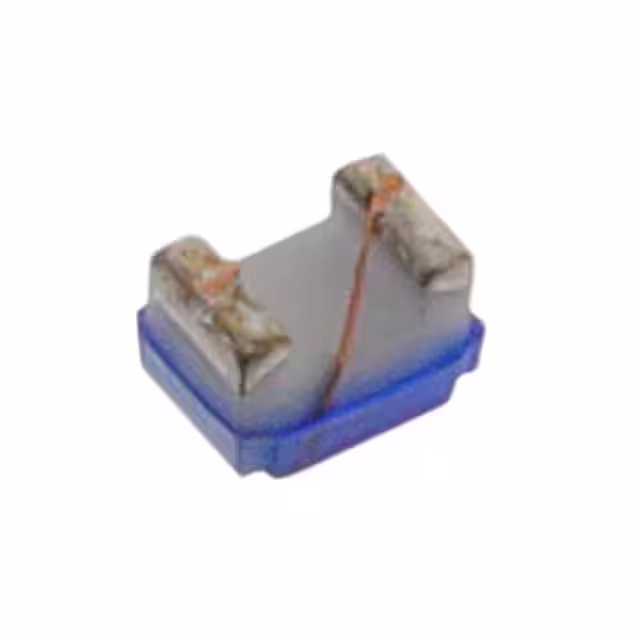

36502A3N0JTDGFIXED IND 3NH 800MA 60 MOHM SMD TE Connectivity Passive Product |
102,160 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3 nH | ±5% | 800 mA | - | Unshielded | 60mOhm Max | 65 @ 1.5GHz | 7.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
36502C75NJTDGFIXED IND 75NH 1A 210 MOHM SMD TE Connectivity Passive Product |
131,535 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 75 nH | ±5% | 1 A | - | Unshielded | 210mOhm Max | 60 @ 350MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

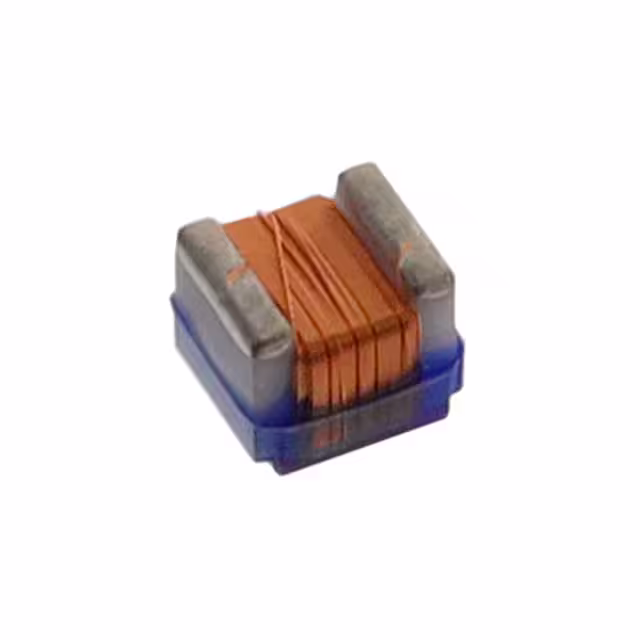

36502C153JTDGFIXED IND 15UH 120MA 11.5OHM SMD TE Connectivity Passive Product |
151,195 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 15 µH | ±5% | 120 mA | - | Unshielded | 11.5Ohm Max | 15 @ 7.96MHz | 15MHz | AEC-Q200 | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

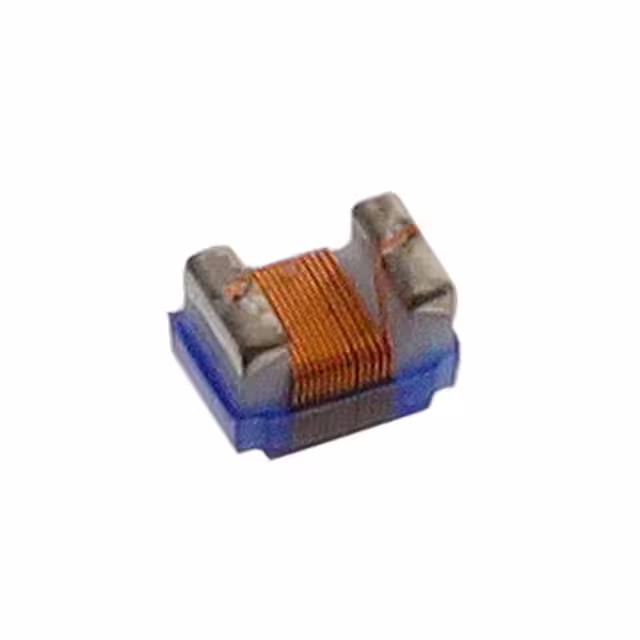

36502AR18JTDGFIXED IND 180NH 400MA 640MOHM SM TE Connectivity Passive Product |
161,370 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±5% | 400 mA | - | Unshielded | 640mOhm Max | 50 @ 250MHz | 870MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
36502C1R5JTDGFIXED IND 1.5UH 330MA 2.3OHM SMD TE Connectivity Passive Product |
153,266 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.5 µH | ±5% | 330 mA | - | Unshielded | 2.3Ohm Max | 28 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
