Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36502C22NJTDGFIXED IND 22NH 1A 120 MOHM SMD TE Connectivity Passive Product |
133,794 |
|
Datasheet |
 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 22 nH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 2.4GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502A68NJTDGFIXED IND 68NH 500MA 380MOHM SMD TE Connectivity Passive Product |
172,336 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 68 nH | ±5% | 500 mA | - | Unshielded | 380mOhm Max | 60 @ 500MHz | 1.45GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502C10NJTDGFIXED IND 10NH 1A 80 MOHM SMD TE Connectivity Passive Product |
160,295 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 50 @ 500MHz | 4.1GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J1N6JTDGFIXED IND 1.6NH 700MA 40MOHM SMD TE Connectivity Passive Product |
184,469 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.6 nH | ±5% | 700 mA | - | Unshielded | 40mOhm Max | 16 @ 250MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A2N8JTDGFIXED IND 2.8NH 800MA 60MOHM SMD TE Connectivity Passive Product |
141,460 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.8 nH | ±5% | 800 mA | - | Unshielded | 60mOhm Max | 80 @ 1.5GHz | 7.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36501J4N3JTDGFIXED IND 4.3NH 700MA 63MOHM SMD TE Connectivity Passive Product |
153,894 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 63mOhm Max | 22 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

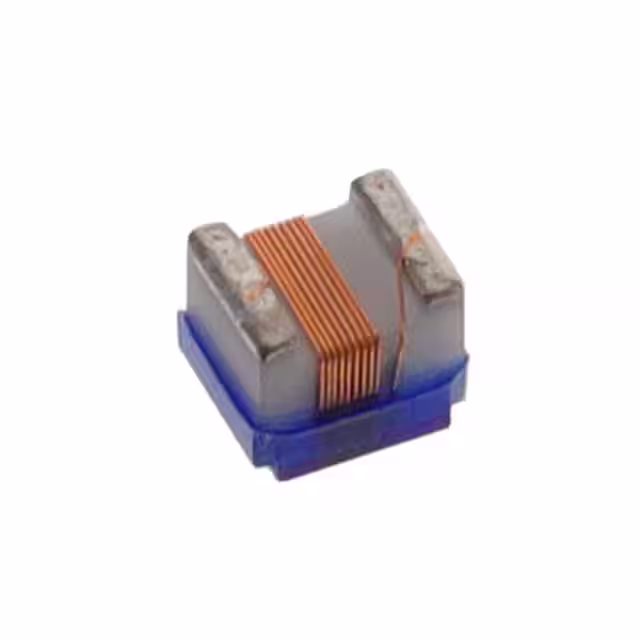

36502CR22JTDGFIXED IND 220NH 500MA 840MOHM SM TE Connectivity Passive Product |
145,087 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | 500 mA | - | Unshielded | 840mOhm Max | 45 @ 100MHz | 700MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

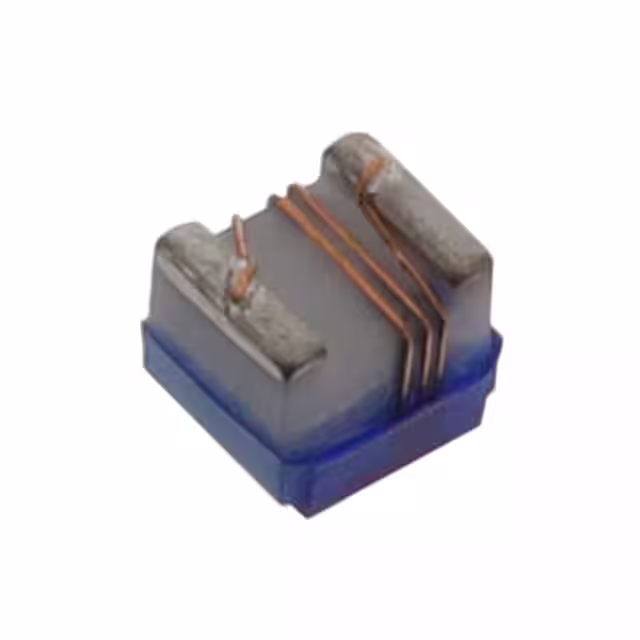

36502C24NJTDGFIXED IND 24NH 1A 120 MOHM SMD TE Connectivity Passive Product |
163,754 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 24 nH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502C68NJTDGFIXED IND 68NH 1A 200 MOHM SMD TE Connectivity Passive Product |
183,509 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 68 nH | ±5% | 1 A | - | Unshielded | 200mOhm Max | 65 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J72NJTDGFIXED IND 72NH 400MA 490MOHM SMD TE Connectivity Passive Product |
126,279 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 72 nH | ±5% | 400 mA | - | Unshielded | 490mOhm Max | 34 @ 250MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
