Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36502CR30JTDGFIXED IND 300NH 450MA 1 OHM SMD TE Connectivity Passive Product |
151,305 |
|
Datasheet |
 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 300 nH | ±5% | 450 mA | - | Unshielded | 1Ohm Max | 45 @ 100MHz | 585MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

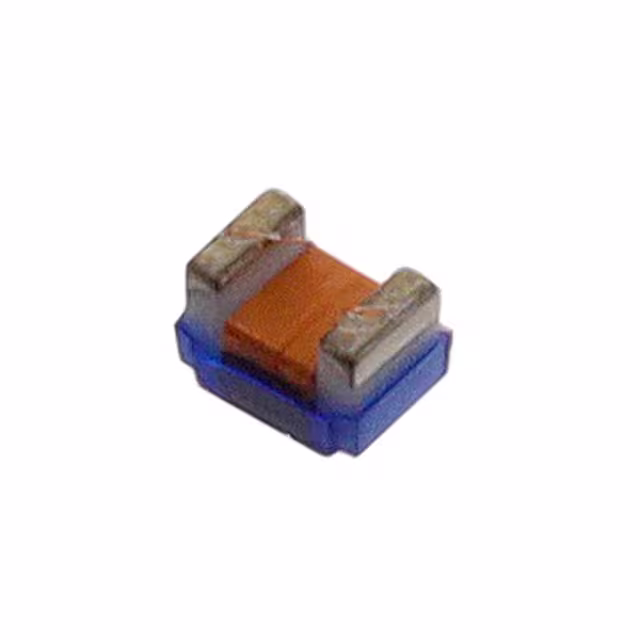

36502AR43JTDGFIXED IND 430NH 230MA 1.7OHM SMD TE Connectivity Passive Product |
109,863 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 430 nH | ±5% | 230 mA | - | Unshielded | 1.7Ohm Max | 33 @ 100MHz | 430MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

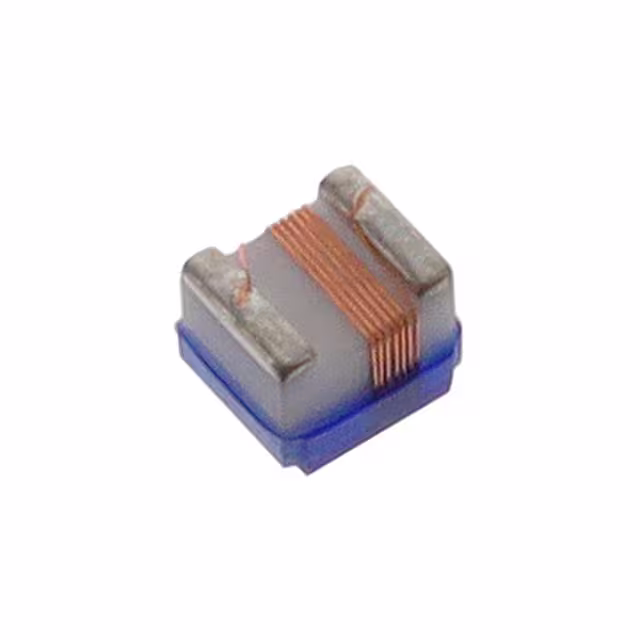

36502CR12JTDGFIXED IND 120NH 650MA 630MOHM SM TE Connectivity Passive Product |
195,401 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±5% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J5N1JTDGFIXED IND 5.1NH 700MA 160MOHM SM TE Connectivity Passive Product |
150,859 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.1 nH | ±5% | 700 mA | - | Unshielded | 160mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36501J3N9JTDGFIXED IND 3.9NH 700MA 80MOHM SMD TE Connectivity Passive Product |
112,060 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 nH | ±5% | 700 mA | - | Unshielded | 80mOhm Max | 22 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36501J24NJTDGFIXED IND 24NH 700MA 130MOHM SMD TE Connectivity Passive Product |
107,725 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 24 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 36 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

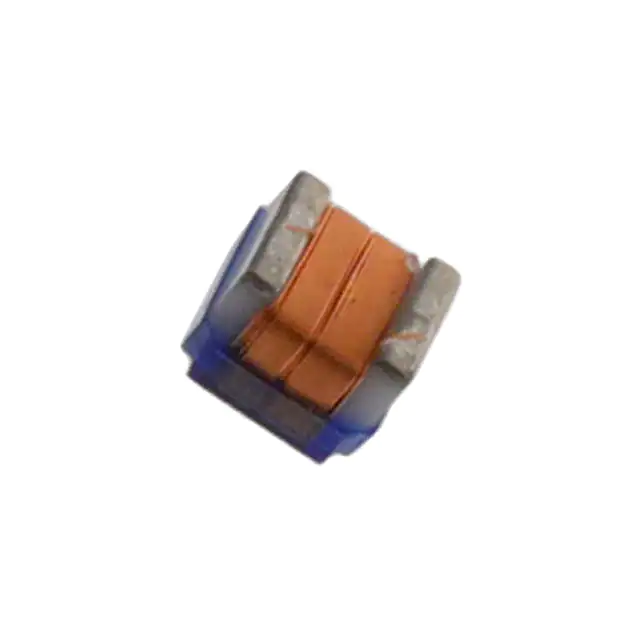

36502C123JTDGFIXED IND 12UH 130MA 10.5OHM SMD TE Connectivity Passive Product |
102,443 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 µH | ±5% | 130 mA | - | Unshielded | 10.5Ohm Max | 15 @ 7.96MHz | 18MHz | AEC-Q200 | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502A8N2JTDGFIXED IND 8.2NH 600MA 120MOHM SM TE Connectivity Passive Product |
137,871 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 50 @ 1GHz | 4.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

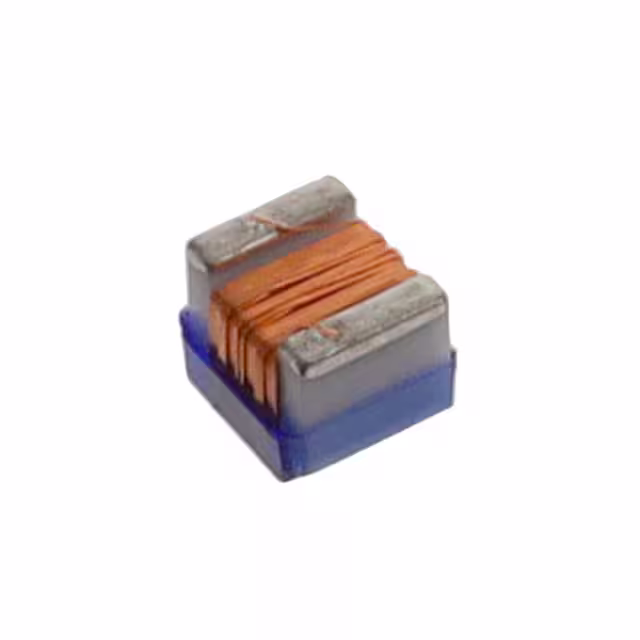

36502C1R8JTDGFIXED IND 1.8UH 300MA 2.6OHM SMD TE Connectivity Passive Product |
122,237 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.8 µH | ±5% | 300 mA | - | Unshielded | 2.6Ohm Max | 28 @ 50MHz | 160MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502A82NJTDGFIXED IND 82NH 400MA 420MOHM SMD TE Connectivity Passive Product |
197,573 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 65 @ 500MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
