Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature

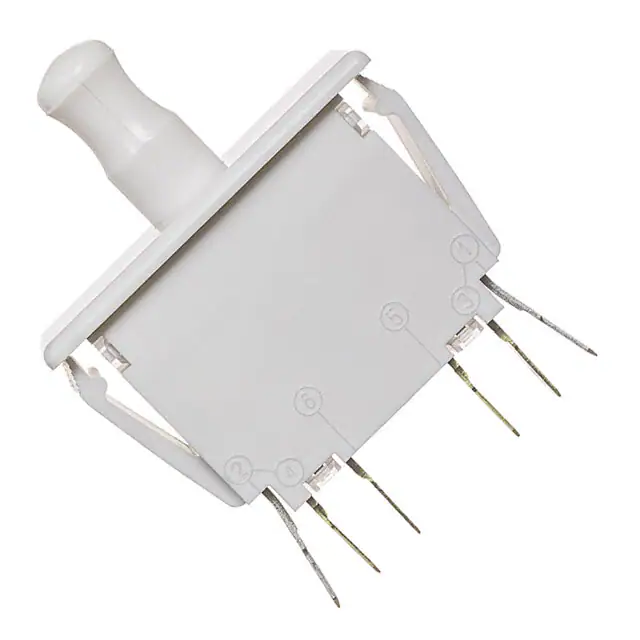

DS2D6CQ2 SWITCH SNAP ACTION DPDT 10A 125V C&K	29	-	RFQ	Datasheet	DS	Bulk	Active	DPDT	On-Mom	10A (AC)	125 V	-	Push-Pull Plunger	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	Pull On Lock	560gf	-	0.660" (16.76mm)	-	-	0.520" (13.2mm)	-40°C ~ 85°C
D2MC-5H SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	38	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.102gfm	0.013gfm	-	21°	3°	17°	-25°C ~ 80°C

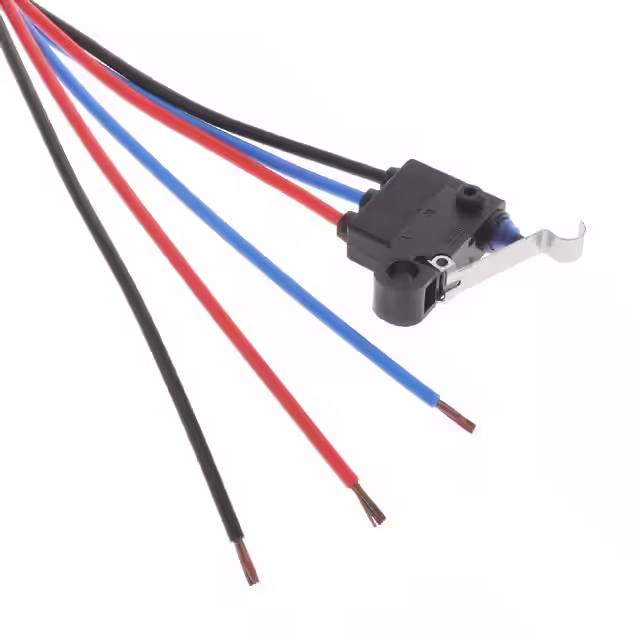

D2HW-C231M SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	17	-	RFQ	Datasheet	D2HW	Bulk	Active	SPDT	On-Mom	100mA (AC), 2A (DC)	125 V	12 V	Lever, Simulated Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	66gf	5.099gf	0.440" (11.2mm)	-	0.020" (0.5mm)	0.075" (1.9mm)	-40°C ~ 85°C
Z-15GW21 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	8	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP00	-	160gf	28gf	0.748" (19.0mm)	-	0.040" (1.0mm)	0.079" (2.0mm)	-25°C ~ 80°C
D2FW-G071M(D) SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	28	-	RFQ	Datasheet	D2FW-G	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Leaf	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	250gf	30gf	0.453" (11.5mm)	-	0.040" (1.0mm)	0.040" (1.0mm)	-40°C ~ 85°C
D2FW-G281M(D) SWITCH SNAP ACTION SPDT 1A 30V Omron Electronics Inc-EMC Div	26	-	RFQ	Datasheet	D2FW-G	Bulk	Active	SPDT	On-Mom	1A (DC)	-	30 V	Lever, Leaf	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	60gf	0.472" (12.0mm)	-	0.040" (1.0mm)	0.040" (1.0mm)	-40°C ~ 85°C

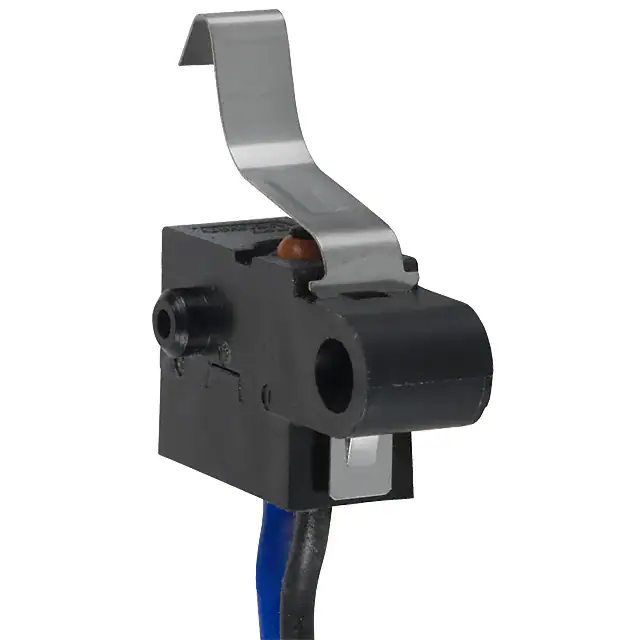

D2FW-G283M(D) SWITCH SNAP ACT SPST-NO 1A 30V Omron Electronics Inc-EMC Div	21	-	RFQ	Datasheet	D2FW-G	Bulk	Active	SPST-NO	Off-Mom	1A (DC)	-	30 V	Lever, Leaf	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	60gf	0.472" (12.0mm)	-	0.040" (1.0mm)	0.040" (1.0mm)	-40°C ~ 85°C

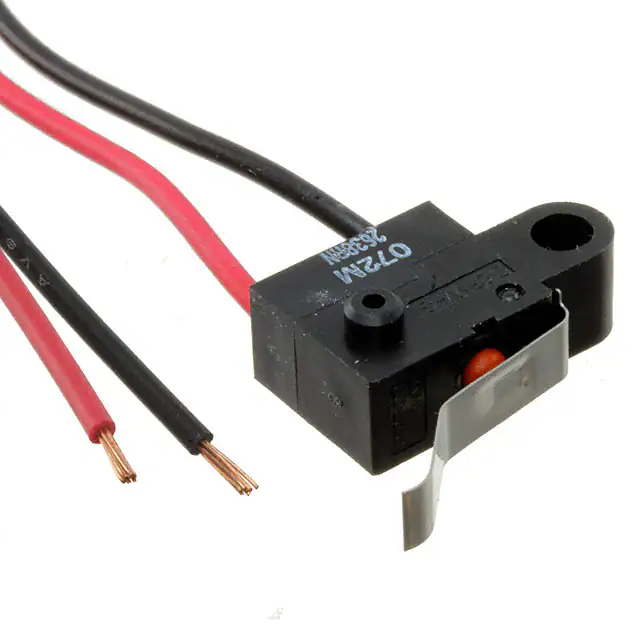

D2FW-G072M(D) SWITCH SNAP ACT SPST-NC 0.1A 30V Omron Electronics Inc-EMC Div	21	-	RFQ	Datasheet	D2FW-G	Tray	Active	SPST-NC	On-Mom	100mA (DC)	-	30 V	Lever, Leaf	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	250gf	30gf	0.453" (11.5mm)	-	0.040" (1.0mm)	0.040" (1.0mm)	-40°C ~ 85°C
D2RV-G SWITCH SNAP SPST-NO 0.25A 100V Omron Electronics Inc-EMC Div	34	-	RFQ	Datasheet	D2RV	Bulk	Active	SPST-NO	Off-Mom	250mA (DC)	-	100 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	-	0.567" (14.4mm)	0.063" (1.6mm)	0.031" (0.8mm)	0.025" (0.6mm)	-10°C ~ 60°C

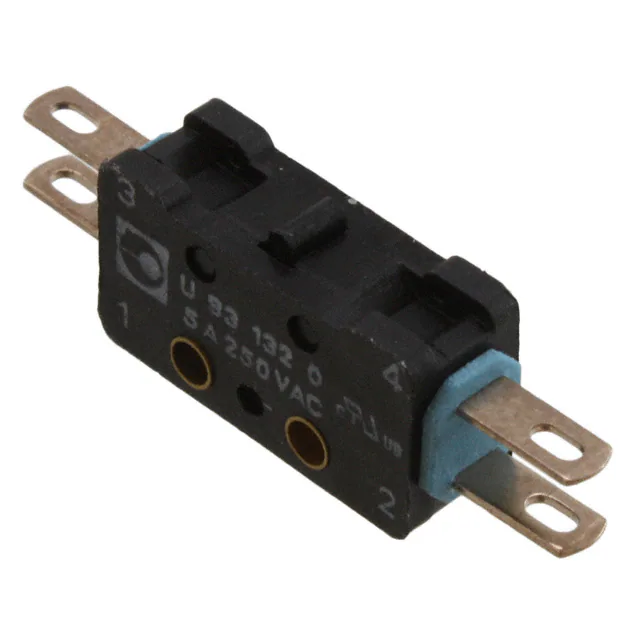

83132068 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	79	-	RFQ	Datasheet	83132	Bulk	Active	SPDT (DB/DM)	On-Mom	5A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	163gf	41gf	0.303" (7.7mm)	-	0.018" (0.45mm)	0.011" (0.3mm)	-20°C ~ 125°C
D2RV-L SWITCH SNAP SPST-NO 0.25A 100V Omron Electronics Inc-EMC Div	94	-	RFQ	Datasheet	D2RV	Bulk	Active	SPST-NO	Off-Mom	250mA (DC)	-	100 V	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	25gf	-	0.567" (14.4mm)	0.157" (4.0mm)	0.062" (1.6mm)	0.040" (1.0mm)	-10°C ~ 60°C
D2MC-5HL SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	50	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.102gfm	0.013gfm	-	21°	3°	17°	-25°C ~ 80°C
D2MC-5FL SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	34	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.076gfm	0.009gfm	-	21°	3°	17°	-25°C ~ 80°C

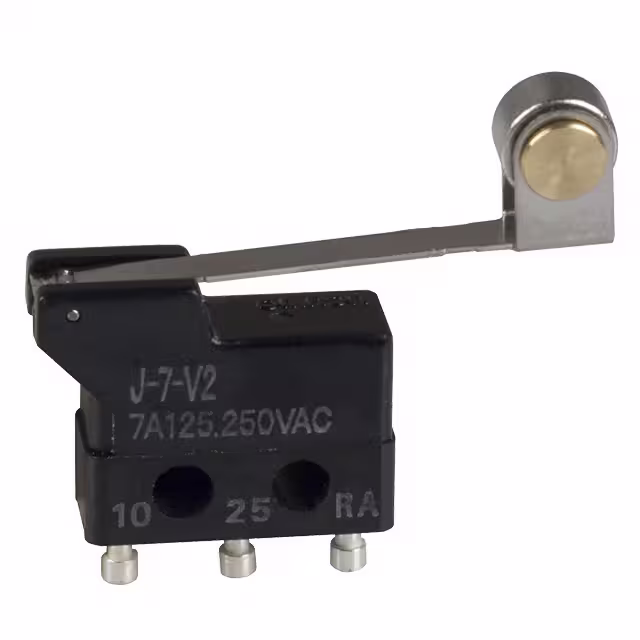

J-7-V2 SWITCH SNAP ACTION SPDT 7A 250V Omron Electronics Inc-EMC Div	20	-	RFQ	Datasheet	J	Tray	Active	SPDT	On-Mom	7A (AC)	250 V	-	Lever, Roller	Chassis Mount	Solder Turret	IP40	-	33gf	3.059gf	0.579" (14.7mm)	0.106" (2.7mm)	0.027" (0.7mm)	0.018" (0.45mm)	-10°C ~ 80°C
DS2D6CQ1 SWITCH SNAP ACTION DPDT 10A 125V C&K	56	-	RFQ	Datasheet	DS	Bulk	Active	DPDT	On-Mom	10A (AC)	125 V	-	Push-Pull Plunger	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	Pull On Lock	560gf	-	0.660" (16.76mm)	-	-	0.520" (13.2mm)	-40°C ~ 85°C
D2RV-L22 SWITCH SNAP SPST-NO 0.25A 100V Omron Electronics Inc-EMC Div	74	-	RFQ	Datasheet	D2RV	Bulk	Active	SPST-NO	Off-Mom	250mA (DC)	-	100 V	Lever, Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	-	0.803" (20.4mm)	0.071" (1.8mm)	0.040" (1.0mm)	0.015" (0.4mm)	-10°C ~ 60°C

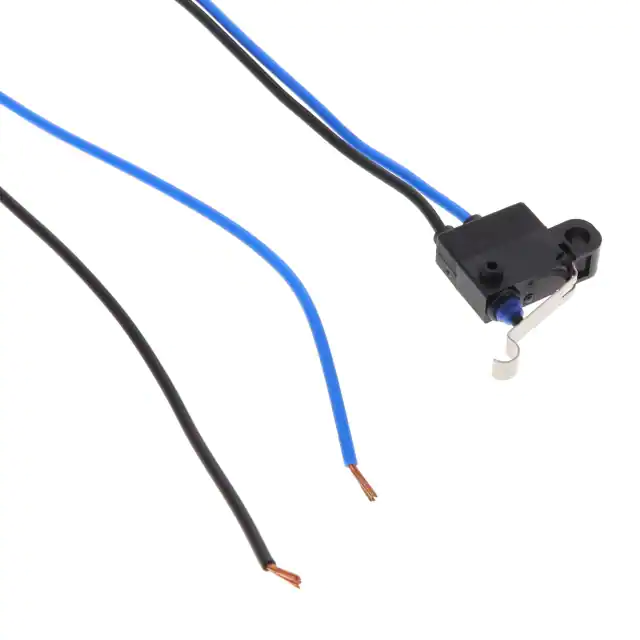

D2HW-C273M SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	9	-	RFQ	Datasheet	D2HW	Bulk	Active	SPST-NO	Off-Mom	100mA (AC), 2A (DC)	125 V	12 V	Lever, Simulated Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	183gf	20gf	0.425" (10.8mm)	-	0.020" (0.5mm)	0.079" (2.0mm)	-40°C ~ 85°C
D2VW-5L2A-3MS SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	10	-	RFQ	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	5A (AC/DC)	125 V	30 V	Lever, Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	230gf	20gf	0.815" (20.7mm)	0.063" (1.6mm)	0.020" (0.5mm)	0.030" (0.76mm)	-40°C ~ 85°C
D2VW-5-3MS SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	10	-	RFQ	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	5A (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	30gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-40°C ~ 85°C
Z-15GW22S SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	25	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Roller	Chassis Mount	Solder Lug	IP40	-	160gf	42gf	1.188" (30.2mm)	-	0.031" (0.8mm)	0.094" (2.4mm)	-25°C ~ 80°C
