Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
Z-15GW22-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	7	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Roller	Chassis Mount	Solder Lug	IP40	-	160gf	42gf	1.188" (30.2mm)	-	0.031" (0.8mm)	0.094" (2.4mm)	-25°C ~ 80°C
D2MC-01E SWITCH SNAP ACT SPDT 0.5A 125V Omron Electronics Inc-EMC Div	29	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	500mA (AC/DC)	125 V	30 V	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.051gfm	0.006gfm	-	21°	3°	17°	-25°C ~ 80°C
D2JW-01K11-MD SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	43	-	RFQ	Datasheet	D2JW	Tray	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Straight	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	82gf	16gf	0.330" (8.4mm)	0.252" (6.4mm)	0.027" (0.7mm)	0.055" (1.4mm)	-40°C ~ 85°C

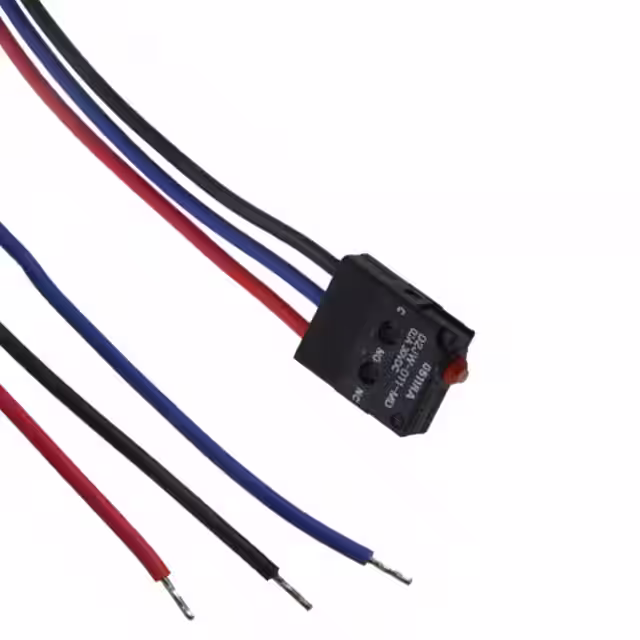

D2JW-011-MD SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	20	-	RFQ	Datasheet	D2JW	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Round (Pin Plunger)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	250gf	100gf	0.319" (8.1mm)	0.024" (0.6mm)	0.004" (0.1mm)	0.011" (0.3mm)	-40°C ~ 85°C
Z-15GW SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	7	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP00	-	70gf	14gf	0.748" (19.0mm)	-	0.050" (1.3mm)	0.219" (5.6mm)	-25°C ~ 80°C
Z-15GS-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	11	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	IP00	-	250 ~ 350gf	114gf	1.110" (28.2mm)	0.015" (0.4mm)	0.002" (0.05mm)	0.062" (1.6mm)	-25°C ~ 80°C

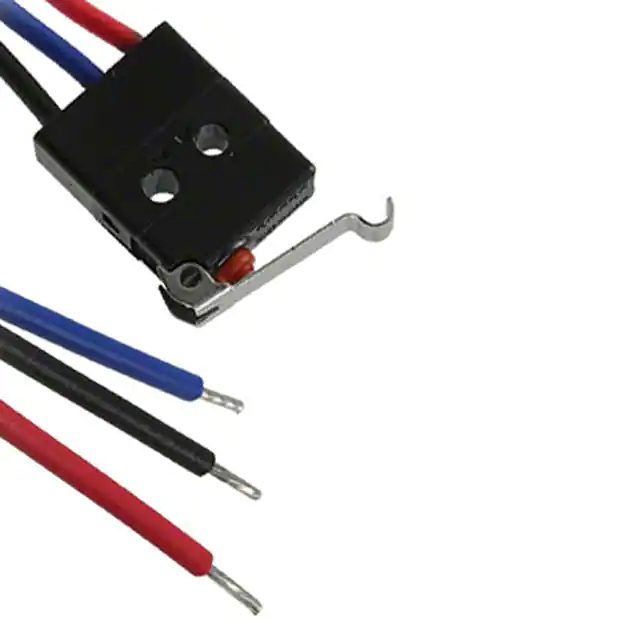

D2JW-01K31-MD SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	31	-	RFQ	Datasheet	D2JW	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Simulated Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	97gf	20gf	0.406" (10.3mm)	0.218" (5.5mm)	0.025" (0.6mm)	0.045" (1.1mm)	-40°C ~ 85°C
D2VW-5L1A-1M SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	19	-	RFQ	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	20gf	0.600" (15.2mm)	0.063" (1.6mm)	0.020" (0.5mm)	0.030" (0.76mm)	-40°C ~ 85°C
D2VW-5K3-1MS SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	12	-	RFQ	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	30gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.039" (1.0mm)	-40°C ~ 85°C
D2MC-01HL SWITCH SNAP ACT SPDT 0.5A 125V Omron Electronics Inc-EMC Div	64	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	500mA (AC/DC)	125 V	30 V	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.102gfm	0.013gfm	-	21°	3°	17°	-25°C ~ 80°C
Z-15HW400 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	7	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP40	-	28gf	3.500gf	0.748" (19.0mm)	0.394" (10.0mm)	0.050" (1.3mm)	0.219" (5.6mm)	-25°C ~ 80°C

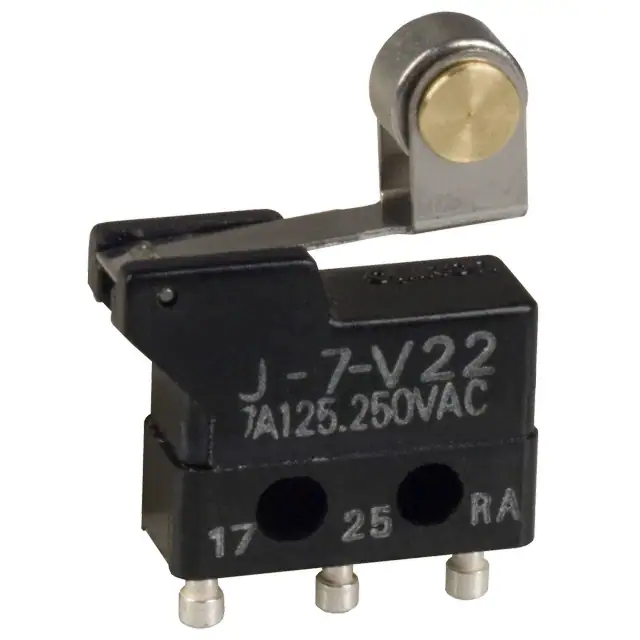

J-7-V22 SWITCH SNAP ACTION SPDT 7A 250V Omron Electronics Inc-EMC Div	54	-	RFQ	Datasheet	J	Tray	Active	SPDT	On-Mom	7A (AC)	250 V	-	Lever, Roller	Chassis Mount	Solder Turret	IP40	-	55gf	5.099gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.010" (0.25mm)	-10°C ~ 80°C
Z-15HW24 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	6	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 2A (DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP00	-	6.000gf	0.500gf	0.780" (19.8mm)	0.780" (19.8mm)	0.080" (2.0mm)	0.394" (10.0mm)	-25°C ~ 80°C
Z-15GQ SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	6	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Overtravel Plunger	Panel Mount	Solder Lug	IP00	-	250 ~ 350gf	114gf	0.859" (21.8mm)	0.015" (0.4mm)	0.002" (0.05mm)	0.217" (5.5mm)	-25°C ~ 80°C
D2VW-5L1B-1M SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	10	-	RFQ	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	5.099gf	0.600" (15.2mm)	0.354" (9.0mm)	0.080" (2.0mm)	0.125" (3.2mm)	-40°C ~ 85°C
A-20GV21-B SWITCH SNAP ACTION SPDT 20A 125V Omron Automation and Safety	9	-	RFQ	Datasheet	A	Bulk	Active	SPDT	On-Mom	20A (AC), 6A (DC)	125 V	30 V	Lever, Straight	Chassis Mount	Screw Terminal	IP00	-	160gf	42gf	0.748" (19.0mm)	0.256" (6.5mm)	0.047" (1.2mm)	0.047" (1.2mm)	-25°C ~ 80°C
Z-15GW2 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	19	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Roller	Chassis Mount	Solder Lug	IP00	-	100gf	22gf	1.188" (30.2mm)	-	0.040" (1.0mm)	0.158" (4.0mm)	-25°C ~ 80°C
Z-15H-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	9	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 2A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	IP00	-	200 ~ 280gf	114gf	0.625" (15.9mm)	0.012" (0.3mm)	0.001" (0.025mm)	0.005" (0.13mm)	-25°C ~ 80°C
Z-15GL2-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	80	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Roller	Chassis Mount	Screw Terminal	IP00	-	141gf	14gf	1.125" (28.6mm)	-	0.050" (1.3mm)	0.062" (1.6mm)	-25°C ~ 80°C
BZ-2RW84449-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	47	-	RFQ	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	15A (AC), 500mA (DC)	125 V	125 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	113gf	0.710" (18.0mm)	0.015" (0.4mm)	0.002" (0.05mm)	0.020" (0.5mm)	-55°C ~ 85°C
